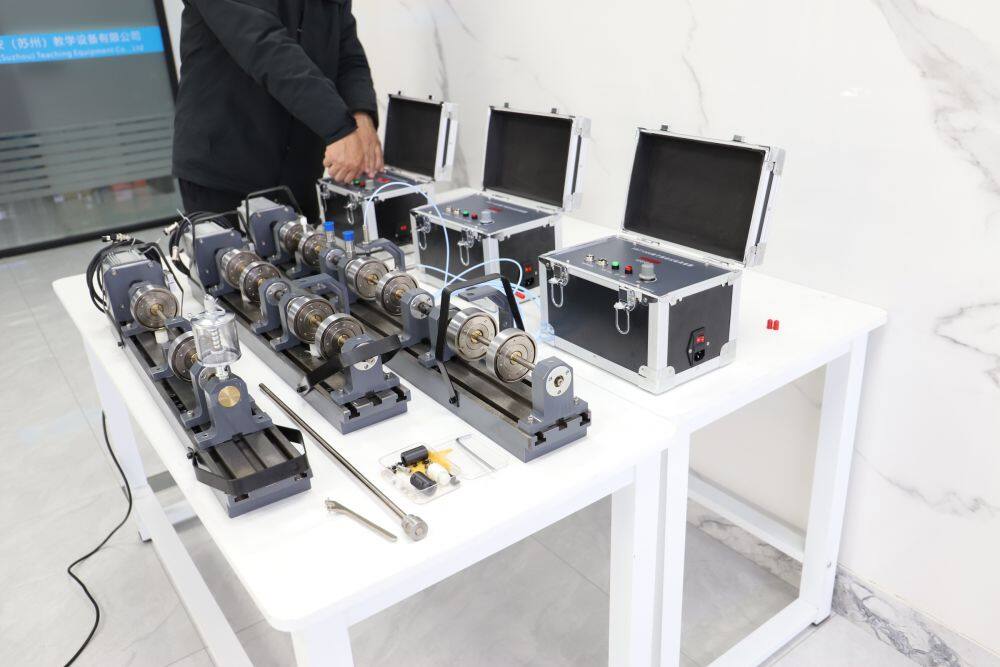

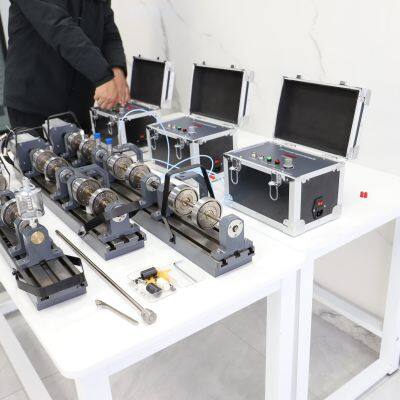

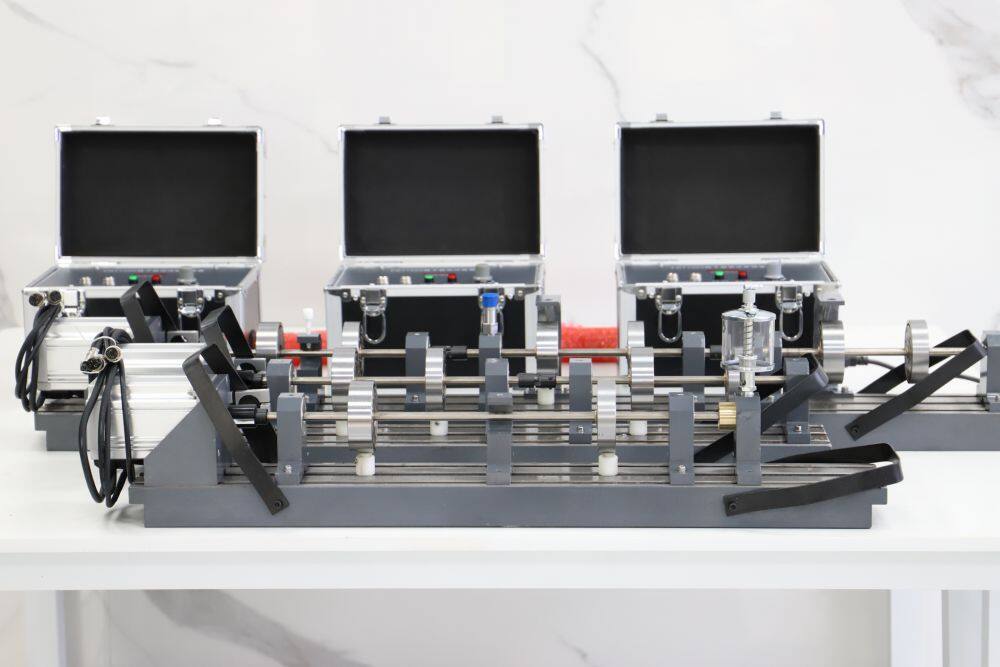

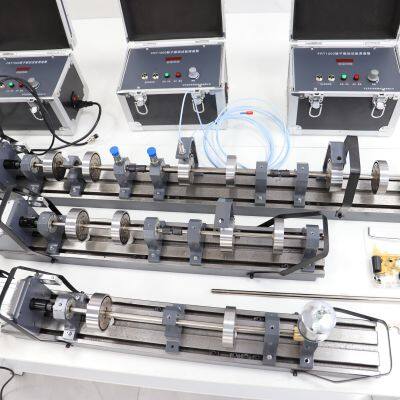

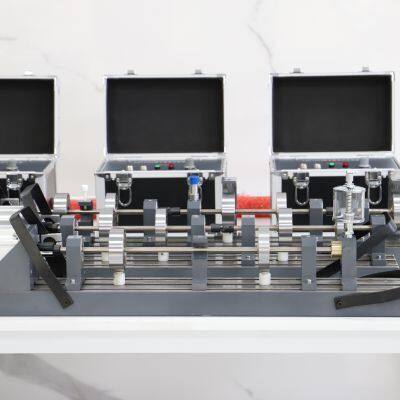

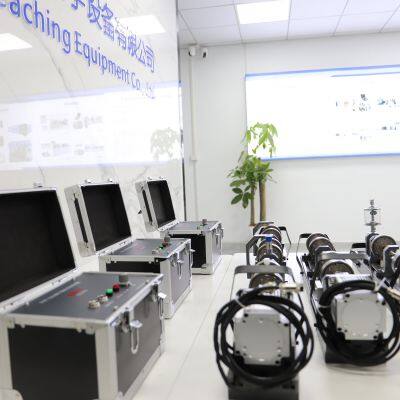

FRT1000 Rotor Dynamics Simulator

Product Description：

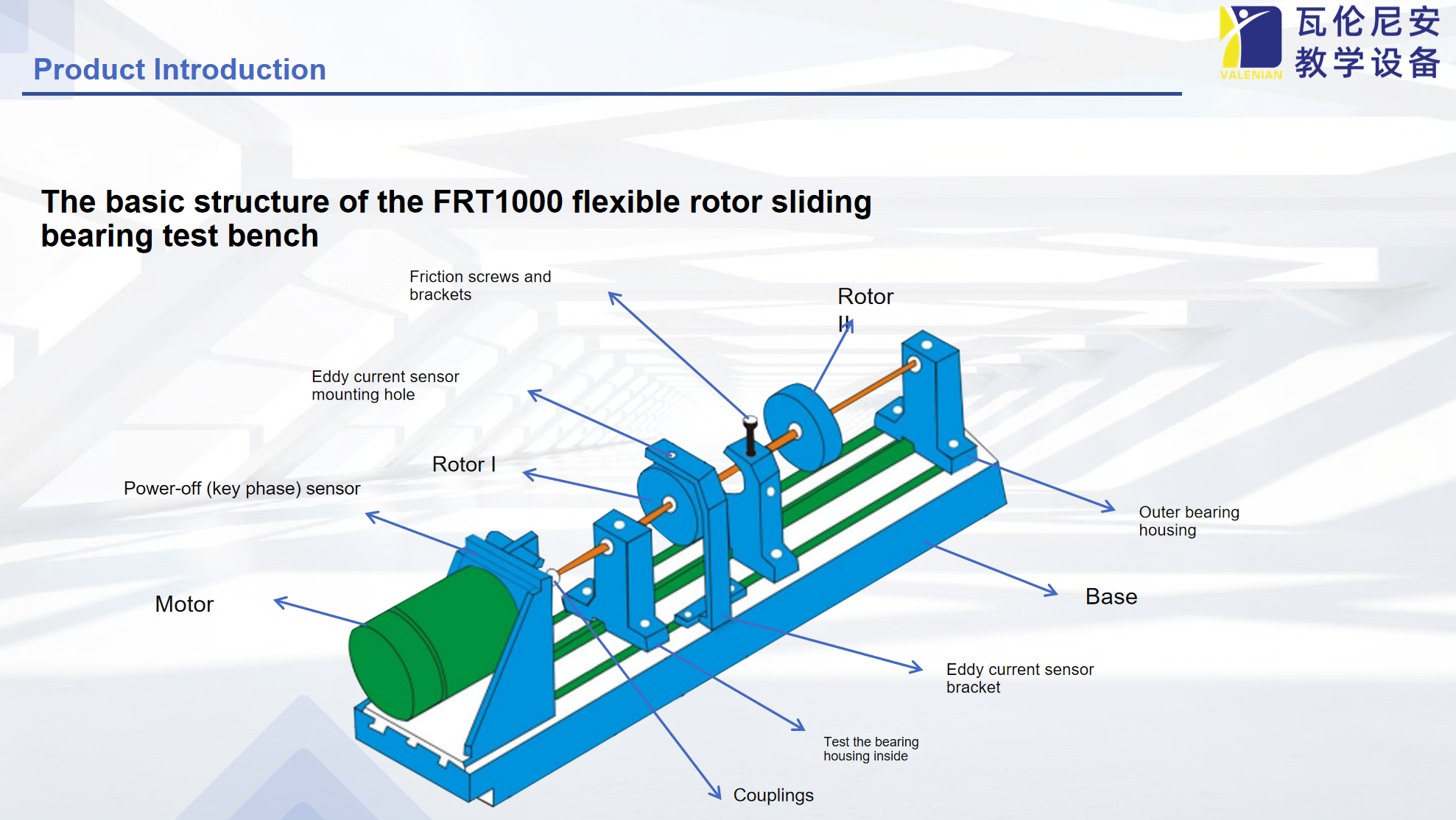

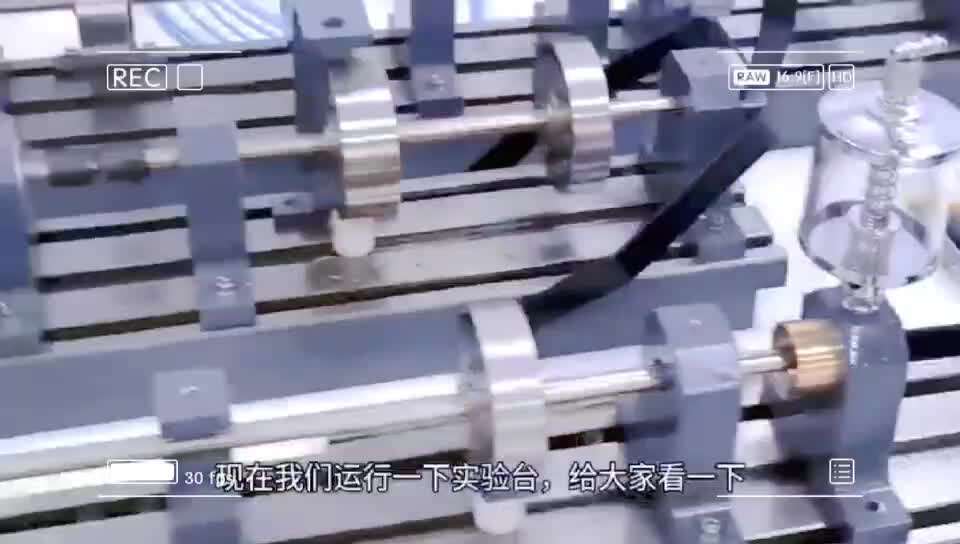

The VALENIAN-FRT1000  Rotating Machinery Training Simulator  is a testing device used to simulate the vibration of rotating machinery. It’s mainly used for laboratory verification of forced and self-excited vibration characteristics of flexible rotors.

Configuration：

Resonance test;

Unbalance simulation test;

Misalignment simulation test;

Shaft bump wear simulation test;

Non-contact eddy current displacement measurement test;

Oil film vorticity;

Oil film oscillation;

Shaft eccentricity fault test;

Start-stop test;

Critical speed measurement test.

Function：

- Rotational speed measurement;

- Non-contact measurement of radial vibration and axial displacement of the shaft;

- Measurement of bearing housing and table vibration;

- Test weights for single-sided, double-sided, multi-sided rotor dynamic balancing;

- Vibration monitoring;

- Time-domain analysis;

- Frequency-domain analysis;

- Bode Plot;

- Start-stop analysis;

- Trend analysis chart;

- Bar chart;

- Polar coordinate graph;

- Axis trajectory map;

- Axis centerline graph;

- A layering plot.

Basic Technical Parameters：
