·Test equipment function

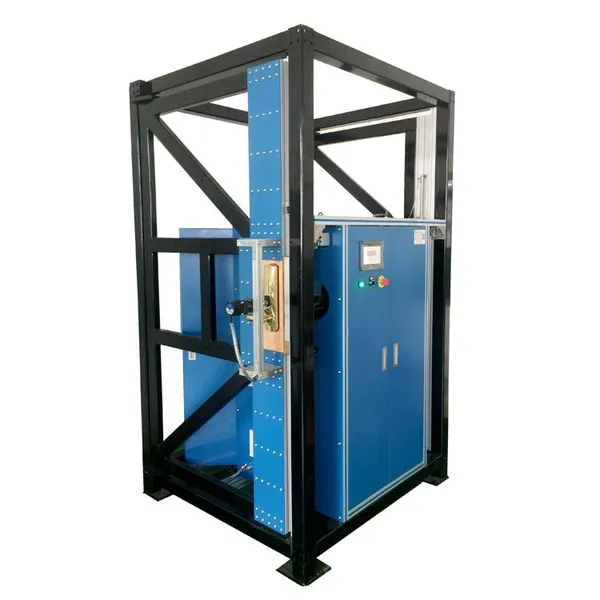

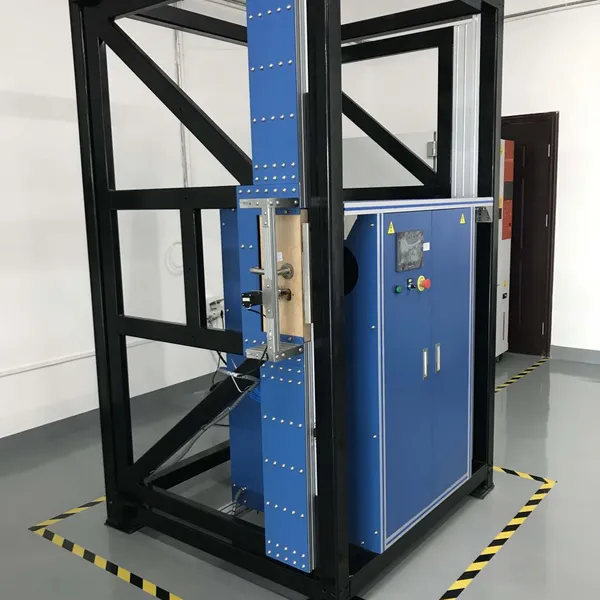

The equipment is designed to test operational and durability performance of mechanical locks according to European harmonized standards. A special loading and action device was equipped on this automatic machine to load the latch bolt during operating the lock follower. This lock handle is operated by air cylinder to provide high reliable performance. An motor was used to operate the key or turn in high repeatability and exact angle control. It is super added value facility to identify classification and quality of lock or find out any product defect.
Equipment parameters：
Model： ZNEN12209-2
Size：L 1.4 m * W 1.2 m * H 2.4 m
Test doors: Two test doors with steel frame with enough strength to support the door mass
Door handles cycle operation: operated by air cylinder. Door position is monitored by optical sensor. 10 Nm Maximum driving moment.
PLC: Panasonic ; Pneumatic parts: Airtac brand.
Frame: Steel frame, paint
Test door size: 2100mm * 1100mm
Test door mass: 60kg, User can easy increase to desired test door mass by stack steel plate, for examples 200kg if needed.
Key cycle operation: motor operation with precise angle control, 5 Nm maximum driving moment
The equipment meet with standards requirement of EN 12209: 2016
Latch loading: special designed adjustable mass load of 0, 10N, 25N, 50N, 120Napplied latch bolt when operate door handle or key to open the door.
