Door Handle Tension Strength Test Machine

Door Handle Tension Strength Test Machine thumbnail-1
Door Handle Tension Strength Test Machine thumbnail-2
Door Handle Tension Strength Test Machine thumbnail-3
Door Handle Tension Strength Test Machine thumbnail-4
Door Handle Tension Strength Test Machine thumbnail-5
Door Handle Tension Strength Test Machine photo-1
Door Handle Tension Strength Test Machine photo-2
Door Handle Tension Strength Test Machine photo-3
Door Handle Tension Strength Test Machine photo-4
Door Handle Tension Strength Test Machine photo-5
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Strength Testing Machine
Warranty:
One year
Weight:
0-100Kg
Contact Supplier Request Quote Chat Now
Guangzhou Zhijian Instruments Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
45 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Strength Testing Machine
Warranty One year
Weight 0-100Kg
Power Source AC220V
Accuracy Grade 0.5
Max Diameter of Workpiece >3200mm
Mass Scope of Workpiece >20000kg
Maxcapacity <1000KN
Load Way Electronic Load
Oil Cylinder Position Other
Control Computer Control
Loading Method Dynamic Load
Display Digital
Transport Package wooden box
Specification EN 1906
Trademark Zon-test
Origin China

Test equipment function：

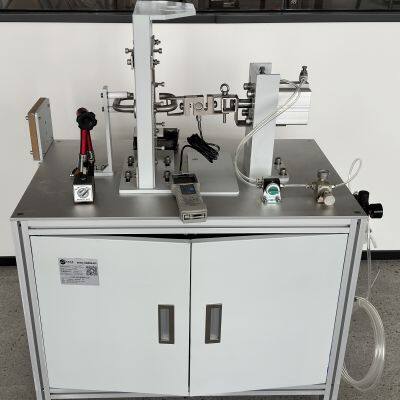

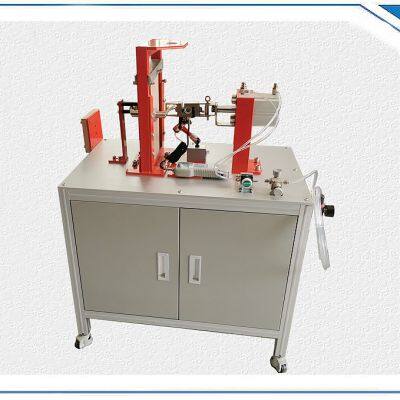

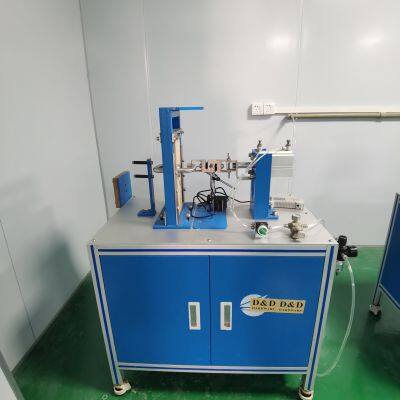

     The equipment has been carefully designed, integrated strength cylinder, pre-load cylinder, force display, convenient sample clamping, apply a variety of force values, for testing handle strength, deformation, horizontal direction, vertical direction clearance and other energy tests.

      The equipment is designed to perform Strength test of door handle, including torque resistance, pull loading and free play.

    Standards： EN 1906 Strengthy of mechanism


Equipment parameters：

Model：ZNEN1906-2

Size：L 1 m * W 0.8 m * H 1.4 m

Force gauge：0~3000N

Excluded torque meter

Bench：Standalone table with casters

Maximum load：2500N

Dial indicator：0~25mm

Standards： EN 1906 Strengthy of mechanism

Test items：EN 1906 clause 5.2, 5.3, 5.4, 5.5, 5.6, 5.7, 5.9, 5.10, 5.11, 5.12, 5.13, 5.3
