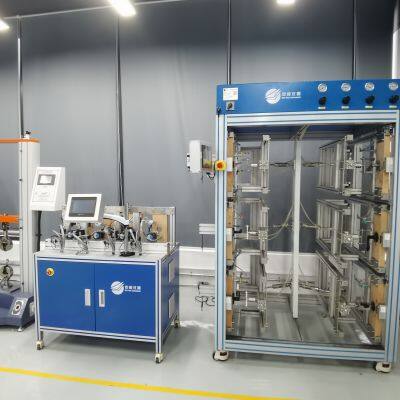

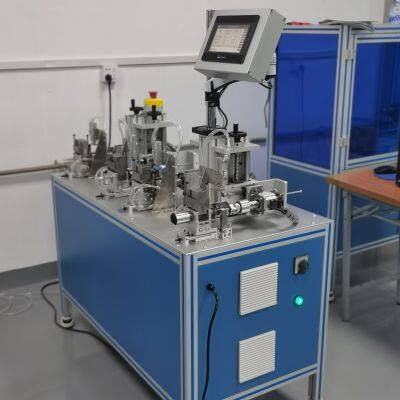

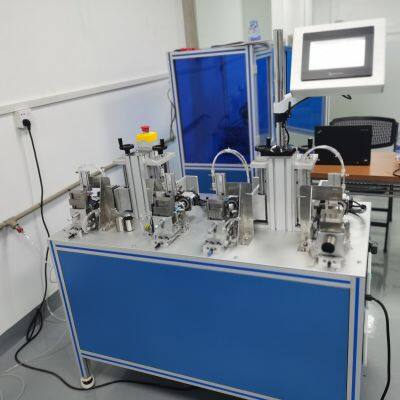

Help CenterBHMA Electronic Lock Life Test Machine
Related Products
Test equipment function：
The electronic lock life test is divided into two parts, electronic life test and mechanical life test. According to ANSI/BHMA A156.25 standard requirements, the device performs unlocking and locking actions through password input or remote control input to complete the life of the electronic drive portion. Input password, fingerprint or swipe card through XY axis mechanical arm, motor turn knob or handle unlock or lock, electronic lock life test, each station is equipped with XY axis slide table, you can independently set, enter password or press fingerprint, password can be set any number.
The device meets ANSI/BHMA A156.5 electronic lock input device (password, card, fingerprint) life test; The equipment meets ANSI/BHMA A156.25, ANSI/BHMA A156.36 electronic locking life test;
The device can be used for electromechanical combination life test of other electronic locks. It can be unlocked by password, card, fingerprint, knob, handle or lock (lock block is fixed, no opening and closing action).
Equipment parameters：
Model：ZNBHMA-4D
Size：L 0.8 m * W 0.6 m * H 1.3 m
PLC control: Panasonic, test scheme and parameter setting, fault monitoring and shutdown
Sensor: latch position sensing
Test station: 4 stations, 3 stations for mechanical life test, 1 station for password life test
Frame：stand-alone test stand
Knob operating Angle: adjustable, maximum 270 degrees
Password input: two-axis mechanical arm, finger cylinder input, you can set any password combination
PLC: Panasonic ; Pneumatic parts: Airtac brand.
Test standards： ANSI/BHMA A156.25, BHMA A156.36
