Help CenterFire Sensitivity Laboratory
Related Products
Device features:
The fire sensitivity laboratory is suitable for use in UL 217, UL268 and other standard fire test rooms, testing system room temperature sensor, furnace temperature sensor, data acquisition, computer and testing software.

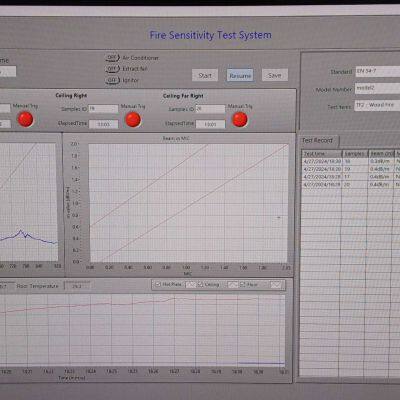

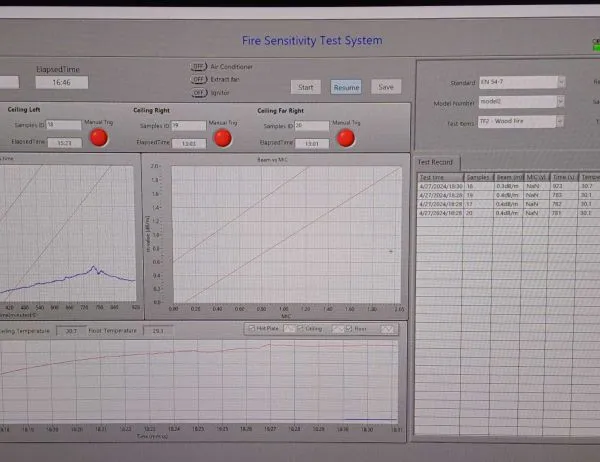

The test software can be connected to collect real-time test data such as optical smoke density meter, ion concentration meter, temperature and humidity sensor, record alarm values, and the software can select various material combustion test curves.
Equipment Parameters :
Model: ZNULFIR-1
Power supply: 220VAC power: 1Kw
Applicable standards: UL 217, UL 268
Standard Components:
Four-way photocell sensor
Acquisition of four MIC signals (MIC ion concentration meter sold separately)
Controller cabinets
A carbon monoxide gas analyzer
Two room temperature sensors, one humidity sensor and one furnace temperature sensor
One igniter, one electric oven heating control
Collect 8 detector alarm signals
Igniter, fuel basin, electric stove, electric oven
Optional Components:
1) Burn wood, burn cotton rope, polyurethane foam, beef patty
2) Ion concentration meter
