Equipment Function：

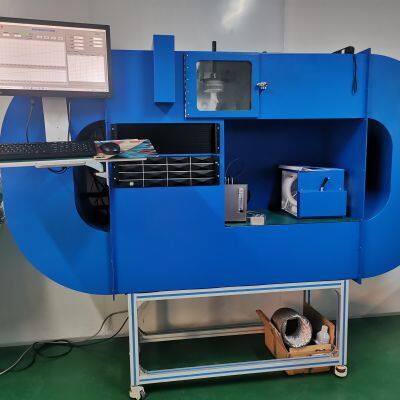

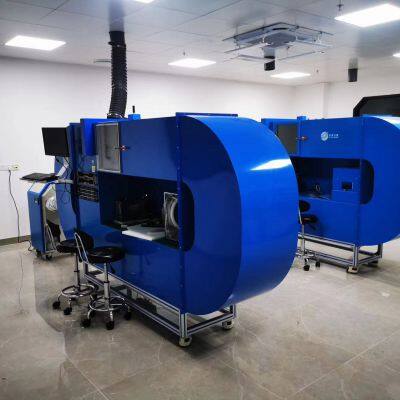

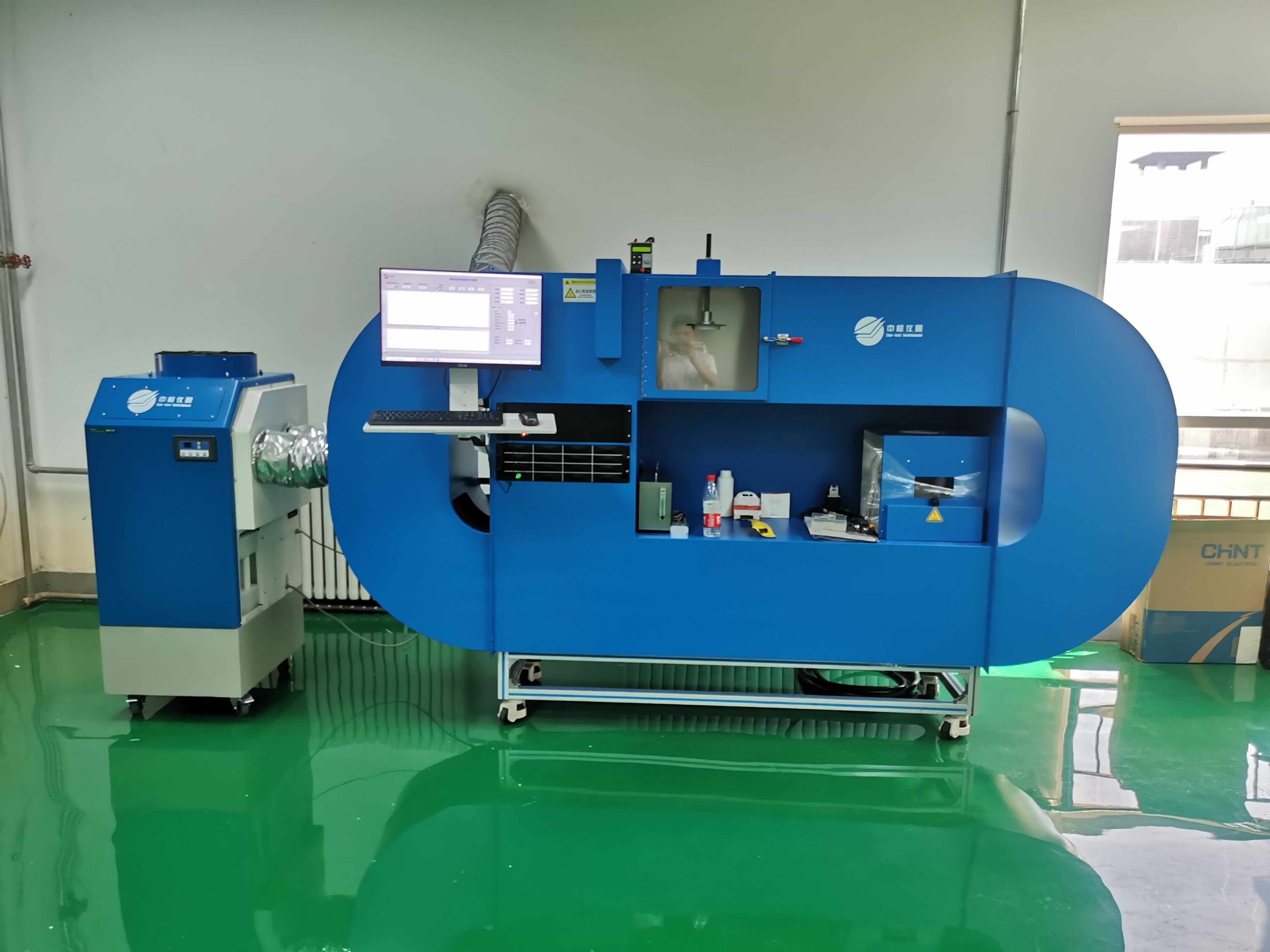

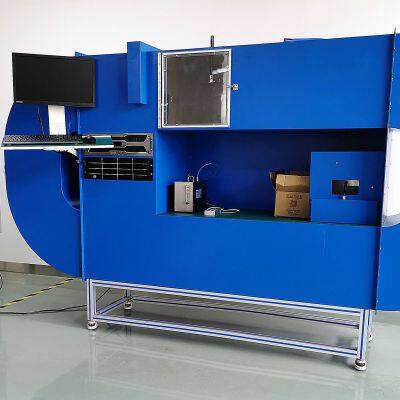

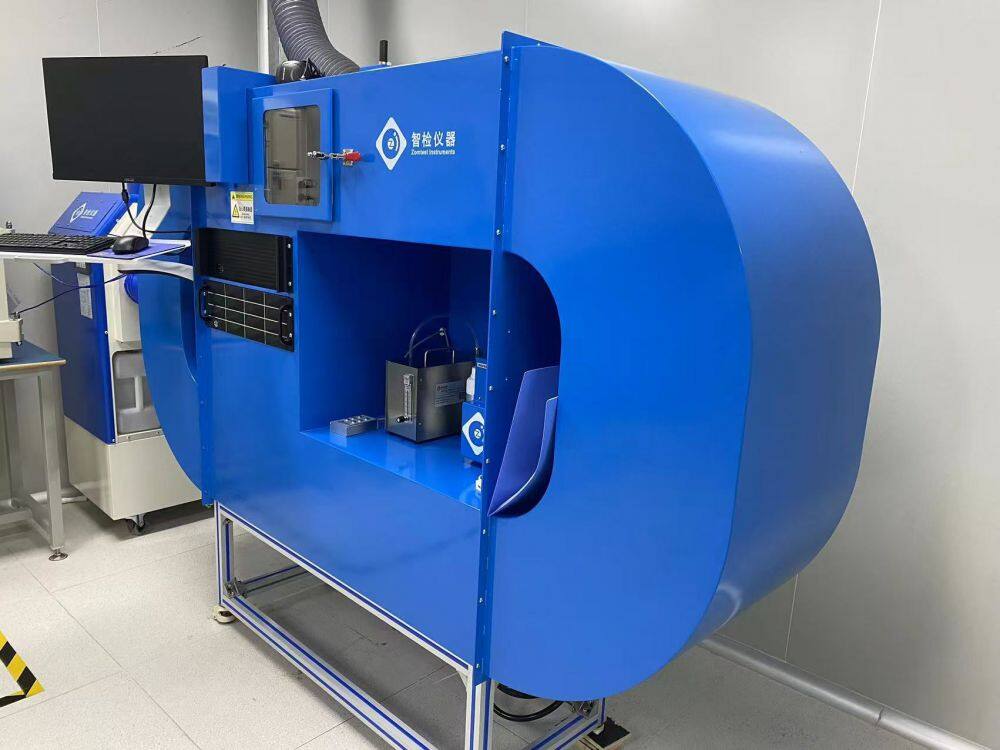

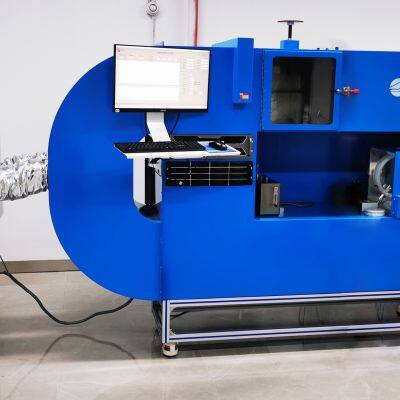

The smoke heat detector test tunnel was designed for sensitivity test of Smoke or Heat alarms/detectors according to GB 20517、GB4715、GB4716、EN 14604、EN 54-7 、EN54-5、BS 5446-2 and ISO standards. It consist of insulated test tunnel，aerosol generator, obscuration sensor, heat element, cooler, controller and computer. The obscuration meter was made of high quality imported part to ensure precision and stable reading. The Zontest Smoke Test Tunnel Software in English was designed by our software expert specifically to meet the standards test requirements.
Specification ：
1． Model：ZNEN14604-1HHC
2． Power supply：380V AC 15 kW， 5m power cord provided
3． Tunnel size: 2.1m x 0.5mx 1.1m.
4． The tunnel section size is 430mm x 270mm
5． Aerosol generator：
Built in brushless pump,
Agent：Liquid paraffin, 500ml provided
Particle size distribution between 0.5µm~1.0µm,
Smoke rising rate: 0.0002 dB/m/min≤⊿m /⊿t ≤0.1dB/m/min, preset to 0.05dB/m, which can be set in the software
6． Optical smoke densitometer:
transmitted light, wavelength 880nm~950nm, range: 0~2 dB/m,
measuring range: 0.000 ~ 2.000 dB / m, measuring error shall not be greater than m×5%+0.02dB/m
7． Wind speed: 0 to 1.5 m/s continuously adjustable via software setting
when the wind speed is set at 0.2m/s, the fluctuation range is less than ± 0.02m/s; when the wind speed is set at 1m / s, the fluctuation range is less than ± 0.1m/s
8． High temperature test function of smoke fire alarm: room temperature ~ 55 ° C, temperature control accuracy + / - 1 ° C, dry heat sensitivity test can be carried out in the smoke box, standard number can be selected by software, and the program can automatically control to the corresponding temperature, which can meet the different requirements of European and national standards
9． Low temperature test function of smoke fire alarm: 0 ° C ~ room temperature, temperature control accuracy + / - 1 ° C, and 0 ° C sensitivity test can be realized in the smoke box
10． Dazzling test device: (small size lamps: 22W diameter 200mm ) removable dazzling test device, software on/off automatic control.
11． Constant smoke control function: the smoke box is equipped with constant smoke control function, which can set the constant smoke concentration and automatically control the smoke to be kept within the range of + / - 0.003dB/m
12． The temperature rise rate of smoke fire alarm test: 0.2 K /min, 1 K /min, 3 K /min, 5 K /min, 10 K /min, 20 K /min, 30 K /min and the error meets the standard requirements
13． Maximum temperature: 160 ° C (applicable to detector categories A1, A2, B, C, D, e, F, G, s, R)
14． Computer: including industrial control computer and display, industrial control computer processor performance i5-9400, memory 8g, hard disk 128G SSD or above, display 23.8 inches.
15． Test software: Chinese and English
16． Software function: the equipment has the function of automatic operation detection. Start with one key, and the test process is automatically completed by the program. The process includes automatic wind speed switching, smoke rising control, temperature control, smoke sensing azimuth angle conversion, smoke exhaust, light interference process, test data display, test result storage, etc
17． Data storage and output: it can automatically display the sensitivity value when recording alarm. Each test record includes threshold value, smoke rising rate, temperature, test directions, serial number and time. The record table can be exported to csv format. The concentration or temperature curve data can be stored, and the concentration or temperature value of each point can be stored according and exported to csv format.
18． The smoke box shall be equipped with smoke exhaust fan (including smoke exhaust hose)
19． Excluding MIC
