Help CenterDetector Collision Test Device
Related Products

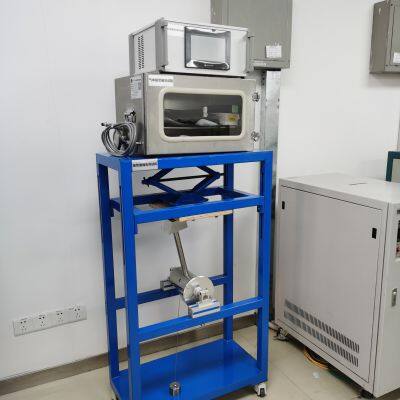

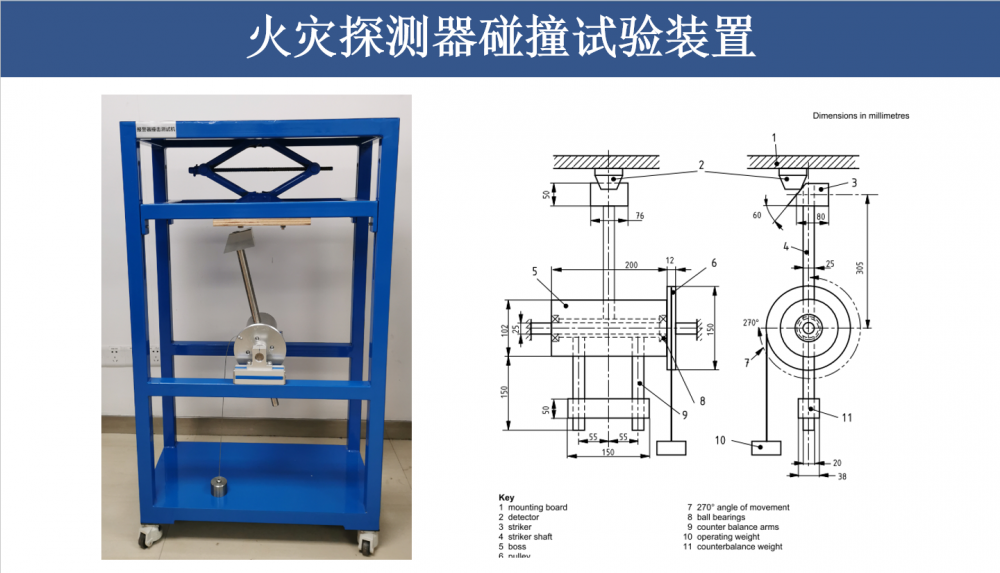

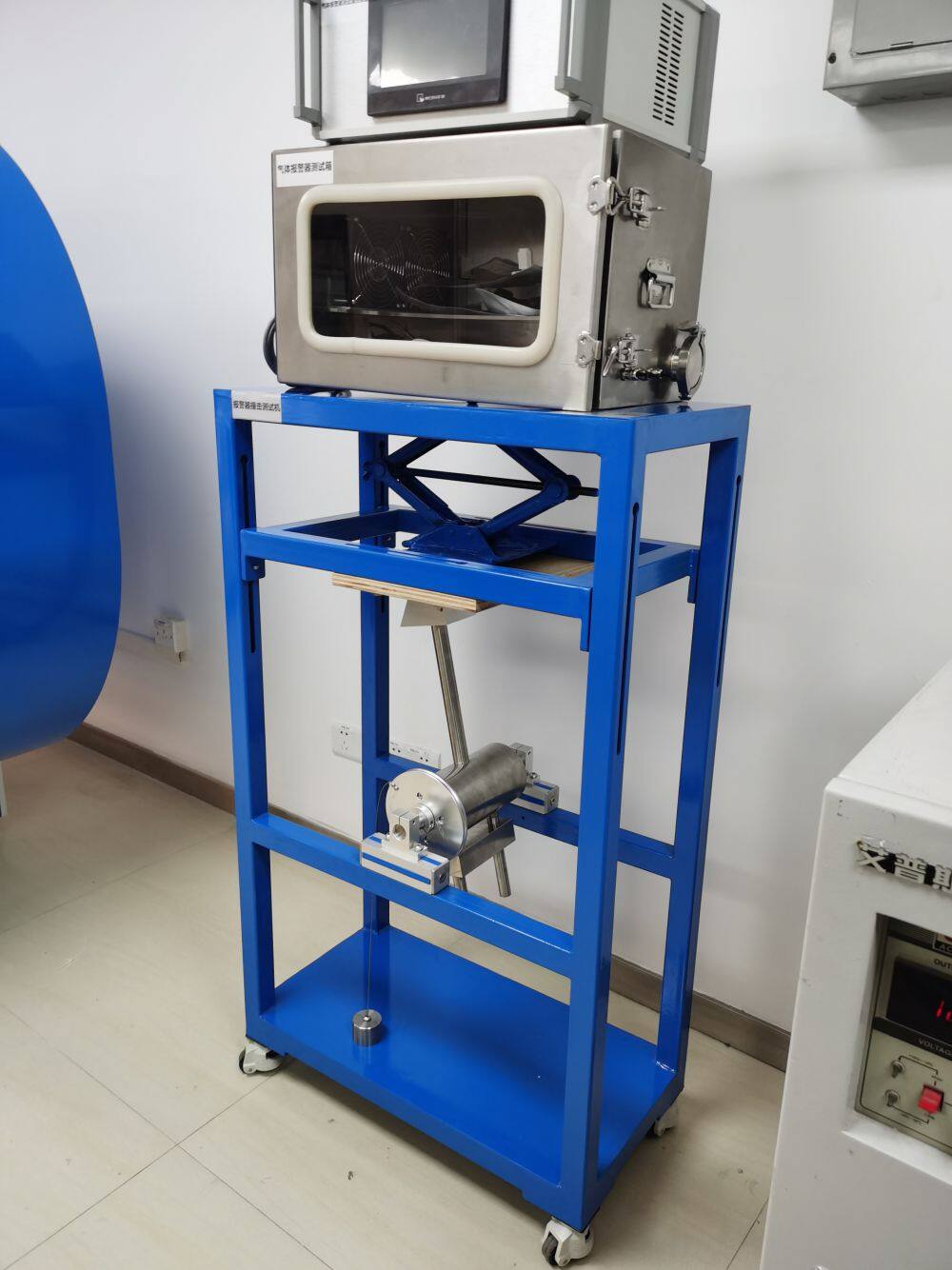

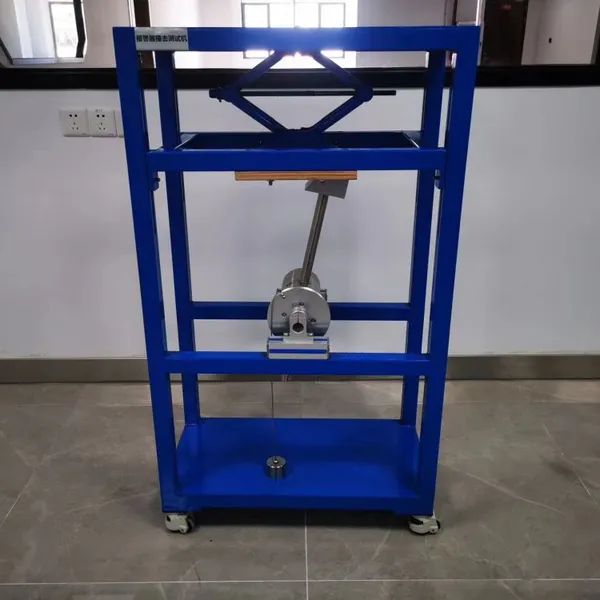

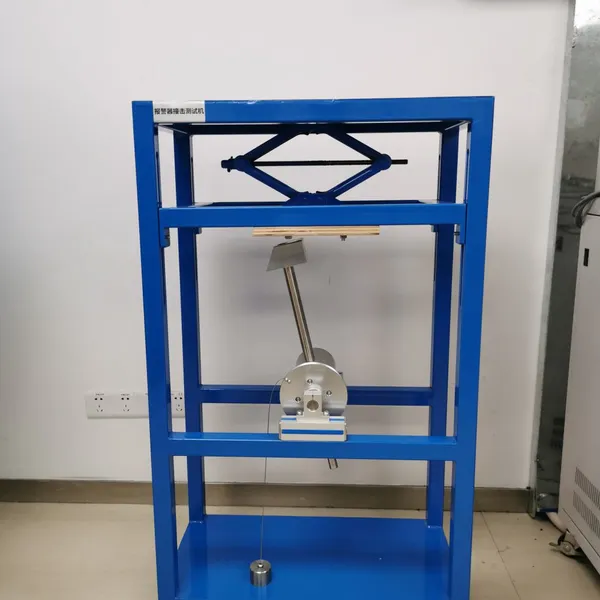

The detector collision test device is designed and manufactured in accordance with the appendix of EN 54-7, which is used for collision test of fire alarm system products such as detectors. The device is composed of pendulum, impact head, weight, frame and adjustable sample mounting frame. According to the shape and height of the sample, the height of the sample mounting plate can be easily adjusted up and down by screws. Set to meet the following standards:
GB 4715 point type smoke Fire Detector Clause 4.14 Collision Test and Appendix E Collision test device
GB 20517 Free-standing Smoke Fire Detection Alarms Clause 5.20 Collision test
GB 19880 Manual Fire Alarm Button Clause 4.14 Crash Test
BSEN 54-7 Fire detection and fire alarm systems — Part 7: Smoke detectors — Point detectors using scattered light, transmitted light or ionization Clause 5.14 Impact(operational)and Annex E Apparatus for impact test
BSEN Fire detection and fire alarm systems —Part 11: Manual call points 54-11 5.15 Impact (operational)
BSEN 14604 Smoke alarm devices Clause 5.11 Impact(operational)and Annex E Apparatus for impact test
Equipment Parameters ：
Model：ZNEN54-IP
Standard ： EN 14604, EN 54,GB20517, GB4715, GB4716, GB 19880
Hammer head size： 94 mm long, 76mm wide and 50mm high
Hammer weight：0.79 kg
Farmar weight：0.55 kg
