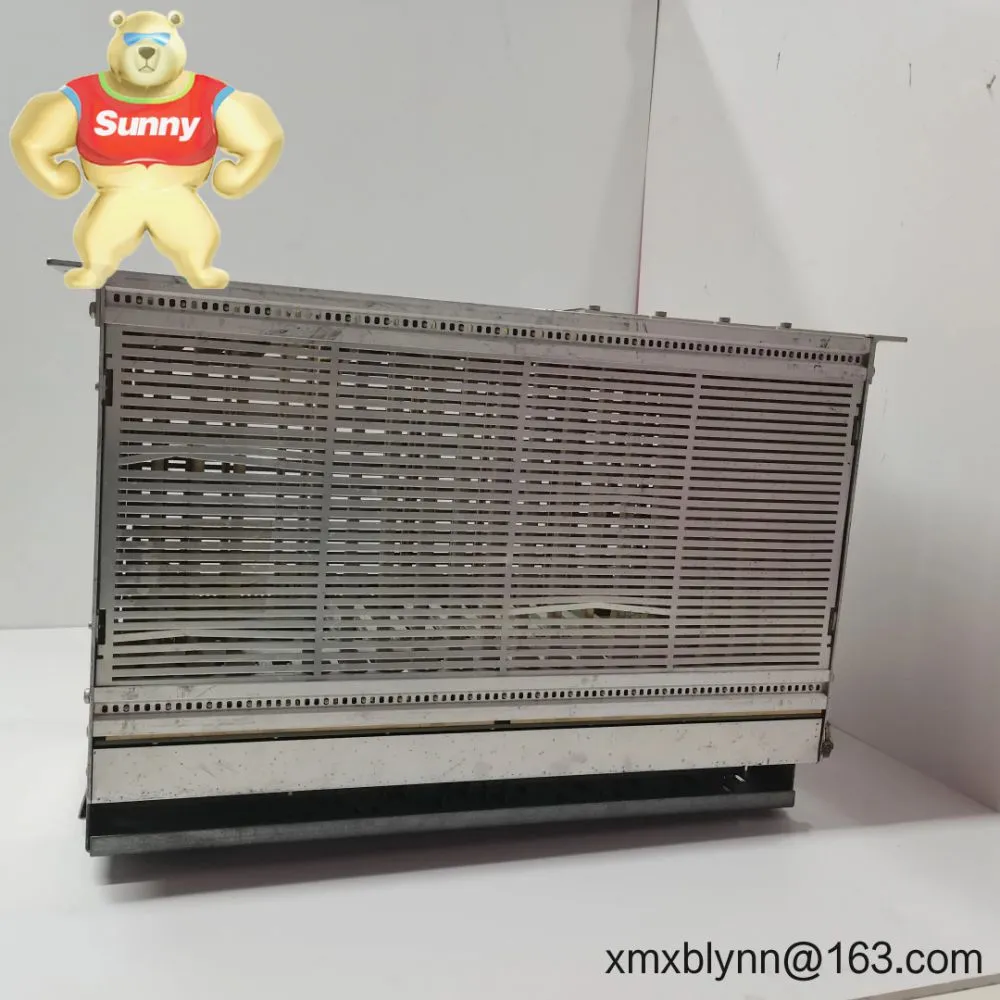

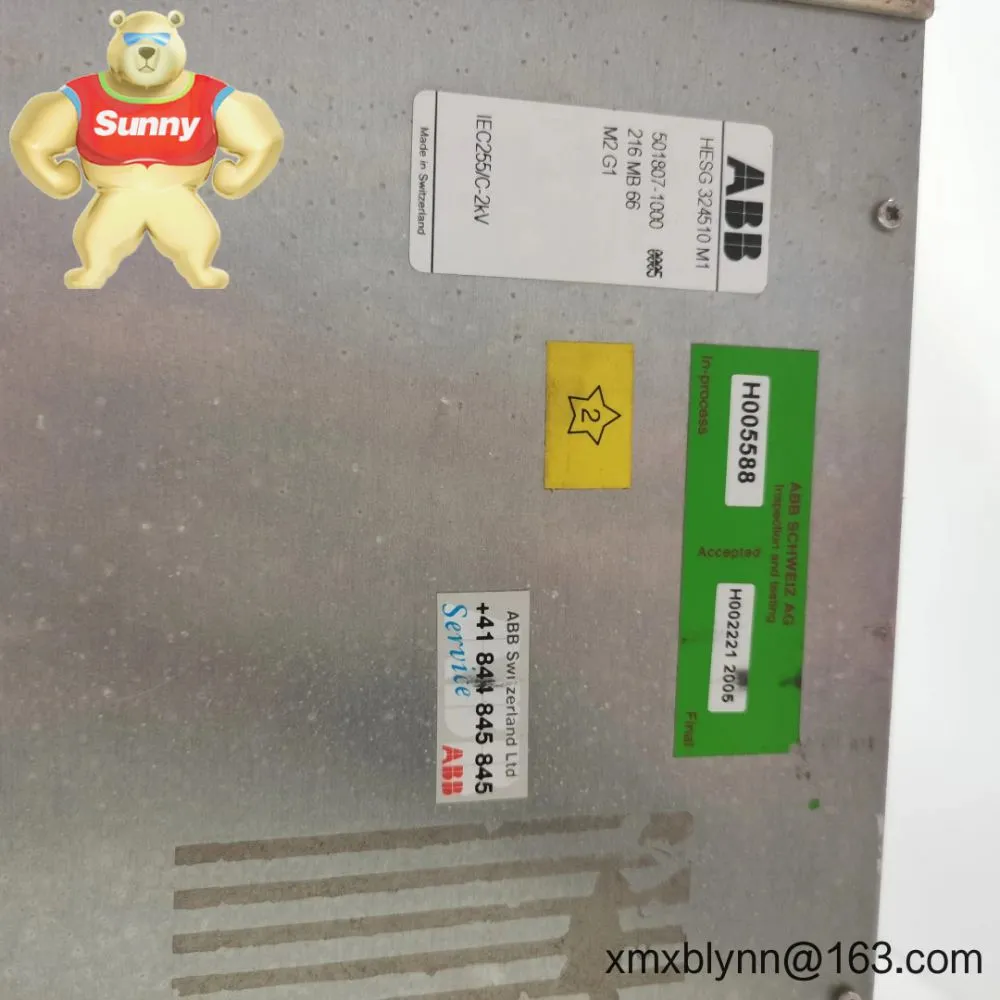

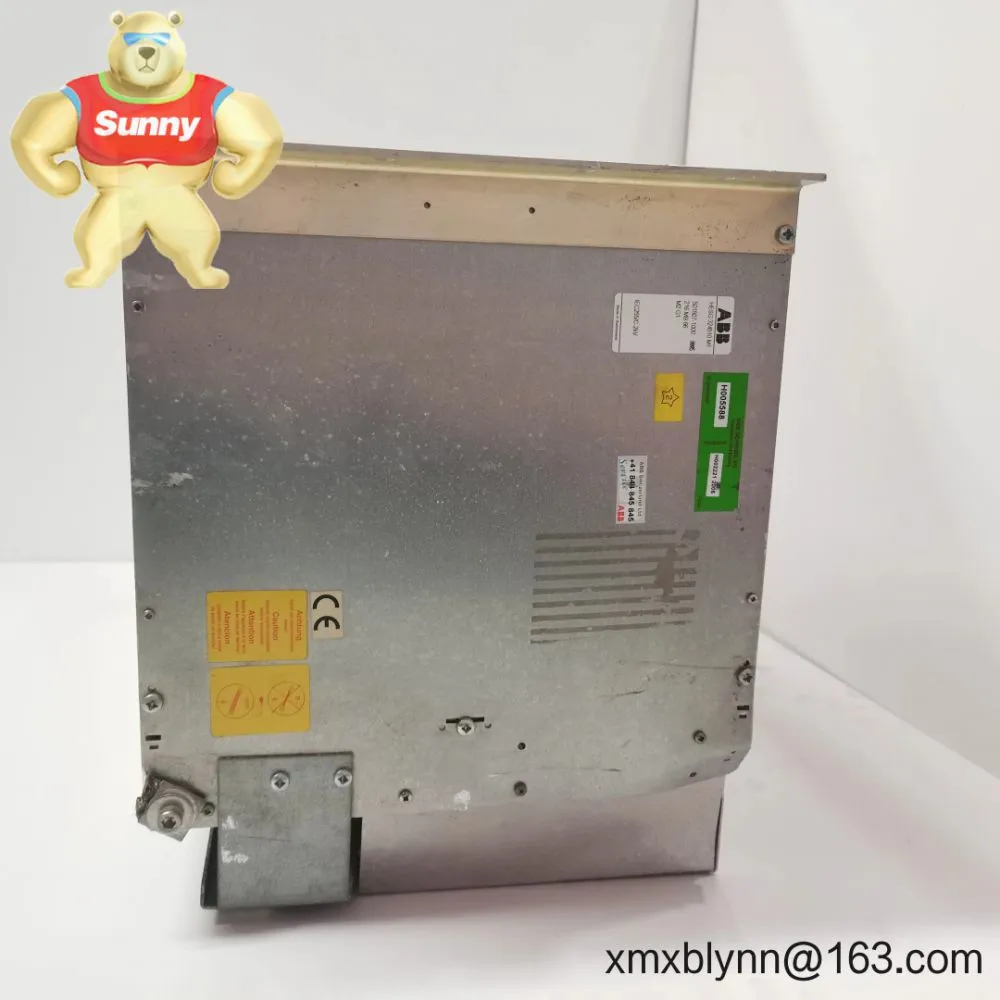

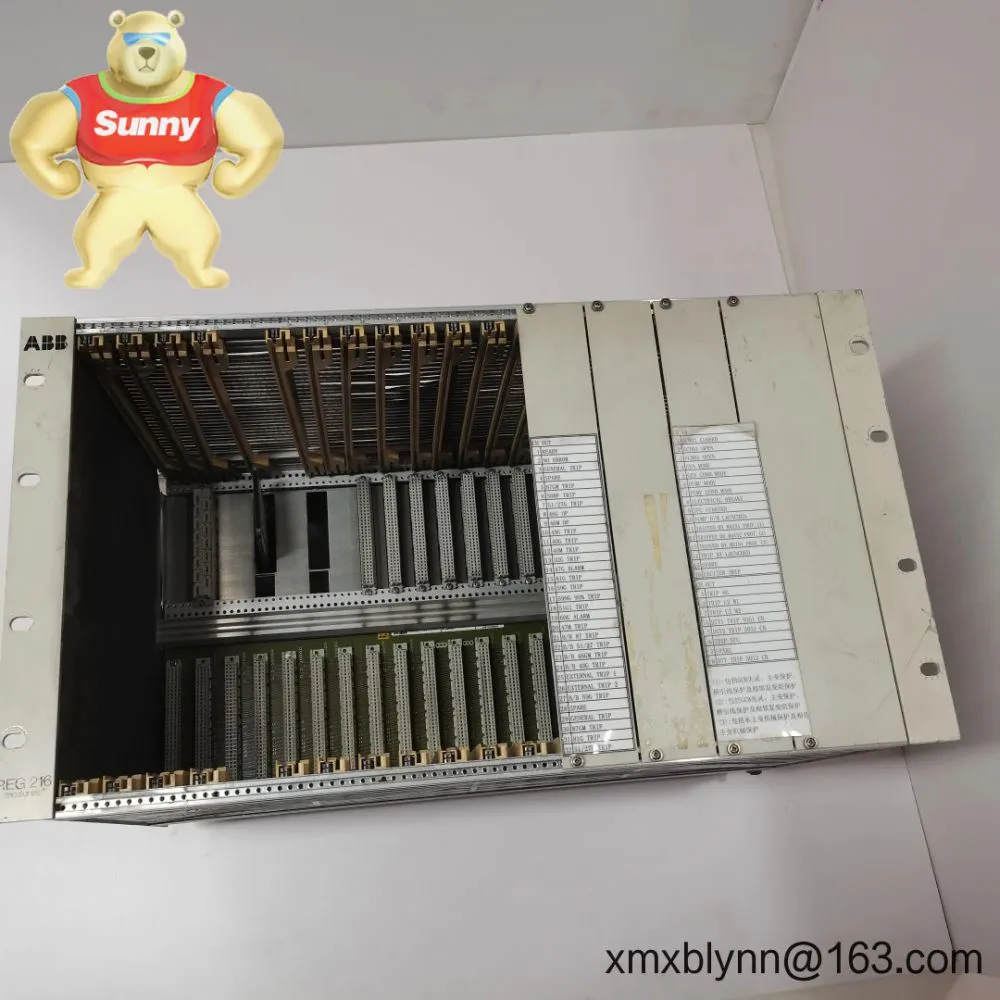

The ABB 216MB66, manufacturing code HESG324510M1, is a rack-mounted control/communication board used in ABB industrial automation systems. It’s typically applied as a primary processing or interface module in DCS and drive/excitation platforms where stable backplane communications and deterministic control are critical. From my experience, it’s chosen as a reliable drop-in spare when uptime matters more than fancy new features.
Rack-mounted plug-in design – Slides into an ABB system chassis for quick replacement and minimal downtime.
Stable backplane communication – Interfaces with system data/clock buses; you might notice improved bus stability after reseating or replacing.
Service/diagnostic access – Typically provides a service serial interface and clear front-panel status LEDs to simplify fault finding.
Designed for control cabinets – Operates within standard control-room temperatures; fits common 6U Eurocard-style slots in many ABB racks.
Supports redundancy strategies – In many cases it can be deployed in paired or standby configurations depending on the host system’s architecture.
Field-proven lifecycle – Widely used across heavy industry where predictable performance and long MTBF are valued over bleeding-edge specs.
| Brand / Model | ABB 216MB66 (HESG324510M1) |
| Function | Control/communication board for ABB rack-based DCS, drive, or excitation systems |
| Power Requirements | Supplied via system backplane (typically 5 VDC, under 10 W) |
| Dimensions & Weight | Approx. 6U Eurocard format; ~233 × 160 mm board depth; ~0.4–0.6 kg |
| Operating Temperature | 0 to +55 °C (typical control-cabinet environment) |
| Signal I/O Types | System backplane data/clock; service serial (model-dependent); front-panel status LEDs |
| Communication Interfaces | RS‑232/RS‑485 for service in many cases; fieldbus handled through the host backplane |
| Installation Method | Plug-in module, keyed slot, front-handle insertion into ABB system rack/chassis |
You’ll typically find the 216MB66 in continuous-process plants where predictable control and platform continuity matter: power generation (including excitation systems), metals & mining, petrochemicals, pulp & paper, and large motor/drive installations. It’s well-suited as a planned spare for life-cycle support or as a targeted replacement to stabilize a flaky backplane node.
DCS nodes in legacy and mid-generation ABB architectures
Drive and excitation cabinets requiring deterministic bus comms
System upgrades where keeping I/O wiring and chassis is essential
Drop-in compatibility – Minimizes engineering time; in most cases, no rewiring or panel rework.
Risk reduction – Proven form factor and predictable LED diagnostics make commissioning straightforward.
Lifecycle economy – Extends installed base life without a full system migration, saving both capex and shutdown hours.
Supply-chain practicality – Easier to stock as a strategic spare; fast swap restores redundancy quickly.
Technical support – Firmware and revision guidance is widely available; many teams already know the procedures.
Quick note from a recent maintenance crew: replacing a suspect 216MB66 eliminated intermittent bus resets that only showed up during high ambient temps—no other cabinet changes required. That kind of result isn’t guaranteed, but it’s common when the issue centers on a marginal backplane card.
Cabinet & rack – Install in the designated keyed slot of the ABB chassis; ensure 50–100 mm clearance for airflow and cable bend radius.
Power & grounding – Verify clean cabinet grounding and stable backplane supply; poor ground reference can mimic board faults.
ESD handling – Use wrist straps and antistatic packaging; avoid touching component surfaces.
Hot-swap policy – Only perform live replacement if explicitly allowed by your system manual; otherwise, de-energize the rack.
Commissioning – Check firmware/revision match, slot addressing, and LED sequence on power-up; confirm node health in the engineering station.
Routine care – Quarterly dust inspection with dry air (low pressure); verify connector tightness; log firmware and parameter baselines.
Spare strategy – Keep one unit per critical cabinet; label by slot and firmware to speed changeover.
CE compliance for industrial environments (EMC/LVD)
RoHS-aligned materials; conformal coating may be present depending on build
Manufactured under ISO 9001 quality systems (typical for ABB production)
UL recognition may apply at the system level; verify against your rack/controller model
Standard 12‑month limited warranty typically applies via official channels
ABB system rack/backplane – Required chassis slot with correct keying and addressing.
Power supply module – Stable 5 VDC backplane feed; consider redundant supplies for critical nodes.
Fieldbus/comm modules – RS-485 or fiber interface cards if your system uses remote I/O or plant networks.
Engineering/diagnostic cable – Serial or USB-to-serial adaptor for service port access.
Note: Specifications above reflect typical characteristics for ABB rack-mounted control boards in this series. For a perfect match, please confirm slot compatibility, firmware revision, and system family against your installed base.
