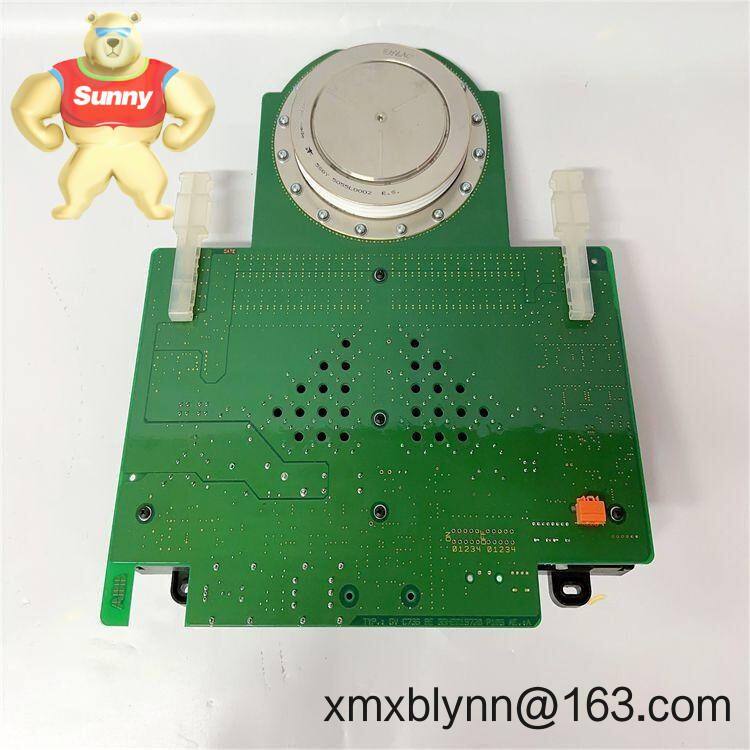

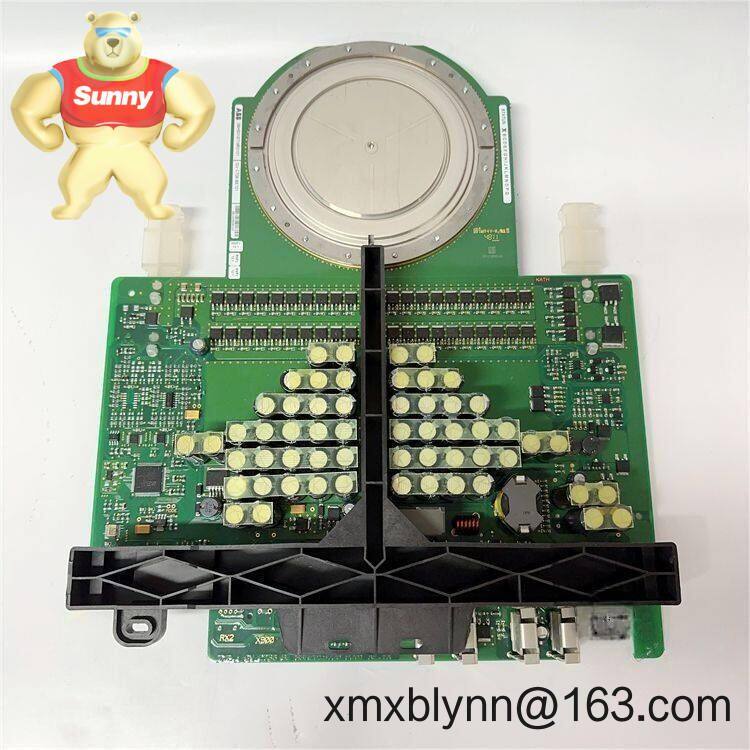

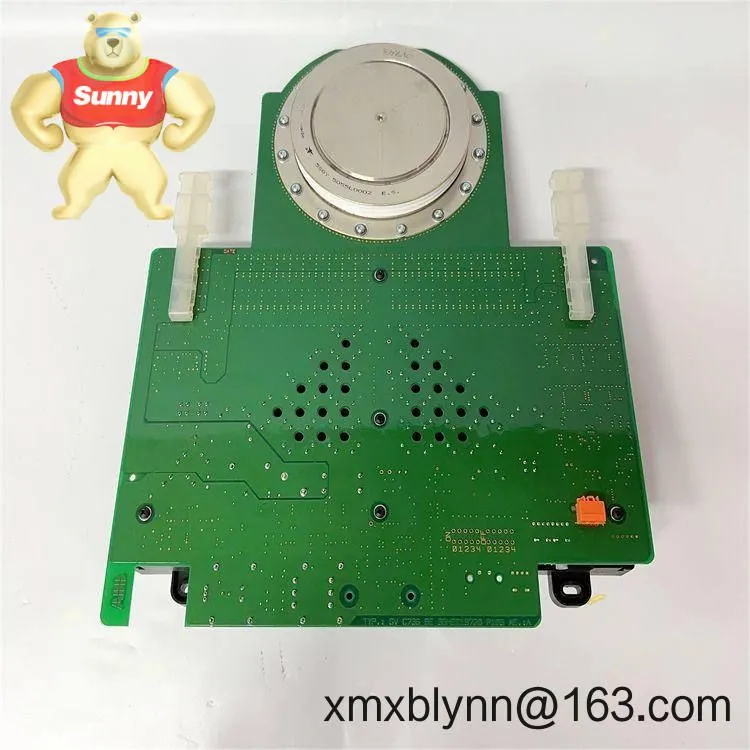

ABB 3BHB003688R0101 IGCT – High-reliability Switching Module for Medium-voltage Drive Service

The ABB 3BHB003688R0101 is an IGCT-based power module typically used as a service replacement in ABB medium-voltage drives. From my experience, it’s chosen when you need stable high-current switching, predictable thermal behavior, and a straightforward drop-in fit with ABB gate units already in your cabinet.

It appears to be engineered for equipment like the ABB ACS-series MV drives where uptime matters and component consistency reduces commissioning time. In many cases, swapping this module restores full load capability without any parameter rework beyond routine drive checks.

• IGCT technology – Integrated gate-commutated thyristor design delivers fast turn-off with low conduction losses, ideal for demanding MV drives.

• Press-pack robustness – Mechanical press-pack structure provides uniform current sharing and a predictable failure mode, typically preferred in mission-critical process lines.

• ABB-matched compatibility – Designed to work with ABB gate units and phase modules, which tends to simplify replacement during planned shutdowns.

• Thermal stability – Built for high di/dt and dv/dt environments; handles repetitive thermal cycles common in rolling mills, fans, compressors, or marine propulsion.

• Traceable spare – Full part code and batch traceability support quality audits and long-term asset records.

• Service-friendly form factor – Typically a direct physical fit in existing heatsink assemblies with specified clamping force, minimizing mechanical rework.

You might notice this part most often in ABB medium-voltage AC drives used across heavy industries. Typical sites include:

• Cement kilns and large ID/FD fans where long runtimes and steady torque are essential

• Metals (hot/cold rolling, continuous casting) with frequent thermal cycling and high peak currents

• Oil & gas compressors and pipeline pumps that demand reliable start/stop sequences

• Marine propulsion and thrusters, typically requiring robust short-circuit behavior

• Power generation auxiliaries and large process blowers in utilities or chemicals

•


• Reliability in harsh duty – IGCT physics tends to yield low switching losses and high surge capacity, helping with thermal margins.

• Compatibility – As a genuine ABB-coded spare, it’s a cleaner fit with existing ABB gate units and phase modules, cutting integration risk.

• Reduced downtime – Direct replacement approach saves hours during planned shutdowns; one maintenance supervisor told us the swap “felt like a mechanical job, not a science project.”

• Total cost of ownership – Fewer nuisance trips and stable thermal behavior in many cases mean fewer unplanned interventions.

• Traceable supply – Batch and date-code transparency support compliance and lifecycle planning.

•


• Cabinet & environment – Install in a clean, dry MV drive cabinet with adequate ventilation or liquid cooling as specified; keep airflow paths unobstructed.

• Heatsink & clamping – Clean contact surfaces, verify flatness, and apply the ABB-specified clamping force/sequence. Do not reuse damaged insulators or hardware.

• Wiring – Connect the IGCT gate interface only to the matched ABB gate unit; avoid bending or stressing the gate lead. Observe polarity and routing clearances.

• Safety – Lockout/tagout, discharge DC-link capacitors, and follow ESD precautions. MV cabinets retain charge longer than expected in some cases.

• Routine checks – Monitor heatsink temperature, verify fan/pump operation, and review event logs for commutation or overcurrent trips.

• Lifecycle care – Keep firmware on the drive/gate-unit at recommended levels and document clamping torque checks during annual outages.

• Manufacturing quality – Produced under ISO 9001 quality systems (typical for ABB semiconductor and drive components).

• Compliance – RoHS-compliant in most cases; CE/UL usually not applicable to bare power semiconductor modules, but the host drive is certified.

• Warranty – Standard manufacturer warranty applies to genuine spare parts; specific terms depend on region and supply channel.

•


Note: Ratings and dimensions can vary by the exact 3BHB003688R0101 build used in your drive family. If you share the drive typeplate (e.g., ACS1000/3000/5000/6000) and phase module code, we can confirm the precise fit and installation force values before shipment.
