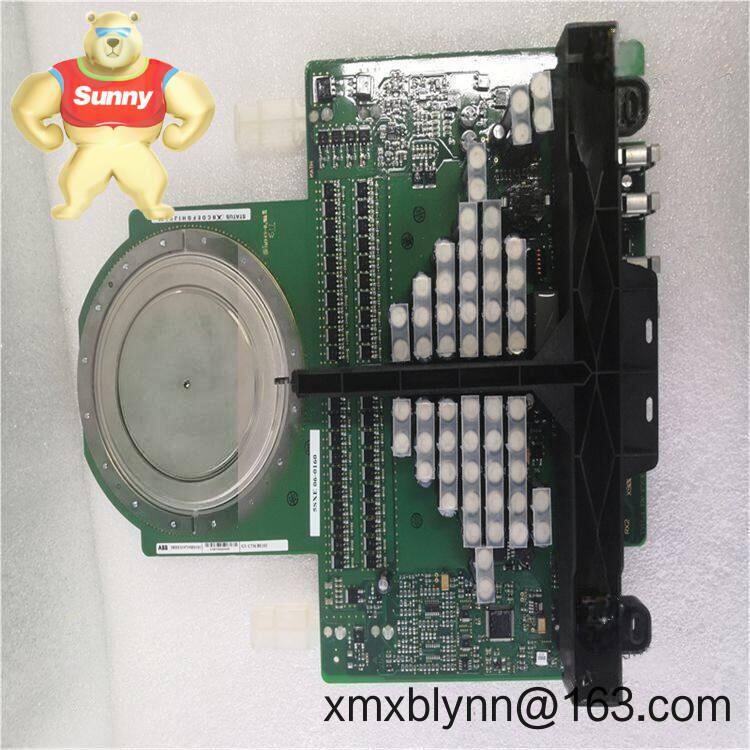

ABB 3BHB004692R0001 GVC732AE01 – Gate Drive Control Board for ABB Low-voltage Drives

The ABB 3BHB004692R0001 (GVC732AE01) is a gate-drive control board typically used inside ABB low-voltage drives to coordinate IGBT gate signals and power module feedback. From my experience, it’s a drop-in spare that helps restore stability in ACS800-series installations without needing field programming. If you’re maintaining critical lines where downtime is costly—like paper machines, extruders, or large pump trains—this board tends to be the practical fix when gate control channels go unstable or throw intermittent faults.

• Purpose-built gate control – Manages timing and health monitoring for IGBT gate channels inside the drive’s power module.

• Direct replacement, OEM part – Matches ABB’s mechanical layout and connectors, so installation is straightforward in most cases.

• Stable operation under load – Designed for demanding duty cycles; in many cases it reduces nuisance trips linked to gate-drive noise or aging boards.

• Internal, protected installation – Sits within the drive enclosure, benefiting from the drive’s cooling and shielding.

• No field reprogramming required – Typically recognized by the drive firmware; parameter retention remains at the main control unit.

• Reliable connectors and harnessing – Uses ABB-standard board connectors for gate/feedback harnesses to minimize wiring errors.

• Designed for serviceability – Board-level swap with basic ESD precautions; technicians usually complete changeouts during a short stop.

• Proven compatibility – Commonly found in ABB ACS800 drive frames used across metals, paper, mining, and marine applications.

You’ll typically see GVC732AE01 boards in ABB ACS800 drives serving heavy-duty loads: paper winding lines, steel processing stands, chemical agitators, mine hoists, marine thrusters, compressors, and high-power pump stations. Plants that run 24/7 tend to keep one of these on the shelf because a gate-drive failure can take an entire line offline.

• Reliability – OEM part with the correct component tolerances and coating practices for industrial environments.

• Compatibility – Built for ABB power modules; no improvised harnessing or adapter boards in most cases.

• Cost & downtime savings – Faster swap than diagnosing intermittent gate channels; pays back in avoided lost production.

• Technical support – Parameters remain in the drive’s main control unit, so commissioning is typically minimal after replacement.

• Environment – Install inside a clean, ventilated panel compliant with the drive’s enclosure and ambient specs; avoid condensation.

• ESD handling – Use wrist straps, antistatic mats, and keep the board in ESD-safe packaging until installation.

• Wiring & connectors – Reseat ribbon and harness connectors firmly; check for bent pins. Route away from high-EMI cables where possible.

• Commissioning – Power up and verify gate test/diagnostics via the drive panel; no separate board programming is usually required.

• Routine care – Keep the cabinet dust-free; inspect connectors during scheduled shutdowns. Firmware updates, if any, are applied at the drive control level.

• Drive control unit for ACS800 (main CPU board) – manages parameters and overall logic.

• Gate/feedback harness set – the internal cables linking GVC board to the power module.

• Cooling fans/filters for the drive – maintaining airflow helps extend gate-board and IGBT life.

• Operator panel (e.g., CDP type) – useful for diagnostics after board replacement.

• CE and UL conformity when installed within the certified ABB drive system

• RoHS-compliant materials, depending on revision

• Manufactured to ISO 9001 quality standards

• Standard manufacturer warranty: 12 months (typical for ABB parts)

•
