Product Overview:

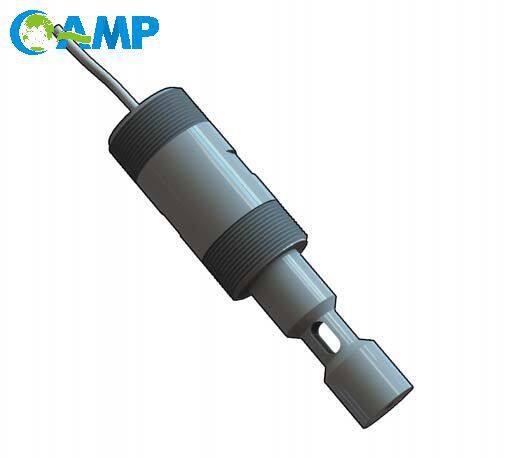

The FLS C6.30 Inductive Conductivity Transmitter offers high-precision conductivity measurement for water and wastewater treatment. Equipped with a 4-20mA output, it is ideal for direct connection to PLC systems and data loggers without additional interfaces. This robust sensor uses inductive measurement technology, which eliminates electrode contact with the liquid, ensuring reliable, long-term performance even in harsh environments.
Key Features:
Inductive Measurement Technology: Ensures reliable conductivity measurement without electrodes in contact with the solution, extending operational lifespan and ensuring minimal maintenance.
Corrosion-Resistant CPVC Housing: Made with durable CPVC material, the transmitter is designed to withstand corrosive liquids and harsh environmental conditions.
IP68 Protection Rating: Fully protected against dust and submersion in water, making it suitable for demanding industrial and outdoor applications.
Temperature and Pressure Compensation: The built-in Pt100 temperature sensor offers automatic temperature compensation for precise readings across a wide temperature range (0°C to 50°C).
Easy Integration: The 4-20mA output is compatible with most PLC systems and data recorders, ensuring easy integration with existing monitoring and control systems.
Applications:
Water and wastewater treatment plants
Industrial cooling towers
Surface treatment processes
Corrosive liquid monitoring
Why Choose the FLS C6.30 Inductive Conductivity Transmitter?
The FLS C6.30 is perfect for high-conductivity applications, particularly in corrosive environments, as it provides accurate and reliable measurements without the need for electrode contact. Its IP68 rating ensures durability even in harsh industrial conditions, while the 4-20mA output offers simple integration into existing systems.
Order Now: Enhance your water and wastewater treatment process with the FLS C6.30 Inductive Conductivity Transmitter.
FAQ:
What is the output of the FLS C6.30 transmitter?
The FLS C6.30 provides a 4-20mA output, which is compatible with most industrial controllers and data loggers.
What material is the transmitter made from?
The FLS C6.30 is made from CPVC (Chlorinated Polyvinyl Chloride), which is highly resistant to corrosion, making it ideal for harsh environments.
Can this transmitter be used in wastewater treatment?
Yes, it is specifically designed for use in water and wastewater treatment plants, as well as other industrial applications involving corrosive liquids.
How is temperature compensation handled?
The FLS C6.30 has a built-in Pt100 temperature sensor that automatically adjusts the readings for temperature variations, ensuring accurate results.
What is the maximum operating pressure for this transmitter?
The transmitter can operate at a maximum pressure of 10 bar at 25°C and 6 bar at 50°C.
How do I install this transmitter?

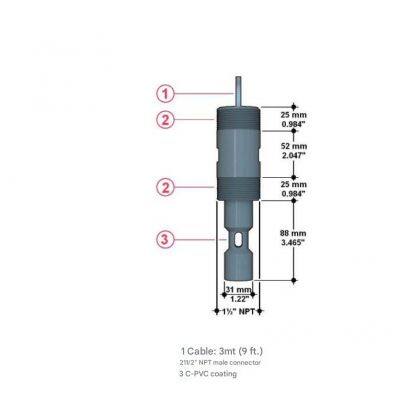

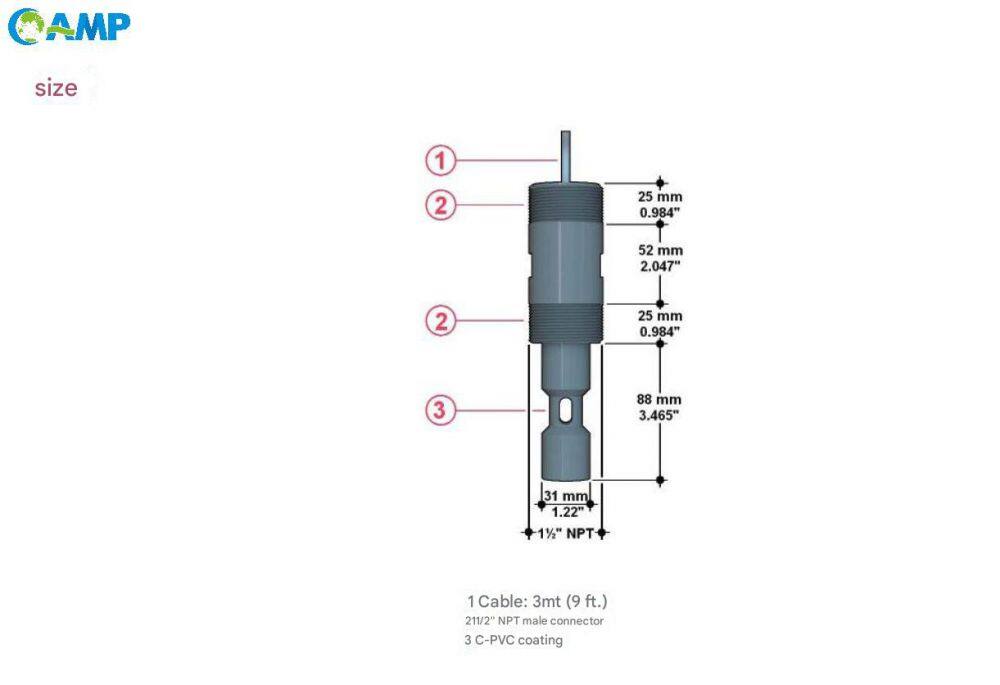

The FLS C6.30 can be installed easily using the 1 1/2” NPT male thread, allowing for straightforward integration into your existing systems.
What does the IP68 rating mean?
The IP68 rating means the transmitter is dust-tight and can be submerged in water, making it highly durable and suitable for outdoor and industrial use.
Can this device be used for high conductivity liquids?
Yes, the FLS C6.30 is capable of measuring high conductivity liquids up to 1000 mS, making it suitable for a wide range of industrial applications.
