Home > Electrical & Electronics > Electrical Control System > GE IS200TSVCH1ADC S1CX01H Servo I/O Terminal Board

GE IS200TSVCH1ADC S1CX01H Servo I/O Terminal Board

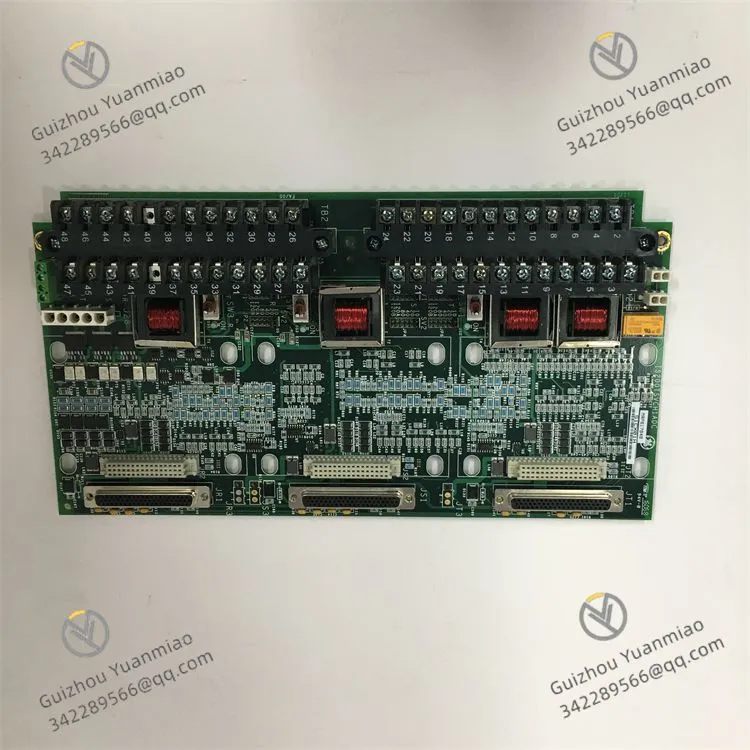

GE IS200TSVCH1ADC S1CX01H Servo I/O Terminal Board photo-1

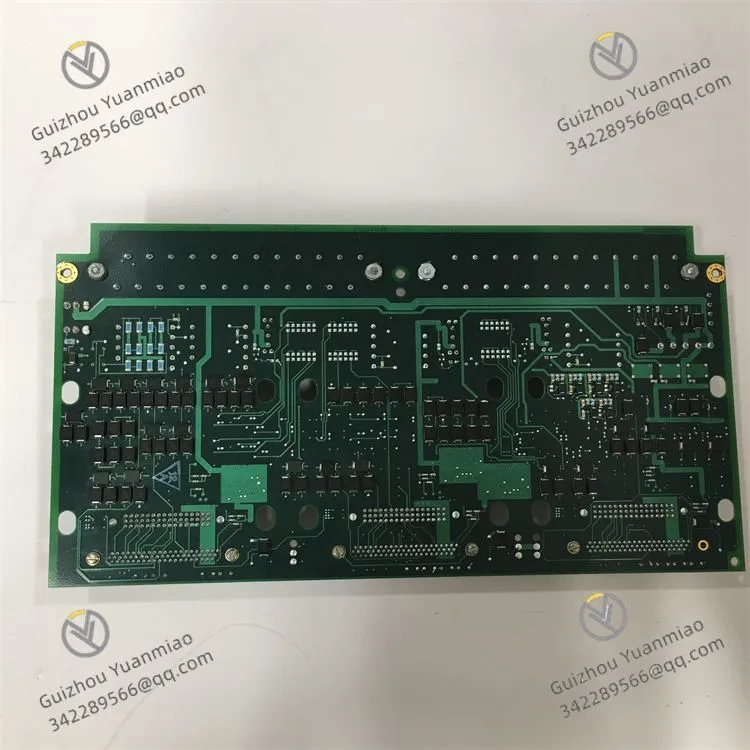

GE IS200TSVCH1ADC S1CX01H Servo I/O Terminal Board photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -20℃~65℃

Relative Humidity 5% to 95% (non-condensing)

Storage Temperature -40℃~85℃

Dimensions 254mm×178mm×25mm

I. Overview

The GE IS200TSVCH1ADC is a core servo terminal module specifically designed for servo valve control and valve position feedback in industrial turbines (such as steam turbine generator units and gas turbines). It serves as a "signal processing hub" connecting the main controller and on-site servo actuators. Its core functions include achieving precise drive control of turbine steam/fuel valves, collecting valve position signals and performing closed-loop regulation, while also featuring multiple safety protection mechanisms. These mechanisms ensure the stable operation of turbines during start-stop, speed regulation, and fault conditions. The module is widely used in large-scale turbine control systems in industries such as power generation, oil and gas, and chemical engineering.

This module adopts a standard industrial-grade printed circuit board design (with dimensions approximately 254mm×178mm×25mm), which is compatible with the dedicated cabinet slots of the GE Mark series. It realizes high-speed data interaction (with a transmission rate of 40MB/s) with the Mark VI/VI E main controller via the backplane bus. The surface of the module is coated with an electromagnetic interference (EMI) resistant layer, and key components (such as D/A converters and LVDT signal amplifiers) are equipped with metal shielding covers. The pin soldering process complies with the IPC-A-610 Class 3 industrial standard, enabling the module to withstand high-frequency electromagnetic interference in industrial sites (e.g., interference from frequency converters and high-voltage motors) and operate within a wide temperature range (-20℃~65℃). It meets the strict requirements for real-time performance and reliability in turbine control, and is particularly suitable for high-power turbine scenarios that demand high servo control precision.

II. Core Functional Features

1. High-Precision Drive Output for Dual Servo Valves

The IS200TSVCH1ADC supports the drive control of two independent electro-hydraulic servo valves, which can correspond to the steam valve and fuel valve of the turbine respectively. The module is equipped with a built-in 16-bit high-precision D/A conversion circuit, which can convert digital control commands (such as the target value of valve opening) issued by the main controller into analog drive signals of 4-20mA DC or ±10V DC. These signals drive the spool displacement of the servo valves to adjust the medium flow rate. The precision of its drive signal reaches ±0.1% FS, and the valve opening control error is ≤0.5%. It can dynamically compensate for load fluctuations of the servo valve (e.g., current abnormalities caused by spool jamming). For example, during the speed regulation of a steam turbine generator unit, when the grid load changes, the module can quickly adjust the servo drive signal to ensure the stable change of steam flow and prevent the turbine speed fluctuation from exceeding ±0.1% of the rated value.

At the same time, the module is equipped with a real-time monitoring function for the current/voltage of the servo valve, which samples the drive circuit parameters every 1ms. If an over-range current (e.g., >25mA) or abnormal voltage (e.g.,

2. Full-Process Processing of LVDT Valve Position Signals

To meet the requirement of real-time closed-loop control for turbine valve positions, the module integrates a dedicated processing circuit for LVDT (Linear Variable Differential Transformer) signals and supports the signal access of two LVDT sensors. Its core advantages are as follows:

Stable Excitation Output: It has a built-in LVDT excitation signal generator that can output a 10kHz sine wave (with an amplitude of 5Vrms), providing stable excitation for LVDT sensors and avoiding position measurement errors caused by fluctuations in the excitation signal.
High-Precision Signal Conditioning: It adopts a differential amplification and 100Hz low-pass filter circuit to suppress noise in the position signal fed back by the LVDT (with a signal-to-noise ratio ≥80dB), effectively filtering out electromagnetic interference in industrial sites.
Fast A/D Conversion: It converts the analog position signal into a digital signal through a 16-bit A/D converter, with a sampling period ≤1ms and a position measurement precision of ±0.05% FS. For example, in the fuel valve control of a gas turbine, it can collect the valve opening (0-100%) in real time, ensuring that the deviation between the feedback value and the actual opening is ≤0.05% and providing accurate data support for closed-loop regulation.

3. Dual Redundant Power Supply and Multi-Level Safety ProtectionRedundant Power Supply Design

The module connects to two 28V DC redundant power supplies (each with a rated current of 2A) through the J28 socket, and is equipped with a built-in power monitoring and switching circuit. When any power supply experiences overvoltage (>32V DC), undervoltage (

Safety Trip Protection

It is equipped with two external trip interfaces (JD1/JD2) that can be connected to turbine safety protection modules (such as overspeed protection and high lubricating oil temperature protection modules). When the system detects a safety-threatening fault (e.g., turbine speed exceeding 110% of the rated value, oil temperature exceeding 70℃), the protection module sends a 24V DC trigger signal through the trip interface. The module immediately cuts off the servo valve drive output, resets the valve drive signal to zero (valve shutdown), and uploads the fault code (including fault type and trigger time) via the backplane bus. The response time is ≤5ms, which meets the safety requirements for emergency turbine shutdown.

4. Full-Link Fault Diagnosis and Status Feedback

The module has a built-in self-diagnostic circuit that can monitor the status of key circuits in real time. The diagnostic scope includes:

LVDT Signal Faults: Detecting open/short circuits of sensor cables and loss of excitation signals;
Servo Drive Faults: Monitoring abnormalities of D/A converters and short circuits of drive circuits;
Power Supply and Communication Faults: Identifying power supply voltage fluctuations and backplane bus communication interruptions.

The diagnostic results are intuitively fed back through the LED indicators on the front panel (PWR: power green, RUN: operation green, ERR: fault red, LVDT1/LVDT2: position signal yellow). Meanwhile, the results are uploaded to the main controller via the Modbus RTU protocol (RS485 interface). Maintenance personnel can view detailed fault information through the GE ToolboxST software to quickly locate problems (such as "LVDT1 signal open circuit" and "servo drive CH2 short circuit"), reducing fault troubleshooting time.

III. Technical Parameters

Electrical Parameters

Parameter Category	Specific Specifications
Power Input	Two-channel 28V DC redundant input, allowable voltage fluctuation of ±15%, maximum input current of 2A per channel, power consumption ≤15W
Servo Drive Output	Two independent analog outputs: 4-20mA DC (load resistance ≤500Ω) or ±10V DC (load resistance ≥1kΩ), 16-bit resolution, precision ±0.1% FS
LVDT Signal Processing	Excitation signal: 10kHz sine wave with an amplitude of 5Vrms; input signal range: ±5V DC; A/D conversion resolution: 16-bit, sampling period ≤1ms, position measurement precision ±0.05% FS
Digital Interface	1 RS485 interface (Modbus RTU protocol, configurable transmission rate of 9600-115200bps for local debugging); 1 backplane bus interface (communicates with Mark VI/VI E controller at a rate of 40MB/s)
Isolation Protection	Isolation voltage between signal input/output and power supply ≥2.5kVrms, isolation voltage between channels ≥2kVrms, adopting photoelectric isolation technology

2. Environmental and Reliability Parameters

Operating Temperature: -20℃~65℃, suitable for the high-temperature environment of power plant turbine rooms (the room temperature can reach 55℃ in summer) and the low-temperature environment of outdoor control cabinets in northern winters.
Storage Temperature: -40℃~85℃, no risk of component aging or pin corrosion during long-term storage.
Relative Humidity: 5%~95% (non-condensing). The board surface is coated with a 0.1mm-thick moisture-proof layer, enabling stable operation in high-humidity coastal environments (such as turbine control cabinets on offshore platforms).
Electromagnetic Compatibility: Complies with the IEC 61000-6-2 industrial anti-interference standard, with electrostatic discharge (ESD) protection of ±2kV (contact discharge)/±4kV (air discharge) and electrical fast transient (EFT) protection of ±1kV (power port)/±0.5kV (signal port).
Mean Time Between Failures (MTBF): ≥150,000 hours. Key components (such as D/A converters and LVDT amplifiers) use industrial-grade long-life devices (with a service life ≥10 years).

IV. Working Principle

The working process of the IS200TSVCH1ADC follows the closed-loop logic of "command reception - servo drive - position feedback - closed-loop regulation - fault protection", which is detailed as follows:

Command Reception Stage: Based on the turbine operating conditions (such as grid load demand and speed feedback value), the GE Mark VI/VI E main controller calculates the target opening of the steam/fuel valve (e.g., "steam valve opening 60%") and sends the digital control command to the IS200TSVCH1ADC via the backplane bus.
Servo Drive Stage: The built-in 16-bit D/A converter of the module converts the digital command into an analog drive signal (e.g., a 14.4mA current corresponding to 60% opening). This signal is sent to the electro-hydraulic servo valve through the output terminal, driving the spool displacement to adjust the steam/fuel flow rate and change the turbine input power.
Position Feedback Stage: The LVDT sensor detects the actual opening of the valve in real time and transmits the analog position signal to the LVDT processing circuit of the module. After the module filters and amplifies the signal, it converts the analog position signal into a digital signal through the 16-bit A/D converter and uploads it to the main controller.
Closed-Loop Regulation Stage: The main controller compares the deviation between the "target opening" and the "actual opening". If the deviation is >0.5% (e.g., target 60%, actual 59.2%), it issues a correction command to the module. The module adjusts the drive signal (e.g., increases the current to 14.6mA) until the valve opening reaches the target value, forming a closed-loop control.
Fault Protection Stage: If the module detects a loss of LVDT signal (e.g., cable breakage) or receives an external trip signal (e.g., turbine overspeed), it immediately cuts off the servo drive output, resets the valve drive signal to zero (valve shutdown), and uploads the fault code to the main controller. The main controller then triggers the emergency shutdown procedure in linkage to ensure equipment safety.
