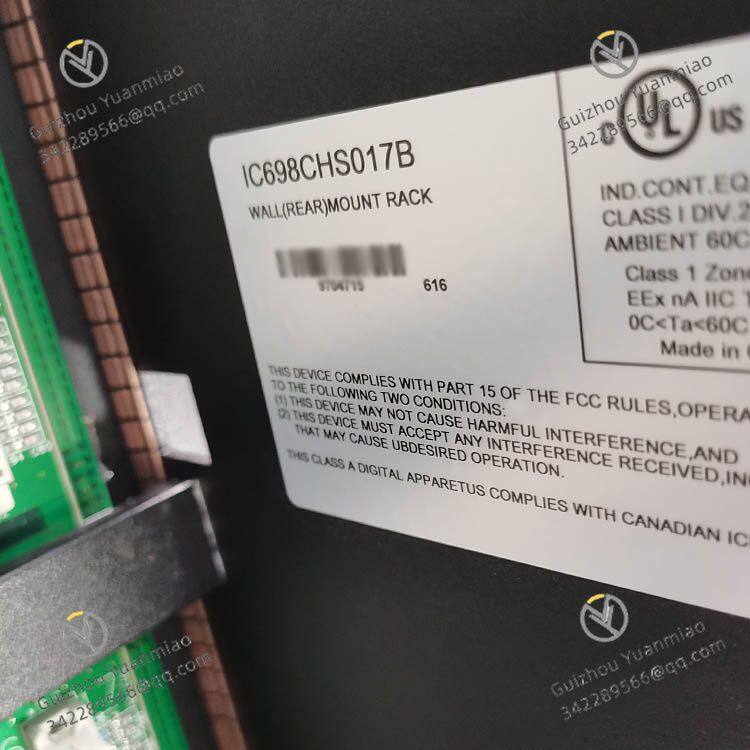

GE IC698CHS017B RX7i WALL (REAR) MOUNT RACK

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Material:

Other, Global universal model

Certification:

Other

Function:

Other, Global universal model

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Material Other, Global universal model

Certification Other

Function Other, Global universal model

Condition New

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other

Customized Non-Customized

Structure Other, Global universal model

The GE IC698CHS017B is a 17-slot rear-mount rack belonging to the RX7i PACSystems series by GE Fanuc. Below is its detailed information:

Manufacturer: GE Fanuc
Product Type: 17-slot I/O rack
Mounting Position: Rear mount
Dimensions: 11.15 inches (height) × 19.0 inches (width) × 7.5 inches (depth), which is equivalent to 283 mm (height) × 483 mm (width) × 190 mm (depth)
Weight: Approximately 2720 grams

Power Supply Slot: Slot 0 is designed for installing the RX7i power supply. It supports RX7i AC power supplies and can withstand higher currents.
Current Rating: For a 350W power supply, the maximum current is 60A; for a 100W power supply, the maximum current is 20A. Its total current rating is 60A at 5V DC and 4A at -12V DC.

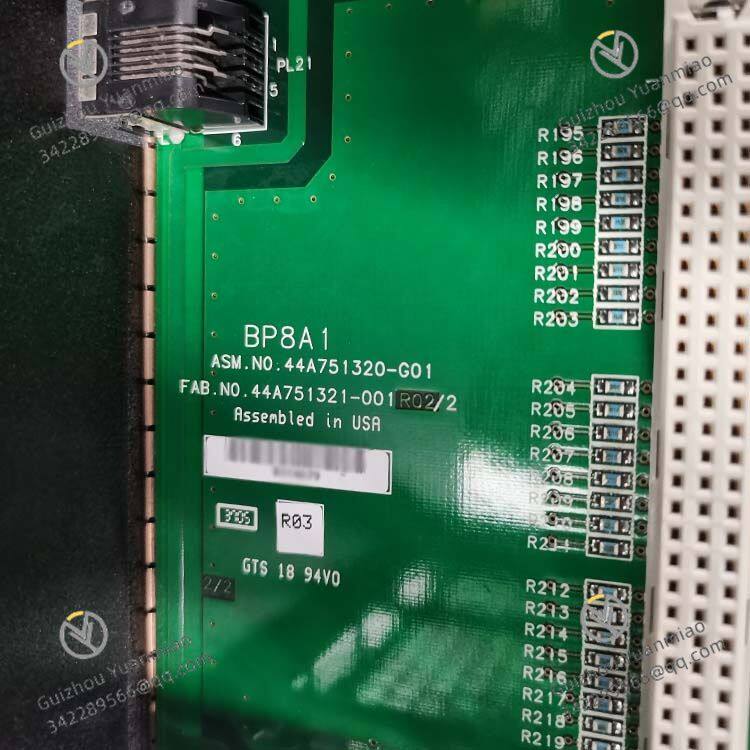

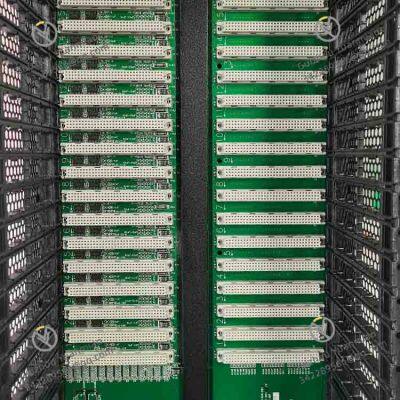

Backplane: Equipped with a VME64 backplane. The J2 connector supports a VME transmission speed of 64 bits per cycle, which is nearly 4 times the speed of standard VME-based systems. It is compatible with all standard VME modules, including VMIC and 90-70 series I/O modules.

Number of Slots: There are 17 I/O slots in total. Among them, Slot 1 is used for installing the CPU module, and Slot 0 is for the power supply. The slot spacing is 0.8 inches (20.3 mm), which can accommodate single-slot I/O modules.
Module Compatibility: It supports 15 single-width I/O modules, 8 double-width modules, or a combination of single-width and double-width modules. Each double-width 90-70 series module occupies two slots.

Shielding Grounding: For RX7i modules, the metal panel of each module should be firmly connected to the enclosure; for 90-70 series modules, the built-in grounding clips will make contact with the enclosure during installation.
Address Setting: The rack supports slot sensing for I/O modules. There is no need for jumpers or DIP switches to set the module address. The point reference of the I/O module is configured through the Cimplicity Machine Edition Logic Developer PLC software.
Bus Signals: The bus grant signals and interrupt acknowledge signals are connected in a daisy-chain configuration.
Protection Requirements: This rack has an open-frame design and must be installed in an enclosure with a protection rating of at least IP54 for use.
