GE IS420PPNGH1A Controller Gateway Module

GE IS420PPNGH1A Controller Gateway Module thumbnail-3

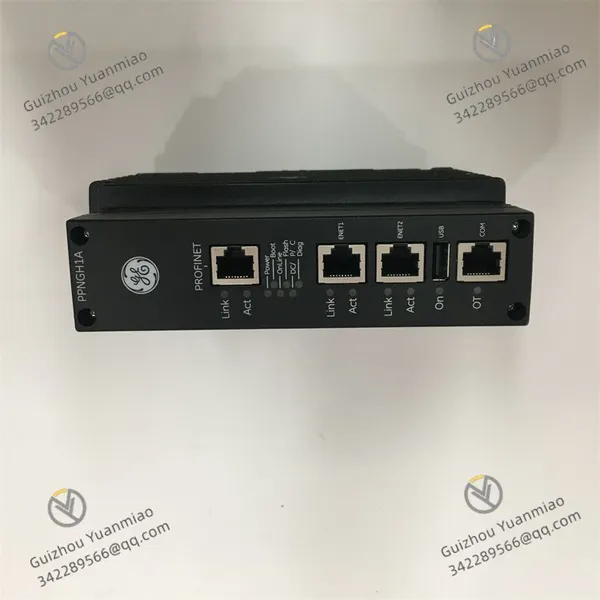

GE IS420PPNGH1A Controller Gateway Module photo-1

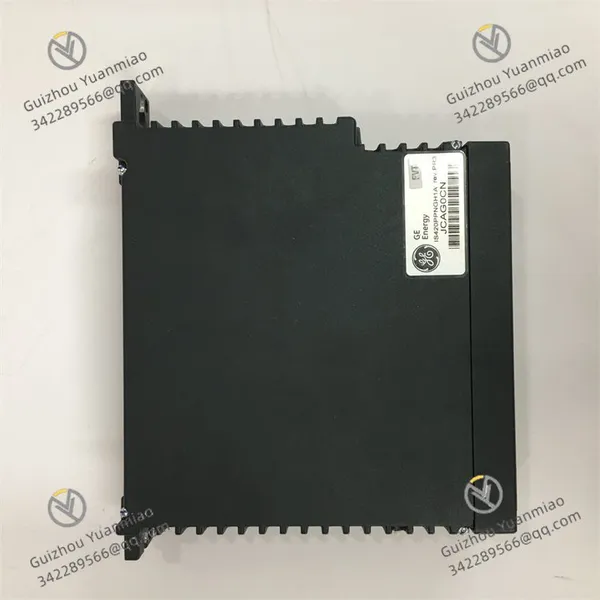

GE IS420PPNGH1A Controller Gateway Module photo-2

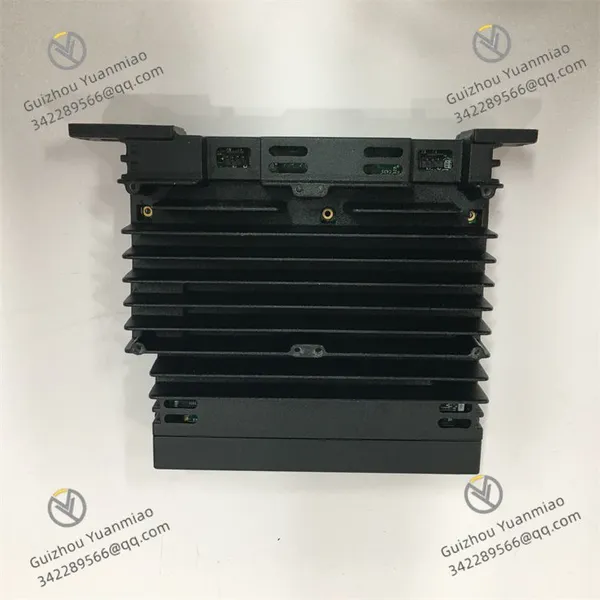

GE IS420PPNGH1A Controller Gateway Module photo-3

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guizhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -6°C to 65°C

Relative Humidity 5%~95% (non-condensing)

Storage Temperature -40℃~85℃

I. Overview

The GE IS420PPNGH1A is a Profinet gateway module specifically designed for integration into the Mark VIe system. Originating from the United States, it is manufactured by General Electric (GE). The Mark VIe system is one of the advanced Speedtronic turbine control systems developed by GE, widely used in gas turbine, hydro turbine, and steam turbine systems. Against this backdrop, the IS420PPNGH1A module enables high-speed communication between the Mark VIe controller and Profinet I/O devices by connecting the Mark VIe controller to the Profinet Local Area Network (LAN), significantly enhancing the overall performance and response speed of industrial automation systems.

This module adopts a single-module design and features natural air cooling, eliminating the need for additional battery or fan installation, which effectively reduces maintenance costs and fault risks. To ensure optimal heat dissipation, the device must be installed in a well-ventilated environment to prevent fan blockage or poor air circulation, and a vertical panel mounting method should be adopted. It is important to note that Ionet and Profinet cannot be supported by the same switch simultaneously; each network must be connected to an independent switch to ensure communication stability and independence. In practical applications, the PPNG board is typically used with an ESWA 8-port unmanaged switch or an ESWB 16-port unmanaged switch, and the wiring length generally ranges from 3 to 18 feet.

II. Technical Parameters

1. Core Hardware Parameters

Parameter Category	Specific Specifications
Processor Type	1066 MHz Intel Processor (EP80579)
Operating System	Runs on QNX Neutrino Operating System
Memory	256 DDR2 SDRAM
Product Type	Profinet Gateway Module
Weight	2.4 lbs (approximately 1.09 kg)
Dimensions	13.0 inches (length) × 4.0 inches (width) (approximately 33.02 cm × 10.16 cm)

2. Electrical and Environmental Parameters

Parameter Category	Specific Specifications
Input Voltage	24 VDC
Operating Temperature	22°F to 149°F (approximately -6°C to 65°C)
Storage Temperature	No explicit data available; presumably compliant with industrial standard ranges
Humidity Range	No explicit data available; presumably suitable for humidity levels in conventional industrial environments
Electromagnetic Interference Resistance	No explicit data available; presumably equipped with industrial-grade anti-interference capability

3. Communication Parameters

Parameter Category	Specific Specifications
Profinet Data Rate	Supports a maximum of 6 kb/ms
Network Interface	Suitable for Profinet network connection
Compatibility	Requires use with Control ST V05.04 or higher versions

III. Functional Features

1. Efficient Communication Gateway Function

As a Profinet gateway, the core function of the IS420PPNGH1A is to establish a high-speed communication bridge between the Mark VIe controller and the Profinet network. Through this module, the controller can exchange data with various Profinet I/O devices quickly and stably, enabling real-time monitoring and precise control of industrial production processes. For example, in a gas turbine control system, it can rapidly transmit data such as temperature and pressure collected by sensors to the controller, while promptly delivering control commands issued by the controller to actuators, ensuring the efficient and safe operation of the gas turbine.

2. Powerful Processor Performance

Equipped with a 1066 MHz Intel EP80579 processor, combined with the QNX Neutrino operating system and 256 DDR2 SDRAM, the module possesses excellent data processing and computing capabilities. This allows it to maintain efficient and stable operation when handling large volumes of industrial data, avoiding data transmission delays or packet loss, and providing strong support for the real-time performance of industrial automation systems. In complex industrial manufacturing production lines, when faced with data transmitted simultaneously by numerous I/O devices, this module can respond quickly to ensure the coordinated operation of all links in the production line.

3. Flexible Network Adaptability

Although Ionet and Profinet cannot share the same switch, this design enables the module to achieve more stable communication in their respective independent network environments. By being paired with different types of unmanaged switches (such as the ESWA 8-port or ESWB 16-port switches), the IS420PPNGH1A can adapt to a variety of industrial network topologies. It can be flexibly deployed in both small-scale industrial control systems and large-scale distributed production networks, meeting the communication needs of enterprises of different sizes.

IV. Application Scenarios

1. Energy Power Generation Field

In gas, hydro, and steam turbine power generation systems, the IS420PPNGH1A plays a crucial role. It connects the Mark VIe controller to various devices in the Profinet network, such as sensors, actuators, and smart meters. By collecting equipment operation data in real time and accurately issuing control commands, it realizes the optimized control of power generation equipment, improves power generation efficiency, and reduces energy consumption. Taking a large-scale gas-fired power plant as an example, after adopting this module, the power generation efficiency of the gas turbine increased by 5%, resulting in significant annual energy cost savings.

2. Industrial Manufacturing Production Lines

In the field of industrial manufacturing, the degree of automation of production lines is constantly improving, placing extremely high demands on the stability and real-time performance of communication between devices. The IS420PPNGH1A can connect PLC controllers to Profinet I/O devices, enabling close coordination between various processes in the production line. In an automobile manufacturing production line, through this module, devices such as robots, conveying equipment, and testing instruments can interact with data in real time, ensuring the precise assembly of auto parts and quality inspection, and greatly improving production efficiency and product quality.

3. Smart Factories and Automated Warehousing

With the advancement of Industry 4.0, smart factories and automated warehousing systems have become increasingly popular. The IS420PPNGH1A helps achieve interconnection between devices and systems in these scenarios. In automated warehousing systems, it connects the Warehouse Management System (WMS) to devices in the Profinet network such as stackers, conveyors, and sorting robots, enabling automated storage, sorting, and distribution of goods, improving warehousing management efficiency, and reducing labor costs.

Product Tags: IS420PPNGH1A
