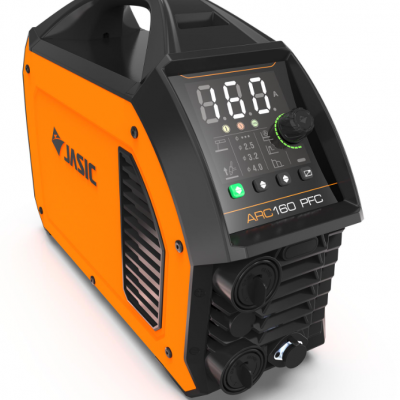

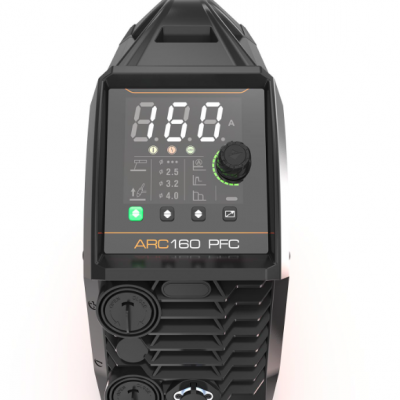

EVO20 ARC160 PFC Z2S22
JASIC EVO20 ARC 160 PFC offers reliable welding performance and a user-friendly experience.
· MMA & TIG capabilities
· HD digital panel with ClearVision tech
· Easy and quality welding with Synergic MMA
· Effortless arc ignition & high consistency by Smart Lift TIG
· Quality welding results with anti-stick, hot start and arc force
· Break free from distance constraints with flexible remote control solution
· Improve overall energy efficiency with power factor correction (PFC)
| ARC160 PFC Z2S22 | |||
| Input power | AC95～265 V, 50/60 Hz | ||
| AC115 V | AC230 V | ||
| Open circuit voltage | 78 V | ||
| MMA | Rated input current | 28.7 A | 22.6 A |
| Rated input power capacity | 3.3 kVA | 5 kVA | |
| Output current range | 20～110 A | 20～160 A | |
| Rated duty cycle | 25% | ||
| TIG | Rated input current | 23.3 A | 14.0 A |
| Rated input power capacity | 2.2 kVA | 3.2 kVA | |
| Output current range | 10～120 A | 10～160 A | |
| Rated duty cycle | 25% | ||
| Efficiency | 86% | ||
| Power factor | 0.99 | ||
| Idle state power | MMA: 38.2 W TIG: 7 W | ||
| Protection class | IP23S | ||
| Insulation class | H | ||
| Dimensions L×W×H | 413×150×311 mm | ||
| Net weight | 7.2 kg | ||
