WOODWARD 8256-021 Speed Control Module

WOODWARD 8256-021 Speed Control Module photo-1

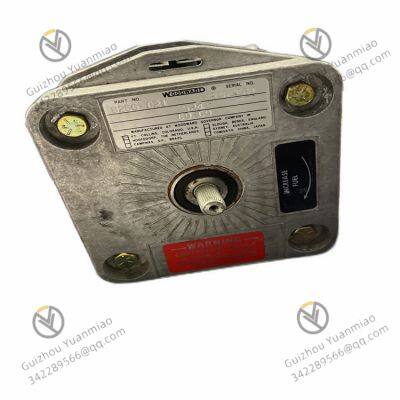

WOODWARD 8256-021 Speed Control Module photo-2
WOODWARD 8256-021 Speed Control Module photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
Other
Function:
Other
Application:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Certification Other
Function Other
Application Other
Brand Other
Number of Stator Other
Number of Poles Other
Casing Protection Other
Starting Mode Other
Speed Other
WOODWARD    8256-021   Speed control module

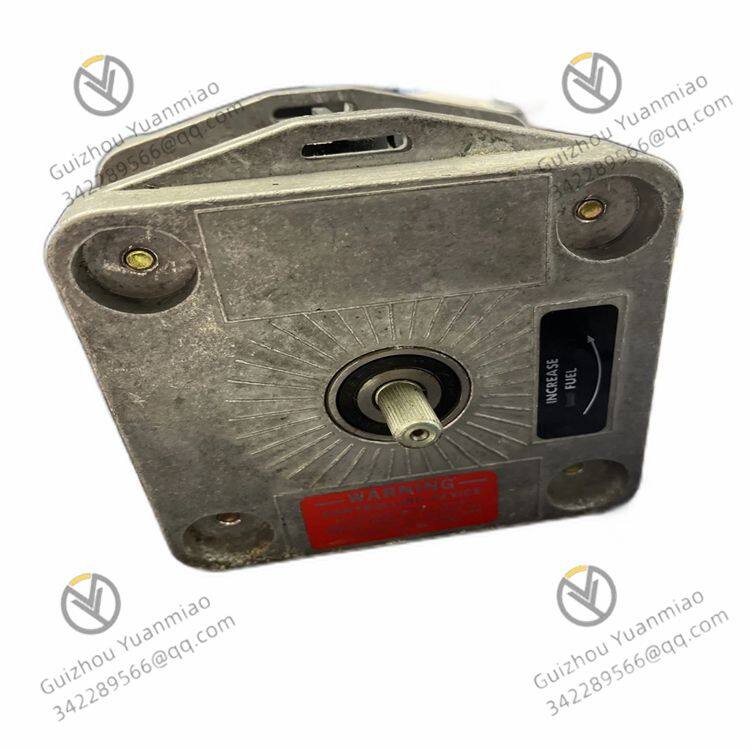

8256-021—02


Basic Information


  • Product Type: It is a rotary actuator belonging to the Electric Governor (EPG) series.

  • Place of Origin: United States.

  • Power Supply: 24VDC.

  • Weight: Approximately less than 2 pounds.

  • Ambient Temperature Range: -40℃ to 93℃.

  • Product Status: Discontinued, but still available in the market.


Working Principle: This module can automatically increase or decrease the fuel supply of the fuel injection pump according to the load changes of equipment such as diesel engines, so as to make the equipment operate at a stable speed. It can use isochronous control or single-phase droop control. By monitoring the engine speed and load conditions, it adjusts the output signal to control the actuator, thereby regulating the engine's fuel supply or other related parameters, ensuring that the engine maintains a stable speed under different working conditions.

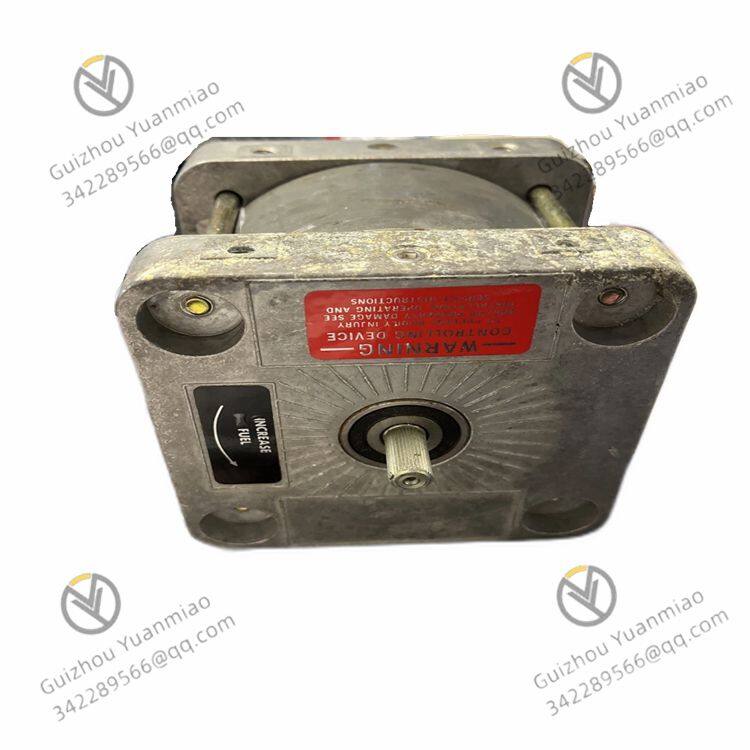

8256-021—03

Application Fields


  • Power Industry: Used for speed control of equipment such as diesel generators and steam turbines to ensure the stable operation of power generation equipment and the output of stable electricity.

  • Industrial Field: In industries such as wood processing, stone processing, rubber, petroleum, chemical industry, and steel, it can control the speed of various power equipment to meet the needs of different production processes.

  • Transportation Industry: For example, in the power system of ships, the precise control of engine speed ensures the stability and safety of ship navigation.

  • Other Fields: It can also be applied to related equipment in industries such as environmental protection, water treatment, and refrigeration to achieve stable operation and energy-saving optimization of the equipment.


Product Features


  • No need for mechanical drive or hydraulic supply: It can independently complete the speed regulation function, reducing complex mechanical transmission devices and hydraulic systems, and lowering equipment costs and maintenance difficulties.

  • Multiple control modes: It has two modes of isochronous control and single-phase droop control, which can be flexibly selected according to actual application scenarios and needs.

  • Compatible with load-sharing accessories: It can be used in conjunction with other equipment to achieve reasonable distribution and sharing of loads, improving the operating efficiency and stability of the entire system.

  • Switch-selected dual dynamics: Through the switch-selected dual dynamics function, the response speed and control parameters can be quickly adjusted according to different working conditions, improving the dynamic performance of the system.

  • Corrosion-resistant material design: Made of corrosion-resistant materials, it can operate stably for a long time in harsh working environments, extending the service life of the product.


Installation and Use


  • Installation Location: Generally, it can be installed on the panel close to the engine, but should not be directly installed on the engine.

  • Wiring Requirements: There are specific requirements for wire length; the maximum wire length can be 35 feet (14AWG) and/or 20 feet (12AWG).


Product Tags: 8256-021
