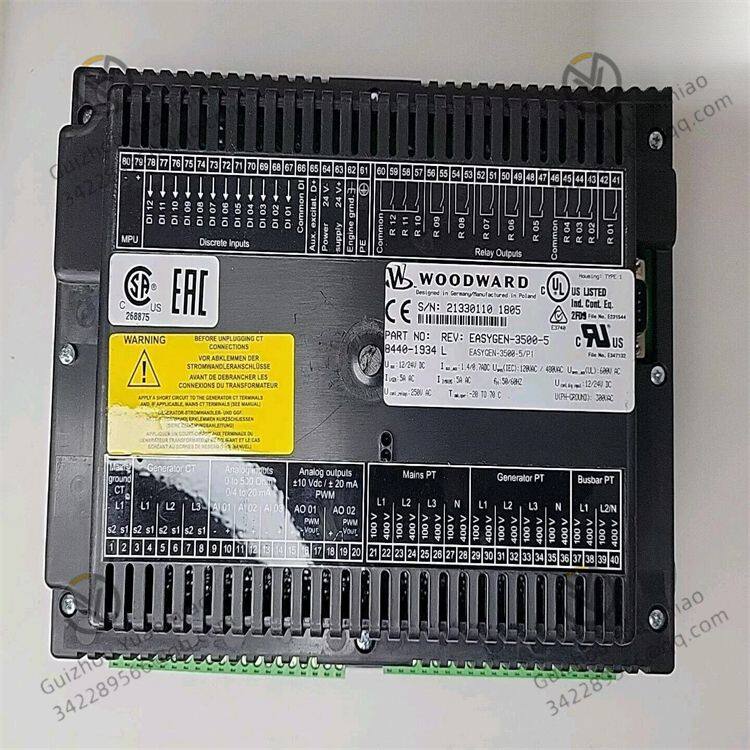

WOODWARD 8440-1934 Multi-functional Control Module

Multiple operating modes: It has stop, manual, automatic, and no-load/load test modes to meet the needs of different working conditions.

Load management function: It includes automatic basic load management and peak shaving functions, which can optimize generator load distribution and improve the operating efficiency of the power system.

Synchronous operation function: It supports speed-up synchronization, enabling smooth grid-connection operation of generators. It also has an automatic mains failure (AMF) operation function. When the mains power fails, it can automatically switch to generator power supply to ensure the continuity of power supply.

Strong communication capability: It can be fully connected with up to 32 generators and 16 LS-5 circuit breaker controllers, facilitating the construction of large and complex power generation control systems.

Compact design: Usually installed on the front panel, it occupies small space and is convenient for installation and deployment in different equipment and systems.

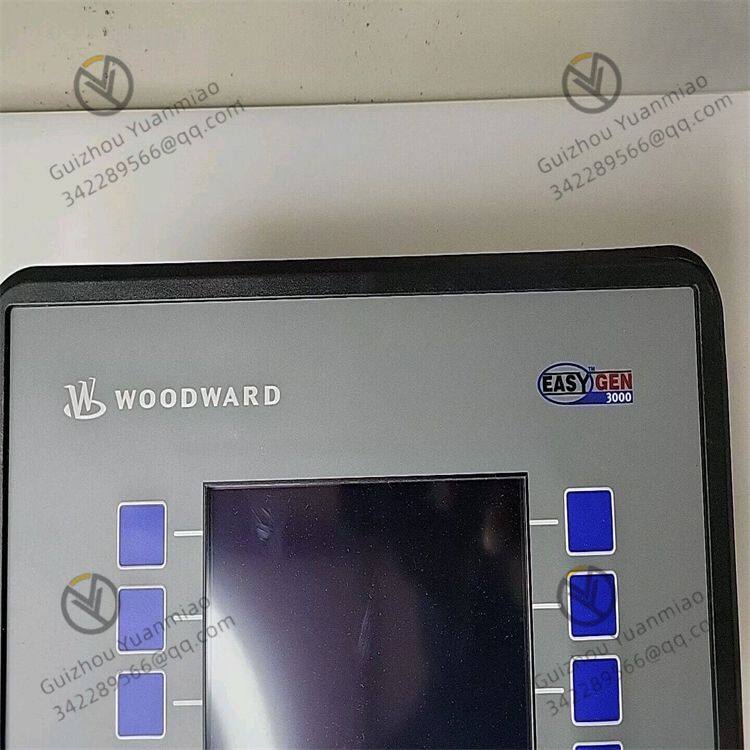

User-friendly human-machine interface: It may be equipped with a display screen, allowing operators to intuitively view system parameters and operating status, and perform relevant settings and operations through panel buttons.

Password protection: The configuration control access is protected by a password, providing multiple levels of access, which can prevent unauthorized personnel from modifying settings and ensure the safety and stability of the system operation.

Input range: 12/24 VDC (8 to 40 VDC).

Measurement frequency: 50/60Hz (40 - 85 Hz).

Power supply: 12/24 VDC (8 to 40 VDC).

Current transformer input: 5A.

Operating temperature: Referring to products of the same series, it is estimated to work in an environment of -20℃ to 70℃.

Industrial power generation systems: It can be used in self-owned power generation systems in factories, mines, and other places to realize the control and management of generators, ensure the stability of power supply for industrial production, and automatically adjust the operating state of generators according to changes in production load to achieve energy-saving purposes.

Backup power supply systems: In places with extremely high requirements for power supply reliability, such as data centers, hospitals, and banks, it serves as the control module of the backup power supply. When the mains power is interrupted, it can quickly start the generator and automatically switch to generator power supply to ensure the uninterrupted operation of key equipment.

Distributed power generation systems: It is suitable for distributed power generation systems containing various power generation equipment (such as diesel generators, gas generators, etc.). It can uniformly manage and control each generator, realize the parallel operation and load balancing of multiple generators, and improve the overall performance and reliability of the distributed power generation system.
