Material
Other, Global universal model
Condition
Other, Global universal model
Task
Other, Global universal model
Mathematical Model
Other, Global universal model
Signal
Other, Global universal model
Customized
Non-Customized
Structure
Other, Global universal model
Operating temperature
-20℃ to +70℃
Humidity
5% - 95% (non - condensing)
Dimensions
120mm × 100mm × 40mm
I. Overview

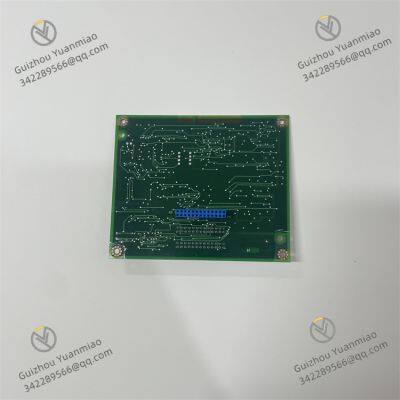

ABB 3ASC25H219B DATX133, as a professional pulse feedback module, plays an extremely crucial role in the process of industrial automation. ABB has meticulously created this high-performance product relying on its profound accumulation in the field of electrical and automation technology. It is mainly used to accurately monitor the operating status of motor rotors, provide precise data for motor control systems, ensure the stable and efficient operation of motors, thereby comprehensively improving the performance of industrial automation systems. In the automated production lines of automobile manufacturing, where multiple motors work collaboratively, this module feeds back motor rotor information in real-time, ensuring the accurate operation of each link in the production line and improving production efficiency and product quality.
II. Technical Parameters
(1) Electrical Characteristics
Operating Voltage: Designed with a 220V operating voltage, it is suitable for most industrial power environments. The power management circuit inside the module can stabilize and filter the input voltage. Even if the voltage fluctuates, it can maintain stable operation, reducing system failures caused by voltage instability and ensuring the continuity of industrial production.
Output Frequency: With an output frequency of up to 30kHz, it can quickly capture changes in the position and speed of the motor rotor. In high-speed running automated equipment, it can provide real-time and accurate data for the control system, realizing precise control of the motor, and meeting scenarios with extremely high requirements for rapid response and precise control, such as electronic chip manufacturing equipment.
(2) Physical Specifications
Dimensions: Adopting a compact design, with dimensions of 120mm × 100mm × 40mm (length × width × height), it can be flexibly installed in industrial control cabinets or equipment with limited space. It does not occupy too much space, facilitating system integrators in system layout and improving the space utilization of industrial automation systems.
Weight: With a weight of only about 250g, it is easy to operate during installation, reducing installation difficulty. When equipment needs to be moved or maintained frequently, it also reduces the inconvenience caused by the module being too heavy, improves the efficiency of equipment maintenance and repair. Moreover, the lightweight design does not affect its sturdiness and durability, and it can adapt to vibrations and impacts in industrial sites.
(3) Storage and Communication Capabilities
Memory Configuration: Equipped with 32KB RAM for temporarily storing real-time data generated and processed during operation, such as the real-time position and speed of the motor rotor and intermediate results of control algorithms, ensuring smooth data processing without loss or Laggy. 128KB ROM stores system programs, configuration information, and fixed parameters, which will not be lost when the power is off, ensuring that the module can quickly resume normal working status when restarted next time.
Communication Interface: Supports the Modbus TCP/IP communication protocol. Through a standard network interface, it can seamlessly connect with various Modbus-enabled devices, such as PLCs, upper computer monitoring systems, intelligent sensors, and actuators. This protocol is based on Ethernet, with the advantages of high speed, reliability, and easy networking, enabling the module to stably transmit data in industrial automation networks, realize information sharing and collaboration between devices, and help build large and complex industrial automation control systems.
(4) Environmental Adaptability
Temperature Range: The operating temperature range is -20℃ to +70℃, which can adapt to extremely cold and high-temperature industrial environments. Whether it is outdoor industrial facilities in northern winter, high-temperature workshops in southern summer, or high-temperature workshops in metallurgy, chemical industry, etc., it can work normally, ensuring the accuracy and stability of motor feedback data and maintaining industrial production unaffected by temperature.
Humidity Adaptation: It can operate normally in an environment with a relative humidity of 5% - 95% (non-condensing). The module adopts advanced moisture-proof technology, the circuit board is treated with a moisture-proof coating, and the interface is sealed, effectively preventing short circuits and corrosion caused by humid air. It is suitable for humid industrial places such as food processing, sewage treatment, and ships, prolonging the service life of the module and reducing equipment maintenance costs.
III. Functional Features
(1) High-Precision Feedback Mechanism
Advanced Detection Technology: Using advanced sensor technology and signal processing algorithms, it accurately measures the position and speed of the motor rotor. It collects and analyzes the pulse signals generated by the motor operation at high speed and accurately, controls the measurement accuracy of the rotor position within a very small error range, provides extremely accurate feedback data for the motor control system, meets the high-precision control requirements of precision processing equipment for motors, and improves product processing accuracy.
Real-Time Data Transmission: Relying on the high output frequency of 30kHz, it transmits the collected rotor information to the motor control system in real-time. The state of the motor during operation may change instantly due to load, power fluctuations, etc. The real-time transmission function of this module enables the control system to obtain changes in time and make adjustments quickly, ensuring that the motor is always in the best operating state, and improving the dynamic response performance and stability of the system.
(2) Flexible Configuration and Strong Expandability
Modular Design Concept: Users can flexibly configure the module parameters and functions according to actual application needs. For different types of motors, such as AC asynchronous motors, DC motors, synchronous motors, etc., the module can be adapted to motor characteristics and control requirements by configuring parameters. The module has good expandability. When the industrial automation system is upgraded or its functions are expanded, it can be easily combined with other ABB modules or third-party equipment, such as connecting more sensors to obtain more motor operation information, or cooperating with communication modules to realize complex remote monitoring, meeting the evolving production needs of enterprises.
Multi-Channel Support Capability: Equipped with 16 channels, it can monitor and feedback multiple motors or multiple operating parameters of the same motor at the same time. In large automated production lines where multiple motors work collaboratively, the multi-channel function can centrally monitor and manage the motor operating status, reduce the number of modules required in the system, lower system costs, and improve system integration and reliability.
(3) High Reliability and Stability Guarantee
Robust Hardware Construction: The hardware uses high-quality electronic components, which have undergone strict quality inspection and screening, and are not prone to failures during long-term use. The shell is made of high-strength materials, with good mechanical protection performance, resisting physical impacts such as collisions and vibrations in industrial sites, and protecting internal circuits. The circuit layout is carefully optimized to reduce signal interference and electromagnetic radiation, improving the working stability of the module.
Perfect Protection and Self-Diagnosis Mechanism: It has multiple protection functions such as overvoltage, overcurrent, and short circuit protection. When an abnormal situation is detected, the protection circuit quickly cuts off the abnormal signal path to prevent damage to the module, improving safety and reliability. The module also has a fault self-diagnosis function, which monitors its own working status in real-time. When a fault is found, it diagnoses immediately and sends fault information to the external system through indicator lights or communication interfaces, facilitating maintenance personnel to quickly troubleshoot and repair, reducing equipment downtime and improving production efficiency.
(4) Advantages of Convenient System Integration
Application of Standard Interfaces and Protocols: It supports the Modbus TCP/IP communication protocol and adopts standard electrical and mechanical installation interfaces, which can be easily integrated with other industrial equipment that meets the standards. Whether it is connected with ABB's own control system products or third-party brand PLCs, sensors, actuators, etc., system integration can be completed with plug-and-play or simple configuration, greatly shortening the construction and commissioning cycle of industrial automation systems, reducing the difficulty and cost of system integration, and improving enterprise production efficiency.
Manifestation of Wide Compatibility: Following general industrial standards and protocols, it has good compatibility in industrial automation systems of different brands and models. When enterprises upgrade or transform equipment, they can integrate this module into the existing system without changing the original system architecture, optimize and improve motor control performance, avoid large-scale equipment replacement and rewiring caused by compatibility issues, and save capital and time costs for enterprises.
