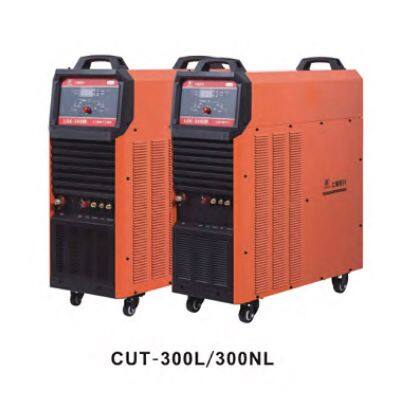

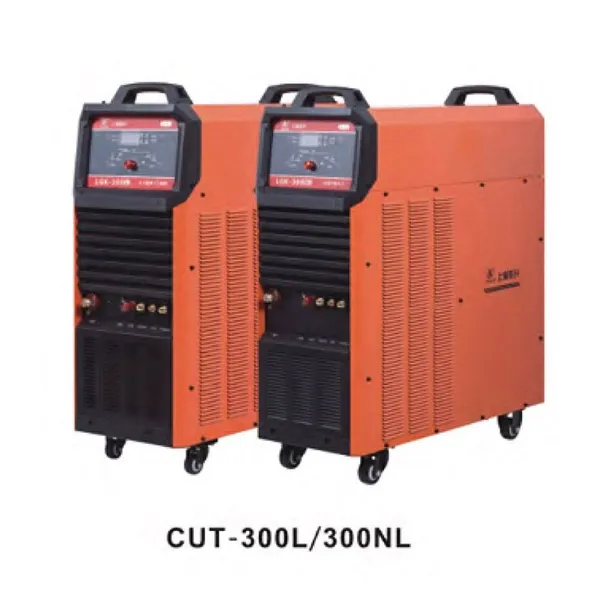

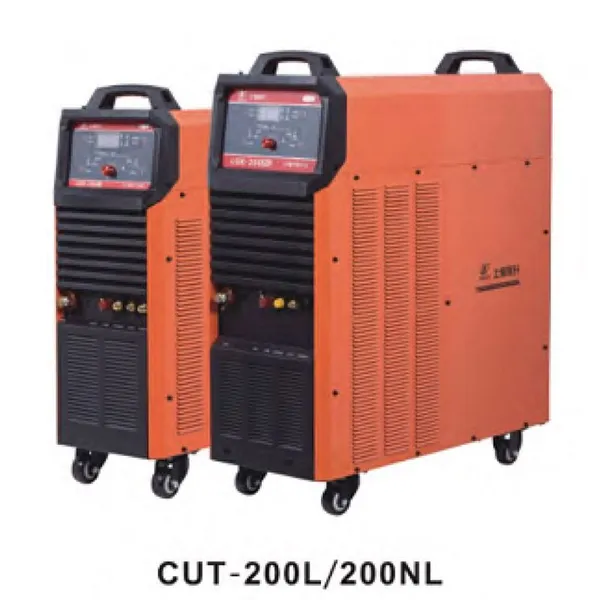

Help CenterShanghai Donsun Welding Group Built in Air Pump Built in Water Tank High Power Plasma Cutting LGK-200L/200NL/300L/300NL
Related Products
-
Shanghai Donsun Welding Group Built in Plasma Cutting and Welding Machine LGK-80/100DV/100N/100BN/120BN/160BNUS$ 200 - 500MOQ: 1 Set -
Shanghai Donsun Mig Mag IGBT NCB-300T/300TF Welding MachineUS$ 200 - 300MOQ: 1 Set
-
Shanghai Donsun Welding Group Engineering Machine MMA MIG MAG GMAW Welding Machine MIG-350D/500D Series IGBTUS$ 200 - 500MOQ: 1 Set
-
Shanghai Donsun Heavy Industry Dual IGBT Soft Switch MMA MIG MAG Welding MachineUS$ 300 - 600MOQ: 1 Set
-
Shanghai Donsun Welding Group ZX7-250ST/315ST/400ST MINI MMA Manual Welding Machine Hand Welding Stick ElectrodeUS$ 350 - 700MOQ: 1 Set
INDUSTRIAL.BUILT-IN COMPRESSOR.BUILT-IN CHILLER,CUT.MMA
·Untouch Start System-Smooth Arc-Striking with HF Control.
Built-in compressor, built-in cooling tank
Continuous adjustment of cutting current
330V~500V wide voltage range
·Rapid Arc Restrike-Quality narrow cutting and excellent travel speed
Function Post Gas for effective cooling of the cutting torch.
·Cool Operation, Long Consumable Life-Cutting accessories with
competitive price and performance.
·Auto-Protection against Low air pressure, over-voltage, over-current and
over-heated.
Energy Saving - Compared with the traditional cutting machine more
efficient
·Cutting materials: carbon steel, stainless steel, aluminum, copper.
Inverter technology
Intelligent air cooling
Built-in /Outside compressor
ARC/PLASMA CUTTER dual functions
Intelligent interface adjustment
Model |
CUT-200L |
CUT-200NL |
CUT-300L |
CUT-300NL |
Input voltage(V) |
3P 380v |
3P 380V |
3P 380V |
|
Frequency(Hz) |
50/60 |
50/60 |
50/60 |
50/60 |
Rated input current(A) |
62 |
68.5 |
113.4 |
120 |
Duty cycle(%)(40℃) |
60 |
60 |
60 |
60 |
No-load voltage(V) |
337.5 |
337.5 |
360 |
360 |
Output current (A) |
25-180 |
25-180 |
25-270 |
25-270 |
Output voltage(V) |
152 |
152 |
188 |
188 |
ARC-initiating |
H-F Untouch |
H-F Untouch |
H-F Untouch |
H-F Untouch |
Efficiency(%) |
85 |
85 |
85 |
85 |
Cutting thickness (mm) |
70 |
70 |
90 |
90 |
Weight (kg) |
105 |
120 |
110 |
130 |
Dimension(mm) |
725*300*810 |
850*360*860 |
850*360*860 |
850*360*860 |
