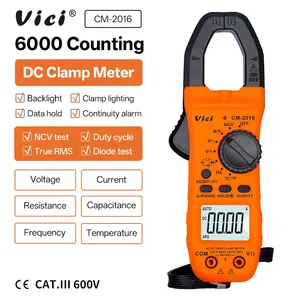

CM-2016 AC/DC 3 5/6 counts Digital Clamp Meter
Features:
Clamp opens 28mm
Portable design, easy use
Clamp light, Backlight, Flash light
Large LCD display makes reading clear
CE standard design, improves the safety of the test
Full function protection, strong anti-interferential performance
Duty cycle test, REL test, NCV, TRMS test, data hold, APO function
Technical Data:
Basic function |
Range |
Accuracy |
DCV |
600mV/6V/60V/600V |
±(0.5%+5) |
ACV |
6V/60V/600V |
±(0.8%+5) |
DCA |
60A/600A/800A |
±(1.5%+5) |
ACA |
60A/600A/800A |
±(1.5%+5) |
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+1) |
Capacitance |
6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF |
±(2.5%+5) |
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
±(0.5%+4) |
Temperature |
(-40 to 1000 )℃, (-40 to 1832 ) ℉ |
±(1.0%+5) |
Special Function:
Model |
CM-2016 |
Diode test |
√ |
Continuity test |
Less than 50Ω |
|
Low battery indicator Low battery indicator |
Approx. less than 2.6 V |
Data hold |
√ |
NCV |
√ |
Auto power off |
About 15 minutes |
TRMS test |
√ |
Function protection |
√ |
Clamp light |
√ |
Backlight display |
√ |
Input impedance |
10MΩ |
Sampling rate |
3 times/s |
AC frequency response |
40 to 2000Hz |
Operation method |
Auto or manual range |
Max display |
6000 |
Clamp opens |
28mm |
Battery |
3V (2*AAA battery) |
General Characteristic：
Meter color |
Orange and Black |
Meter weight |
About 200g (including battery) |
Meter size |
185*65*32mm |

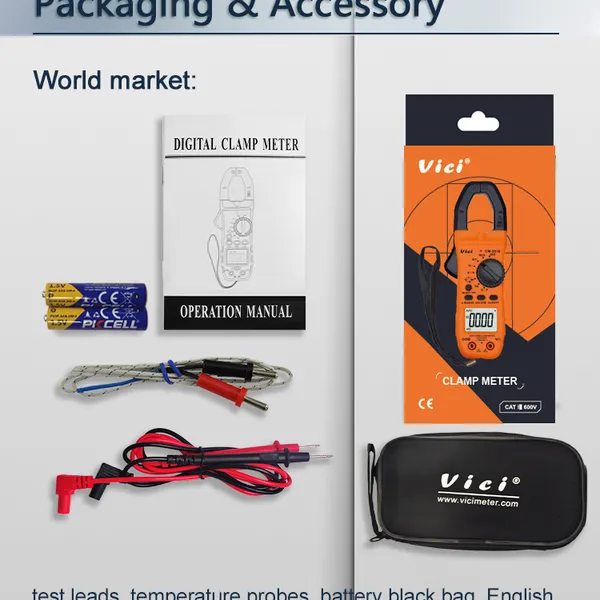

Standard accessory |
Test leads, battery, manual, temperature probe, carrying case |
Standard packing |
Gift box |
Carton size |
41.5*28*46.5CM |
Standard QTY per carton |
40pcs |
G.W per carton |
15kg |
