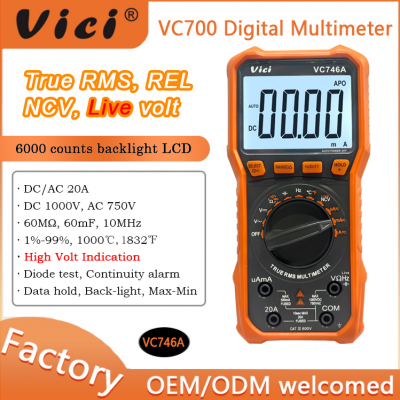

VC746A 5999 Counts Digital Multimeter
Features:
1. New shell panel, streamlined design, comfortable handle;
2. Large HD LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance; Full function protection;
4. Auto power off when there is no measurement in 15 minutes;
5. Unit symbol display, easy to read; Lighting function, backlight display;
6. True RMS , NCV, Live wire, Relative value measurements, frequency/duty cycle and data hold function.
Technical Data:
Basic function |
Range |
Basic Accuracy |
DCV |
600mV/ 6V/ 60V/ 600V/1000V |
±(0.5%+5) |
ACV |
6V/ 60V/ 600V/ 750V |
±(0.8%+10) |
DCA |
600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A |
±(1.0%+5) |
ACA |
600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A |
±(1.5%+10) |
Resistance |
600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ |
±(0.8%+2) |
Capacitance |
60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 60mF |
±(2.5%+5) |
Frequency |
10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ 10MHz |
±(0.5%+4) |
Temperature |
-40℃～1000℃ | -40℉～1832℉ |
±(1.0%+5) |
Specific Function:
Model |
VC746A |
Max. display |
6000 |
True RMS |
√ |
NCV |
√ |
Live test |
√ |
High voltage indication |
√ |
Data hold |
√ |
Function protection |
√ |
Torch function |
√ |
Backlight display |
√ |
Duty cycle |
1%~99% |
Diode test |
0V~3.3V, it displays “OL” if over 3.3V |
Continuity alarm |
Less than 50Ω, it displays “OL” if over 610Ω |
Low battery indicator |
Approx. less than 2.4 V |
Auto power off |
About 15 minutes |
Input impedance |
10MΩ |
Sampling rate |
3 times/s |
AC frequency response |
40Hz-2kHz |
Operation method |
Manual or Auto range |
