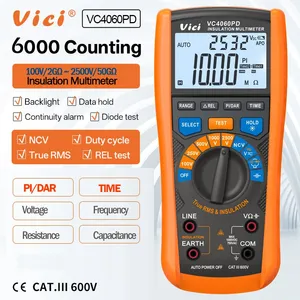

VC4060PD Insulation Multimeter
◆ Integrated insulation and Electrical parameters measurements;

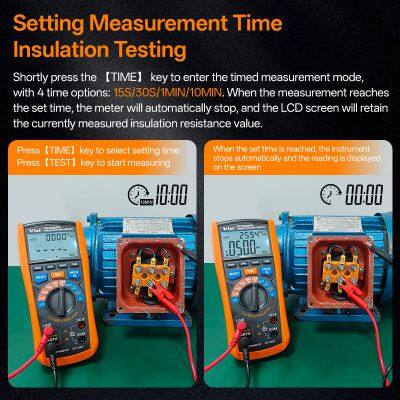

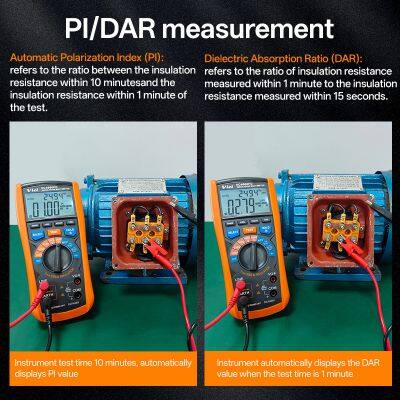

◆ PI/DAR function and measurement time selecting (@insulation resistance range);
◆ True RMS, NCV, REL, Diode and Continuity tests; Backlit display, Data hold, Low voltage indication, Auto power off;
◆ Applied to new energy vehicle repair, motor cables, mechanical and electrical equipment, telecommunication equipment, power facility installation and project acceptance, etc.
Technical specifications:
Basic function |
Range |
Basic accuracy |
Insulation Resistance |

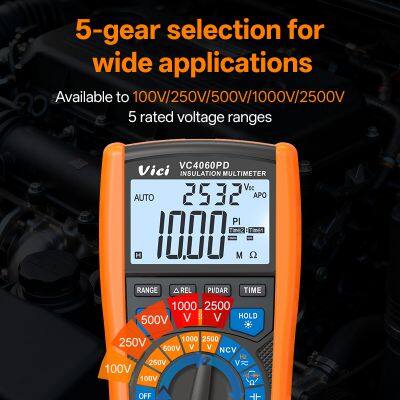

2GΩ/100V, 5GΩ/250V, 10GΩ/500V, 20GΩ/1000V |
±(3.0%+5) |
50GΩ/2500V |
±(5.0%+5) |
|
DC Voltage |
6V/60V/600V/1000V |
±(0.4%+1) |
AC Voltage |
6V/60V/750V |
±(0.5%+2) |
Resistance |
600Ω/600kΩ/6MΩ/60MΩ |
±(2.0%+5) |
Capacitance |
1nF/10nF/100nF/1μF/10μF/100μF /1mF/10mF/100mF |
±(2.0%+5) |
Frequency |
10Hz/100Hz/1kHz/20kHz/200kHz |
±1.0% |
Special function:
Model |
VC4060PD |
Max. display |
6000 |
Operation method |
Manual/Auto range |
Measuring time selecting |
√ |
PI/DAR indication |
√ |
True RMS, NCV, REL, Diode and Continuity test |
√ |
Data hold |
√ |
Backlight display |
√ |
AC frequency response |
40Hz~1kHz |
Auto power off |
Approx.15minutes |
Low battery indication |
Approx. less than 7.6V |
Sampling rate |
2times/s |
LCD size |
65×40mm |
Power supply |
9V (6x1.5V AA) |
Power consumption |
Max. 5W, standby mode is less then100uW |
Safety level |
CAT. III 600V |
General Info:
Color |
Orange holster and Grey device |
Weight |
480g (including battery) |
Meter size |
200X92X50mm |
Packaging style |
Gift box |
