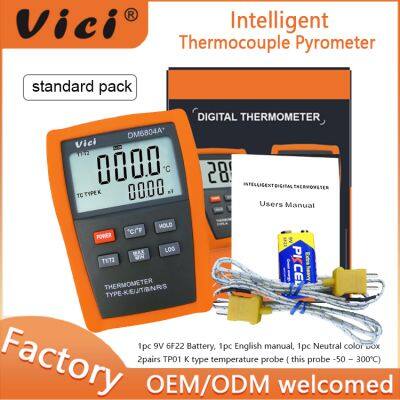

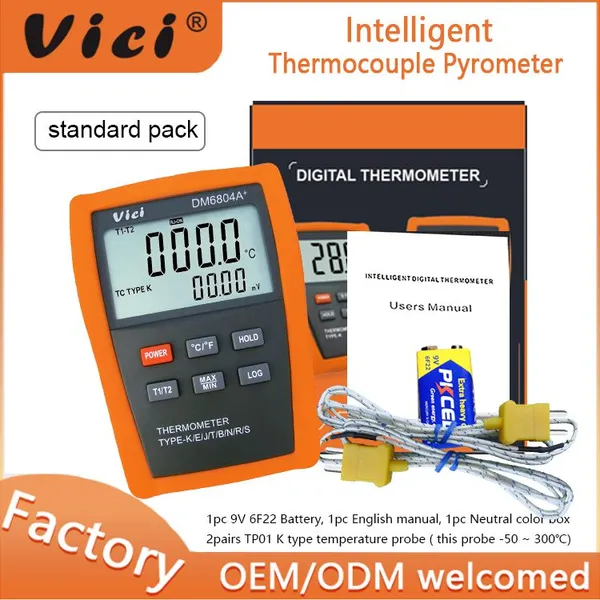

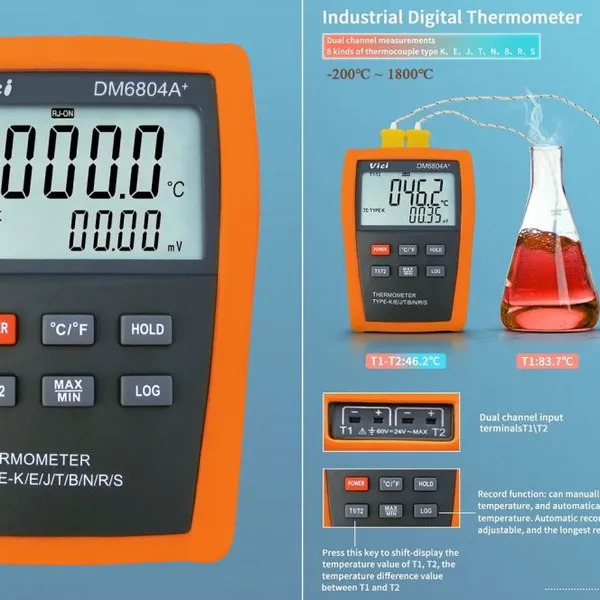

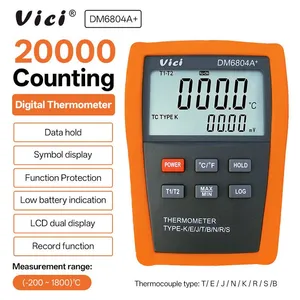

DM6804A+ Dual Display Intelligent Digital Thermometer
Features:
1.Dual channel temperature measuring(accuracy±0.3%)，display T1、T2、T1-T2 ；
2.Support K、E、J、T、N、B、R、S thermocouples；
3. It may be set cold temperature automatic saving;
4.℃ and ℉ display；
5.Dual display: display max .min and relative mV value of input temperature；
6.Record function: Support manual record 2500pcs temperature, automatic record 6000pcs temperature.Automatic record interval is adjusted，the longest continuity record time is 99 hours.
Technical Data:
Thermocouple type |
Input range |
Resolution |
Accuracy |
R |
-40～1760℃ |
1℃ |
-40～500℃: ±(0.5%+2℃) 500℃～1760℃: ±(0.4%+2℃) |
S |
-20～1760℃ |
1℃ |
|
B |
400～1800℃ |
1℃ |
400℃～800℃: ±(0.5%+2℃) 800℃～1000℃: ±(0.4%+2℃) 1000℃～1800℃:±(0.3%+2℃) |
E |
-200～1000℃ |
0.1℃ |
-200℃～0℃: ±(0.3%+1℃) 0℃～500℃: ±(0.3%+2℃) |
K |
-200～1370℃ |
0.1℃ |
-200～0℃: ±(0.3%+2℃) 0℃～800℃: ±(0.3%+1℃) 800℃～1370℃: ±(0.5%+2℃) |
J |
-200～1200℃ |
0.1℃ |
-200～0℃: ±(0.3%+1℃) 0℃～1200℃: ±(0.3%+2℃) |
T |
-200～400℃ |
1℃ |
-200～0℃: ±(0.3%+1℃) 0℃～400℃: ±(0.3%+2℃) |
N |
-200～1300℃ |
0.1℃ |
-200～0℃: ±(0.5%+2℃) 0℃～1300℃: ±(0.3%+2℃) |
Remark: T1-T2 accurate: ±[0.3%(T1-T2 reading)＋2] Input resistance 1GΩ adopts ITS-90 thermometric scale.
Special Function:
Model |
DM6804A+ |
Low battery indication |
Approx. less than 7.5V |
Data hold |
√ |
Unit symbol display |
√ |
Function protection |
√ |
Anti-shock protection |
√ |
Sampling rate |
2.5 times/s |
Operation way |
Manual range |
Max. display |
19999 |
LCD size |
67x40mm |
Battery |
9V (6F22) |
Power consumption |
Quiescent current approx. 3.5mA |
General Characteristic:
Color |
body-dark grey , holster-orange (Pantone No.:1495U) |
Weight |
250g（including battery） |
Meter size |
130×95×28mm |
Standard accessory |
|
Packing |
Gift box |
Standard accessory |
60pcs |
Carton size |
45.5*32.5*43CM |
Standard G.W per carton |
20kg |
