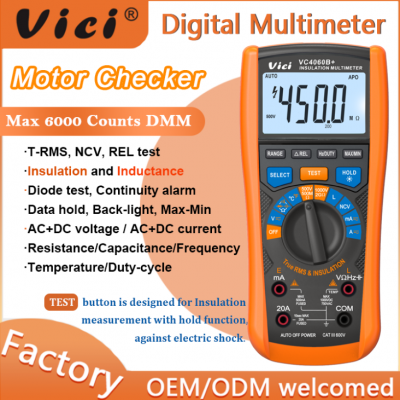

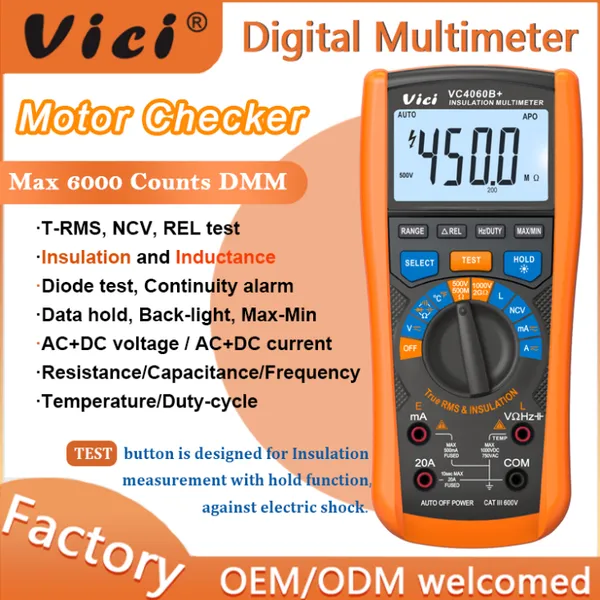

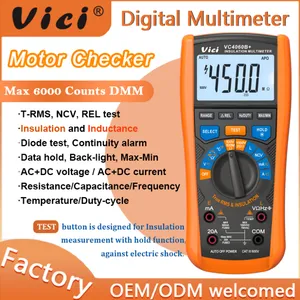

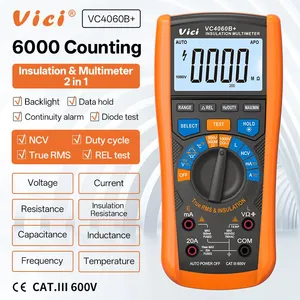

Vicimeter New Energy Vehicle Motor Checking Insulation Inductance Multimeter VC4060B+
Features:
1. New type holster, streamlined design, comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance, full function protection;
4. Auto power off when there is no measurement in 15 minutes;
5. Unit symbol display, easy to read; backlight display;
6. Insulation Resistance Test, True RMS, non-contact voltage detection, inductance, frequency/duty cycle, and data hold function.
Technical specifictaions:
Basic function |
Range |
Accuracy |
DCV |
600mV/6V/60V/600V/1000V |
±(0.5%+5) |
ACV |
6V/60V/600V/750V |
±(0.8%+10) |
DCA |
6mA/60mA/600mA/6A/20A |
±(1.0%+5) |
ACA |
6mA/60mA/600mA/6A/20A |
±(1.5%+5) |
Resistance |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+2) |
Inductance |
6mH/60mH/600mH/6H/60H/100H |
±(1.5%+5) |
Capacitance |
6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF |
±(2.5%+5) |
Frequency |
10Hz/100Hz/1kHz/10kHz/50kHz |
±(1.0%+3) |
Insulation |
500MΩ、2000MΩ |
±(4.0%+2) |
Centigrade Temperature |
-40℃～1000℃ /-40℉～1832℉ |
±(1.0%+5) |
Special function |
VC4060B+ |
True RMS |
√ |
NCV |
√ |
Function Protect |
√ |
Diode test |
√ |
Continuity test |
Warning sound when less than 50Ω |
Duty cycle measuring |
√ |
Data hold |
√ |
Backlight display |
√ |
Max-Min |
MAX., MIN. value and difference value between MAX and MIN |
Auto power off |
Approx.15minutes |
Low battery indication |
Approx. less than 7.6V |
Input impendence |
10MΩ |
Sampling rate |
3times/s |
AC frequency response |
40Hz-2kHz |
Operation way |
Manual or auto range |
Max. display |
6000 |
LCD size |
65×40mm |
Power |
6x1.5V AA battery |
Power dissipation |
Quiescent current approx. 6mA |
General Info:
Color |
Orange holster and Grey device |
Weight |
480g (including battery) |
Meter size |
200mm×92mm×50mm |

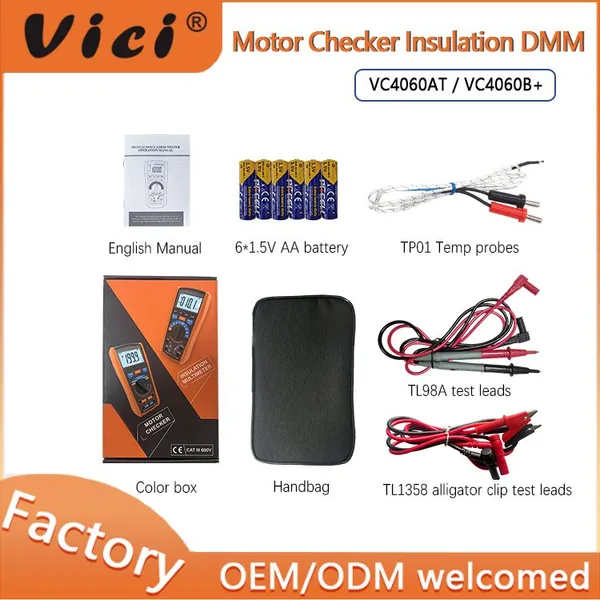

Standard accessory |
TL98 Test leads, TL1358 Alligator clip test leads, Battery, Manual, TP01 temperature probes, Handbag |
Packing |
Gift box |
Quantity per carton |
20pcs |
Carton size |
46.5*31.5*29.0cm |
GW per carton |
17kg |
