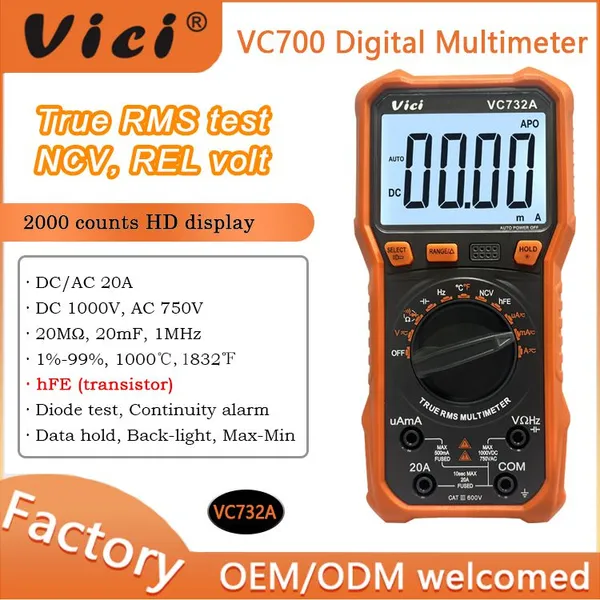

Vicimeter VC732A Auto Range 2000 Digits Multimeter
Features:
u New type holster, streamlined design, comfortable handle;
u Large LCD display makes reading clear;
u Strong antimagnetic and anti-interferential performance;
u Full function protection;
u Auto power off when there is no measurement in 15 minutes;
u Unit symbol display, easy to read; Lighting function, backlight display.
u True RMS, Non-contact voltage detect (NCV), relative value measurement, frequency/duty cycle and data hold function;
Technical Data
Basic function |
Range |
Basic Accuracy |
DCV |
200mV/ 2V/ 20V/ 200V/ 1000V |
± (0.5%+5) |
ACV |
2V/ 20V/ 200V/ 750V |
± (0.8%+10) |
DCA |
200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 20A |
± (1.0%+5) |
ACA |
200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 20A |
± (1.5%+10) |
Resistance |
200Ω/ 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ |
± (0.8%+2) |
Capacitance |
20nF/ 200nF/ 2uF/ 20uF/ 200uF/2000uF |
± (2.5%+5) |
Frequency |
10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz |
± (0.5%+4) |
Temperature |
-40℃～1000℃/-40℉～1832℉ |
± (1.0%+5) |
Special function |
VC732A |
|
Max. display |
1999 |
|
True RMS |
√ |
|
NCV |
√ |
|
Data hold |
√ |
|
Function protection |
√ |
|
Torch function |
√ |
|
Backlight display |
√ |
|
Duty cycle |
1%~99% |
|
Triode (hFE) test |
√ |
|
Diode test |
√ |
|
Continuity alarm |
Less than 50Ω, it displays “OL” if over 610Ω |
|
Low battery indicator |
Approx. less than 2.4 V |
|
Auto power off |
About 15 minutes |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz-1kHz |
|
Operation method |
Manual or Auto range |
|
LCD size |
65x43.5mm |
|
Battery |
3V (2*AAA battery) |
|
Power consumption |
Quiescent current about 2mA |
|
General Info:
Meter color |
Orange + Grey |
Meter weight |
306g (including battery) |
Meter size |
190×92×50mm |

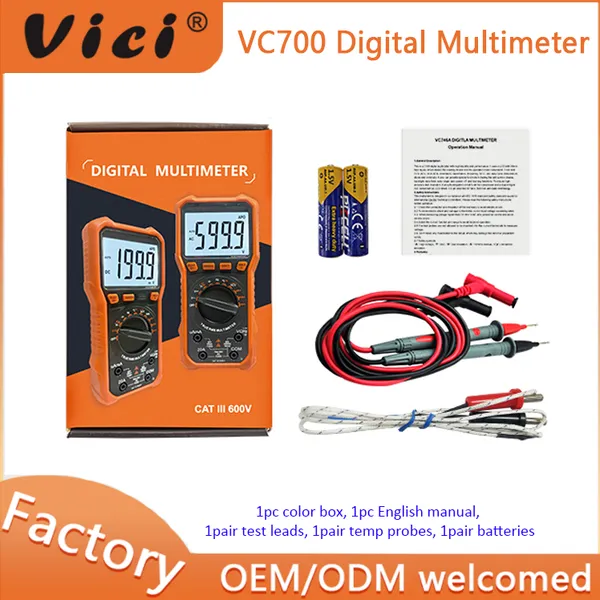

Standard accessory |
Test leads, battery, manual, TP01 temperature probe |
Standard packing |
30pcs |
G.W. per carton |
15kg |
Carton size |
43.5*29.5*42.5cm |
