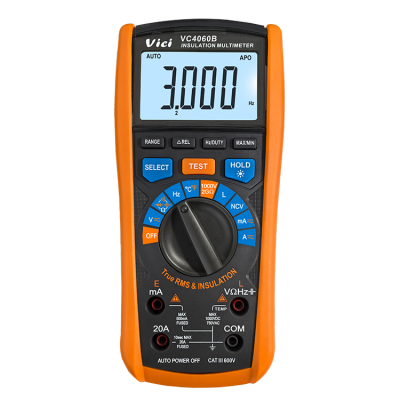

Vicimeter 2-IN-1 VC4060B Insulation Tester Multimeter
- Shenzhen
- T/T L/C PayPal Other
- 3 days
You May Like
-
Vicimeter VC732A Auto Range 2000 Digits Multimeter
-
Vicimeter VC835B Auto Range 2000 Digits Multimeter
-
Vicimeter CM-3002 Oversize Color LCD 800A AC DC Smart Auto Clamp Meter
-
Vicimeter CM-3000 Large Display Screen No Knob AC Clamp Meter
-
Vicimeter Househeld Magnetic Field Detect VC522 EMF Meter
-
Vicimeter 12V to 1000V Voltage Detector AC-3 Tester Pencil with LED Signal Display
Product Details
| Measuring Frequency Range : | max 10MHz | Insulation Resistance Range: | max 2000MΩ |
Product Description
VC4060B Inductance Insulation Multimeter
Features:
1. New type holster, streamlined design, comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance,full function protection;
4. Auto power off when there is no measurement in 15 minutes;
5. Unit symbol display, easy to read; backlight display;
6. Insulation Resistance Test, True RMS, non-contact voltage detection, inductance, frequency/duty cycle, and data hold function.
Basic function | Range | Accuracy |
DCV | 600mV/6V/60V/600V/1000V | ±(0.5%+5) |
ACV | 6V/60V/600V/750V | ±(0.8%+10) |
DCA | 6mA/60mA/600mA/6A/20A | ±(1.0%+5) |
ACA | 6mA/60mA/600mA/6A/20A | ±(1.5%+10) |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+2) |
Inductance | 6mH/60mH/600mH/6H/60H/100H | ±(1.5%+5) |
Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF/60mF | ±(2.5%+5) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) |
Insulation | 2000MΩ for 1000V | ±(4.0%+2) |
Temperature | -40℃～1000℃ /-40℉～1832℉ | ±(1.0%+5) |
Special function:
Max. display | 6000 |
Safety level | CAT. III 600V |
True RMS | √ |
NCV | √ |
Function Protect | √ |
Diode test | √ |
Continuity test | Warning sound when less than 50Ω |
Duty cycle measuring | √ |
Data hold | √ |
Backlight display | √ |
Max-Min | MAX., MIN. value and difference value between MAX and MIN |
Auto power off | Approx.15minutes |
Low battery indication | Approx. less than 7.6V |
Input impendence | 10MΩ |
Sampling rate | 3times/s |
AC frequency response | 40Hz-2kHz |
Operation way | Manual or auto range |
Max. display | 6000 |
LCD size | 65×40mm |
Power | 6x1.5V AA battery |
Power dissipation | Quiescent current approx. 6mA |
General Info:
Color | Orange holster and Grey device |
Weight | 480g (including battery) |
Meter size | 200mm×92mm×50mm |
Standard accessory | Test leads, crocodile clips, temperature probes, battery, manual, handbag |
Packing | Gift box |
Quantity per carton | 20pcs |
Carton size | 46.5*31.5*29.0cm |
GW per carton | 15kg |
