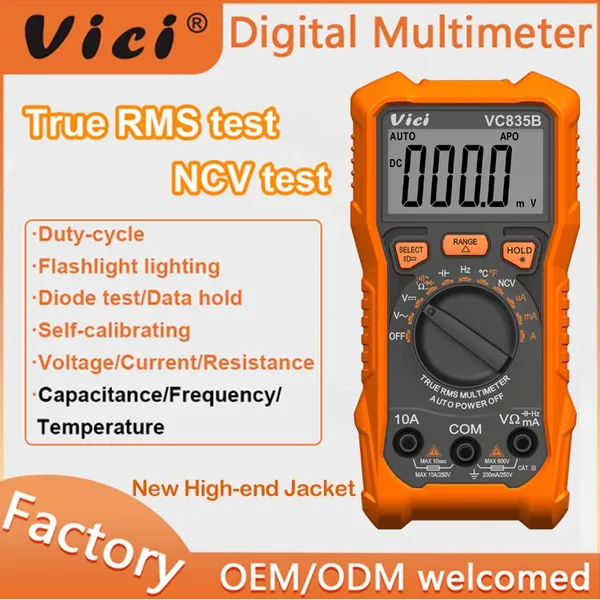

Vicimeter VC835B Auto Range 2000 Digits Multimeter

Vicimeter VC835B 3 1/2 Auto Range Digital Multimeter

Features:

 New type holster, streamlined design, comfortable handle;

 Large LCD display makes reading clear;

 Strong antimagnetic and anti-interferential performance;

 Full function protection;

 Auto power off when there is no measurement in 15 minutes;

 Unit symbol display, easy to read; Lighting function, backlight display.

 True RMS, Non-contact voltage detect (NCV), Rel, frequency/duty cycle and data hold function.

Technical Data:

DCV 200mV/ 2V/ 20V/200V/600V ± (0.5%+4)

ACV 200mV/2V/ 20V/ 200V/ 600V ± (0.8%+6)

DCA 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 10A ± (1.0%+5)

ACA 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 10A ± (1.5%+5)

Resistance 200Ω/ 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ ± (0.8%+1)

Capacitance 20nF/ 200nF/ 2uF/ 20uF/ 200uF/2000uF ± (2.5%+5)

Frequency 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz ± (0.5%+4)

Temperature -40℃～1000℃/-40℉～1832℉ ± (1.0%+5)

Special function:

True RMS √

NCV √

Data hold :√

Function protection: √

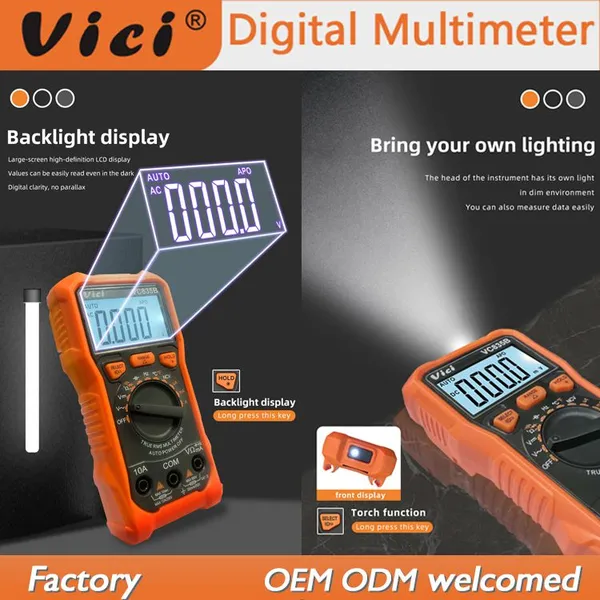

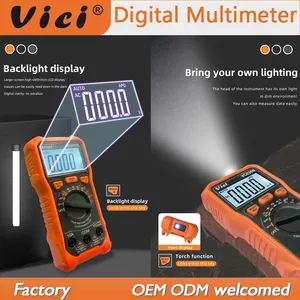

Torch function : √

Backlight display: √

Diode test: √

Duty cycle: 1%~99%

Continuity alarm : Less than 50Ω, it displays “OL” if over 610Ω

Low battery indicator : Approx. less than 2.4 V

Auto power off : About 15 minutes

Input impedance: 10MΩ

Sampling rate: 3 times/s

AC frequency response: 40Hz-2kHz

Operation method: Manual or Auto range

Max. display: 1999

LCD size: 61x28mm

Battery: 3V (2*AAA battery)

Power consumption: Quiescent current about 2mA

General characteristic

Meter color: Orange and Grey

Meter weight 195g（including battery）

Meter size: 140×72×37mm

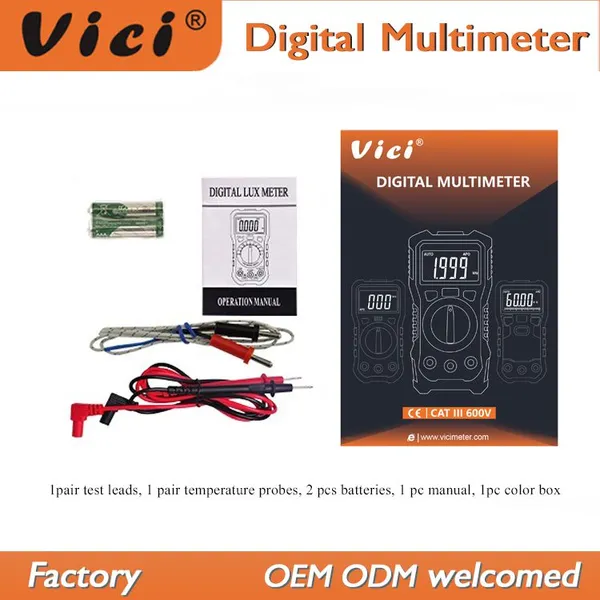

Standard accessory: Test leads, battery, manual, TP01 temperature probe

Standard packing: Gift box

Quantity per carton: 40PCS

GW per carton: 15KG

Carton size: 32.5×25×47.5CM
