Vicimeter 12V to 1000V Voltage Detector AC-3 Tester Pencil With LED Signal Display

Shenzhen VICIMETER Technology Co., Ltd

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Business Type:

Manufacturer

Year Established:

2006

Factory Size:

Below 1,000 square meters

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

3 days

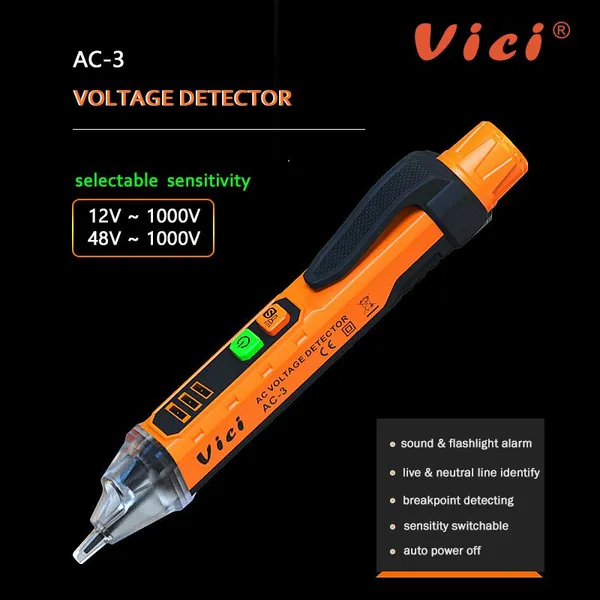

Vicimeter 12V to 1000V Voltage Detector AC-3 Tester Pencil with LED Signal Display

Feature:

1. Non-contact, much safer

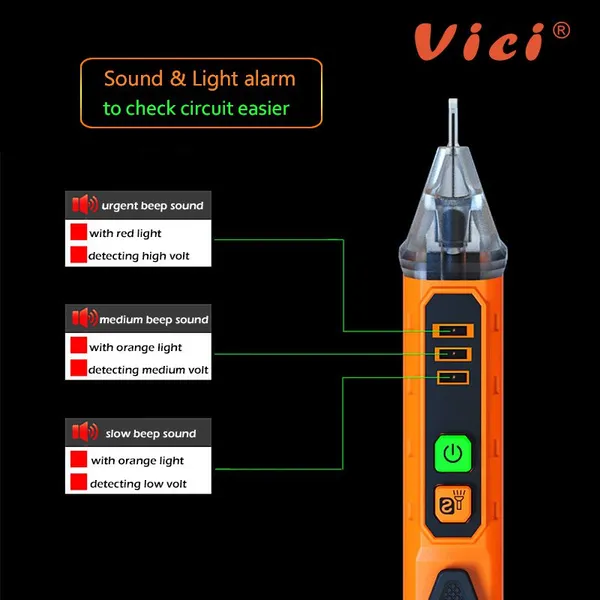

2. Sound & Light alarm

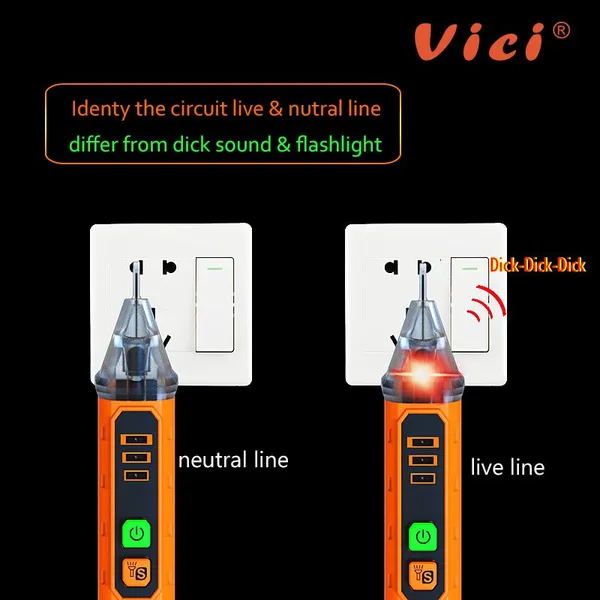

3. Live/Neutral wire identification

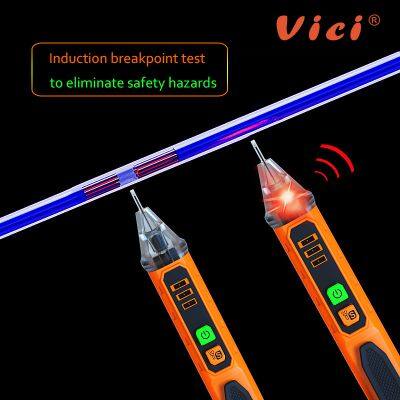

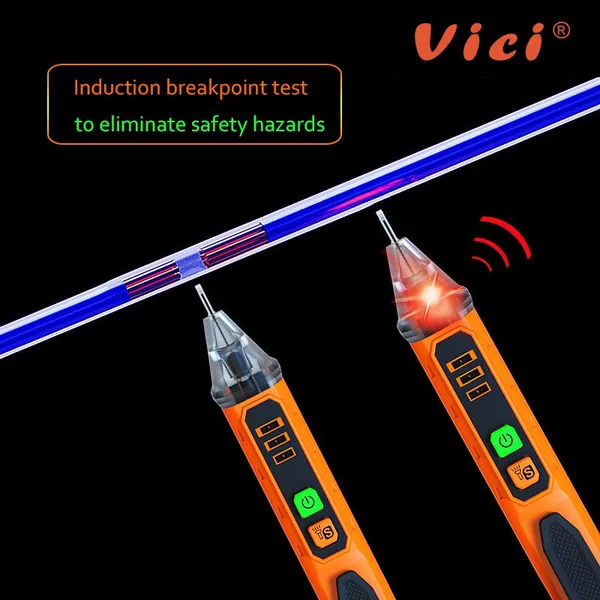

4. Inductive Break-point Testing

5. Switchable sensitivity 12V~1000V

6. With induced voltage signal indicator

Specification:

AC voltage range	The default range is 48~1000V; Press the “S” key to switch to 12~1000V
Frequency	50Hz/60Hz
Alarm type	Sound & Light alarm
Torch function	White LED torch light
Auto power off	Auto shut down when no operation for 5 minutes & no voltage signal is detected
Low battery indication	3-times light flashes and once beeps sound when the voltage is＜2.6V
Zero/Fire line recognition	According to the signal strength, the fire wire is with strongest signal
NCV sensitivity	3 sensitivity indicators
NCV sensitivity indication method	Sound & Light alarm function: with different decibel alarm sounds, red/orange LED light shows the strength of the signal
Working temperature	0 ~ 40℃
Storing temperature	-10~50℃
Safety level	CAT.III 1000V / CAT.IV 600V
Power supply	2* 1.5V AAA battery

General Info:

Tester color	Orange + Gray
Tester weight	58g
Tester size	165(L) x 40(W) x 20(D) mm
Standard packing including	AC-3 voltage tester, blister-card, battery
Individual packing style	Blister-card
Master packing	200pcs/carton
G.W. per carton	18kg
Carton size	65.5x29.0x45.5cm
