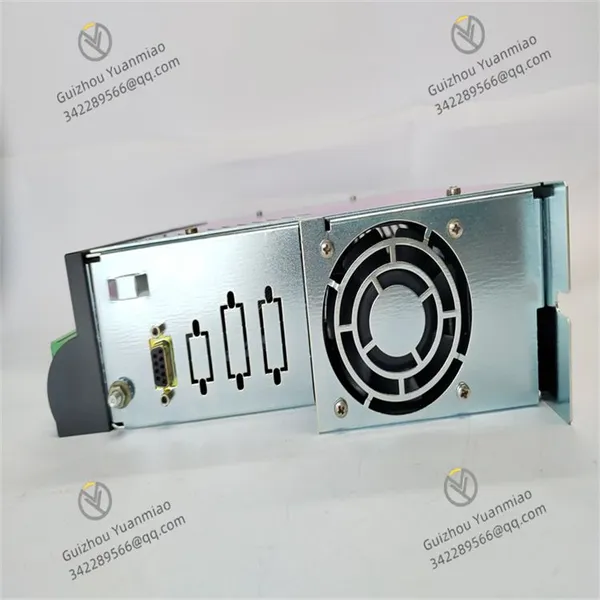

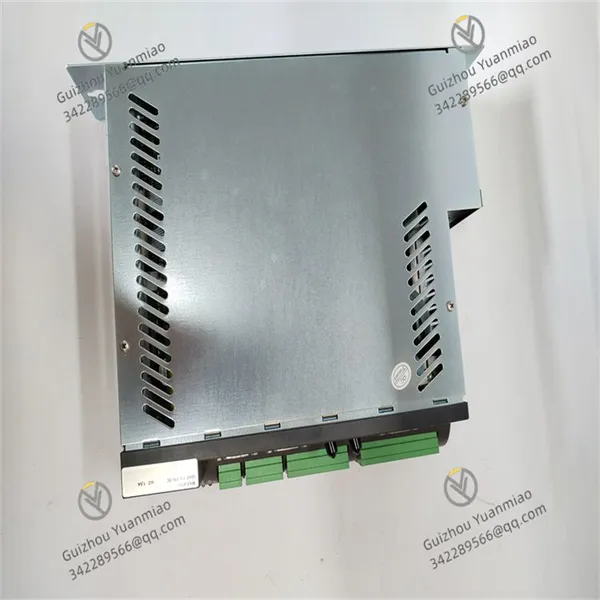

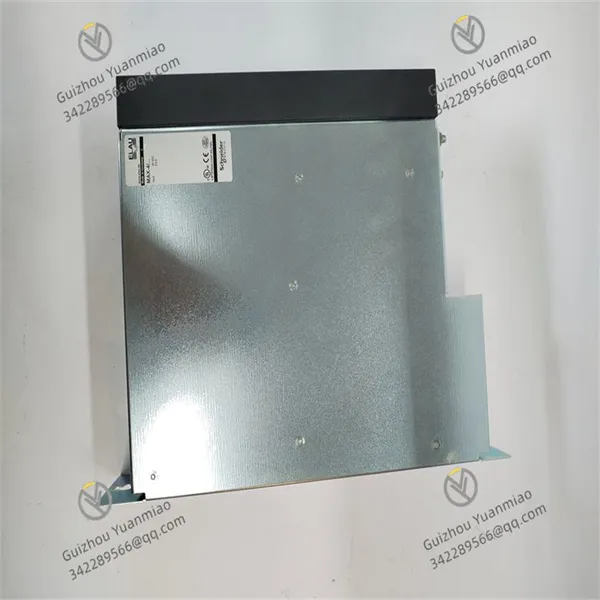

ELAU MAX-4 Controller

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Operating Temperature -10°C to +50°C

Input Voltage AC 200-240V

ELAU MAX-4

I. Overview

The ELAU MAX-4 is a high-performance motion controller or servo drive mainly applied in industrial automation fields such as packaging machinery, printing equipment, and electronic manufacturing equipment. Its design goal is to enhance equipment efficiency, precision, and flexibility through precise motion control and system integration capabilities.

II. Functional FeaturesMulti-Axis Motion Control Capability

Supports multi-axis synchronous control (e.g., 4 axes or more), enabling complex trajectory planning (such as linear and circular interpolation) to meet high-speed and high-precision motion requirements (e.g., robot grabbing, precision machining).
Equipped with Electronic Cam and Electronic Gearing functions to replace traditional mechanical cam structures, flexibly adapting to different process rhythms.

High-Performance Drive and Algorithms

Adopts advanced servo control algorithms (such as vector control and direct torque control) to optimize dynamic response and stability, reducing vibration and errors.
Supports real-time parameter adjustment, automatically optimizing control parameters according to load changes to adapt to different working conditions.

Powerful System Integration and Communication

Compatible with multiple industrial communication protocols such as EtherCAT, Modbus, CANopen, and EtherNet/IP, facilitating networking with PLCs, host computers, or other devices.
Supports API interfaces and programming development, allowing program writing and system configuration through dedicated software (such as Elau PowerSuite).

Modular Design and Expandability

The hardware features a modular design, supporting functional expansion (such as I/O modules and communication modules) to adapt to customized needs of different devices.
Supports multi-task processing, enabling simultaneous operation of multiple control programs to enhance system efficiency.

Safety and Diagnostic Functions

Built-in safety protection mechanisms (such as overload, overvoltage, and overheat protection) to prevent equipment damage.
Real-time fault diagnosis and alarm functions, feedbacking abnormal information through interfaces or communication ports for quick maintenance.

III. Technical Parameters

Parameter Type	Specific Indicators
Input Voltage	Typically supports AC 200-240V (single-phase or three-phase), with some models supporting DC 24V input.
Output Power Range	Single-axis drive power typically ranges from 0.1-5kW, subject to the model (e.g., MAX-4/0.75 indicates a 0.75kW model).
Number of Control Axes	Standard models support 1-4 axes, while some high-end models can be expanded to more axes.
Communication Interfaces	Standard with EtherCAT and CANopen, optional with EtherNet/IP, Modbus RTU, etc.
Sampling Frequency	Servo control sampling frequency can reach 1-10kHz to ensure high-speed response.
Operating Temperature	-10°C to +50°C (without cooling fans), with extended models supporting a wider temperature range.
Protection Level	Typically IP20 (panel-mounted), with some modules supporting IP65 protection (requires a housing).

IV. Working PrincipleSignal Input and Command Processing

Command Reception: Receives motion commands (such as position, speed, and torque target values) from PLCs or host computers via communication interfaces (e.g., EtherCAT), or presets process paths through local programming.
Sensor Feedback: Collects encoder signals from servo motors (such as incremental or absolute encoders) to obtain real-time motor position and speed information, forming closed-loop control.

Execution of Motion Control Algorithms

Trajectory Planning: Generates smooth motion trajectories (such as S-curve acceleration/deceleration) based on input commands to avoid start/stop shocks and improve motion precision.
Servo Control: Calculates control quantities through PID algorithms or advanced control algorithms (such as feedforward control and disturbance observers), compares deviations between target and feedback values, and generates PWM signals or current commands.

Power Drive and Execution

Drive Amplification: Amplifies control signals through power devices (such as IGBTs) to drive servo motors, adjusting motor voltage, current, and frequency to achieve speed and position control.
Multi-Axis Collaboration: For multi-axis motion, synchronizes control signals of each axis through internal buses (such as SPI) to achieve interpolated motion (e.g., X-Y axis linkage to draw curves).

Feedback and Closed-Loop Control

Real-Time Feedback: The encoder feeds back the actual motion status of the motor to the controller, which adjusts the control output after comparing it with the target value to ensure motion precision (errors are typically controlled within the micrometer range).
Fault Monitoring: Real-time monitoring of parameters such as current, voltage, and temperature. If thresholds are exceeded, protection mechanisms (such as emergency stop) are triggered, and alarm signals are output.

Communication and System Integration

Interacts data with other devices through industrial communication protocols, such as uploading operating status to the host computer, receiving new process parameters, and linking with sensors or actuators (e.g., photoelectric switches triggering axis start/stop).

V. Common Faults and Solutions

Fault Type	Possible Causes	Solutions
Servo Motor Not Running	1. Power not connected or voltage abnormal. 2. Communication interruption or command errors. 3. Motor or encoder failure.	1. Check power connection and voltage, replace damaged power modules. 2. Troubleshoot communication cables, interfaces, and parameter settings. 3. Replace the motor or encoder, check for loose wiring.
Excessive Position Deviation	1. Encoder signal interference or poor wiring. 2. Improper servo parameter (such as gain) settings. 3. Abnormal load or mechanical jamming.	1. Shield encoder cables, check wiring terminals. 2. Readjust PID gain parameters to optimize dynamic response. 3. Inspect the mechanical structure to eliminate jamming or overload issues.
Overcurrent/Overload Alarm	1. Excessive motor load (such as abnormal mechanical resistance). 2. Drive module failure or poor heat dissipation. 3. Unreasonable parameter settings (such as current limit).	1. Check if the load is normal, clear mechanical obstacles. 2. Inspect cooling fans, clean dust, replace damaged drive modules. 3. Reset current limit parameters to ensure they match motor specifications.
Communication Failure	1. Mismatched communication protocol or parameter errors. 2. Damaged communication cables or poor interface contact. 3. Out-of-sync clock between master and slave devices.	1. Verify the communication protocol (such as baud rate, data bits) to ensure consistency with the master device. 2. Replace cables, clean interface pins. 3. Synchronize communication clocks via software or restart the device to reset the communication module.
System Overheating	1. Excessively high ambient temperature or insufficient heat dissipation. 2. Fan failure or blocked cooling holes.	1. Ensure the device is installed in a well-ventilated location, add cooling devices. 2. Replace the fan, clean dust from cooling holes, and maintain air circulation.
