SANYO DENKI P30B04010PCKST Servo Motors

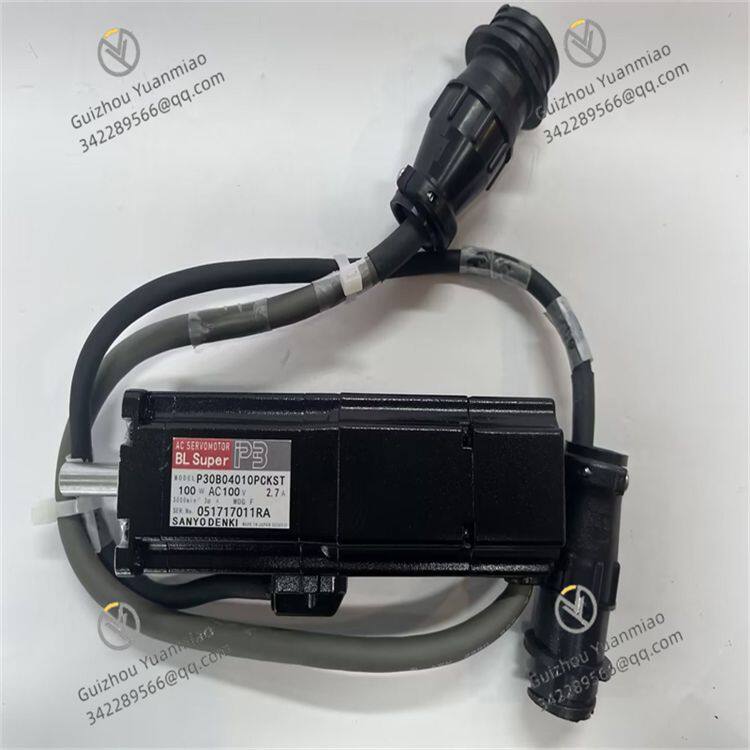

SANYO DENKI P30B04010PCKST Servo Motors photo-1

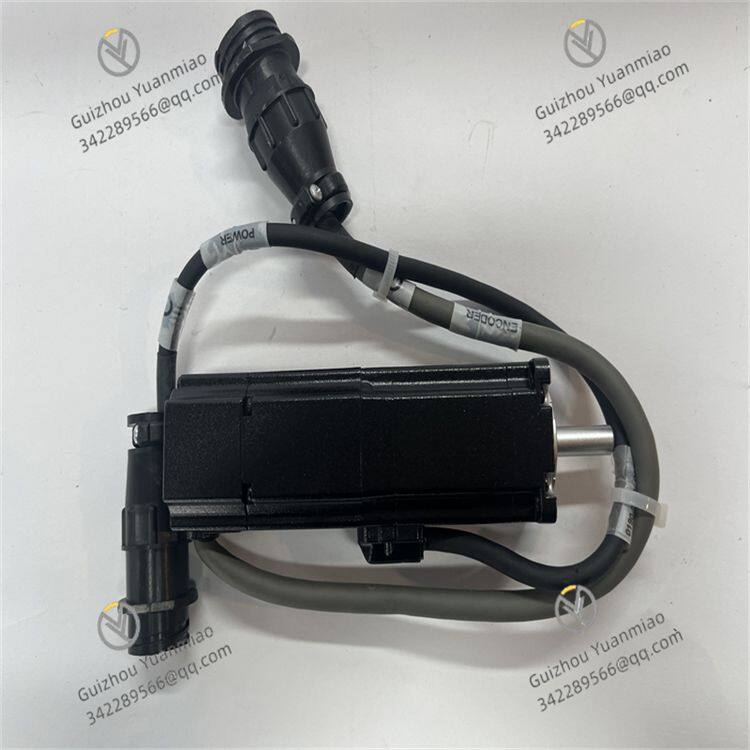

SANYO DENKI P30B04010PCKST Servo Motors photo-2

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Material:

Other, Global universal model

Condition:

Other, Global universal model

Task:

Other, Global universal model

Contact Supplier Request Quote Chat Now

Guizhou Yuanmiao Automation Equipment Co., Ltd.

1Yr

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Material Other, Global universal model

Condition Other, Global universal model

Task Other, Global universal model

Mathematical Model Other, Global universal model

Signal Other, Global universal model

Customized Non-Customized

Structure Other, Global universal model

Rated output 100W

Brake type 24V DC brake

SANYO DENKI P30B04010PCKST

Overview

Belonging to the P3 series, it adopts a high-performance servo control system and high-quality electronic components. With features such as high-precision control, high performance, and reliability, it is widely used in industrial automation, robotics, semiconductor equipment, and other fields. It can be applied to scenarios such as automated production lines, robot joint drives, wafer transportation in semiconductor equipment, and precise positioning.

Functional Features

Enables fine adjustment of motor position, speed, and acceleration with high-precision control capabilities.
Offers multiple control modes and functional options, ensuring good versatility and compatibility to work with various types of servo motors and controllers.
Features an effective heat dissipation design, maintaining stable temperature during long-term high-load operation for excellent thermal management.
Provides a user-friendly interface with simple installation steps, making it easy to use.

Technical Parameters

Rated output: 100W.
Maximum speed: 4500 rpm under 100V AC voltage.
Brake type: 24V DC brake.
Sensor type: K-type.

Working Principle

A servo motor typically consists of a stator and a rotor. When alternating current is applied to the stator windings, a rotating magnetic field is generated. The rotating magnetic field interacts with the permanent magnets or windings in the rotor to produce electromagnetic force, driving the rotor to rotate. By controlling the magnitude, frequency, and phase of the input current, the motor's speed, position, and torque can be precisely adjusted to meet the requirements of different application scenarios. Meanwhile, the built-in sensors (such as K-type sensors) in the motor provide real-time feedback on the motor's operating status, allowing the controller to perform precise control based on the feedback information.

Common Faults and SolutionsMotor Fails to Start

First, check if the power supply and motor wiring are in good contact.
Then, verify whether the motor is in the normal position of the transmission device. If not, adjust the motor position.
If the motor is continuously powered but does not start, it may indicate an internal fault, requiring the replacement of the servo motor.

Motor Stuttering or Unstable Speed

Usually caused by incorrect setting of motor parameters.
Try resetting the parameters. Increase the speed one by one while keeping the motor load unchanged until the normal operating requirement is met.

Excessive Motor Noise

May be due to damage to the internal gears of the motor, leading to poor gear meshing.
In this case, replace the gears and perform calibration and upgrading.

Drive Alarm

Sanyo servo drives may trigger alarms such as overcurrent (AL21 RL21), overload (AL41 RL41), and overheat (AL51 RL51).

For overcurrent: Check if the connection between the U, V, W phases of the drive and the motor is short-circuited or grounded.
For overload: Investigate potential issues with the control board or power module, as well as encoder circuit failures, by checking relevant components one by one.
For overheat: Examine the drive's heat dissipation condition and internal circuit for faults.

Practical Application CasesAutomated Production Lines

In 3C product automated production lines, this motor can drive conveyor belts to precisely control their operating speed, ensuring smooth and accurate product transmission between processes.
It can also be used for assembly robotic arms, enabling them to precisely grasp and place components, improving assembly accuracy and production efficiency.

Robot Joint Drive

In collaborative robots, the P30B04010PCKST serves as a joint drive motor. For example, in some lightweight collaborative robots, it accurately controls the rotation angle and speed of joints, allowing the robot to flexibly perform various complex actions. In electronic component sorting operations, the robot can quickly and accurately sort different specifications of electronic components with the precise control of this motor.

Wafer Transportation in Semiconductor Equipment

During semiconductor manufacturing, wafer transportation requires extremely high precision. This motor drives the wafer transportation device, accurately controlling the position and movement speed of wafers to ensure they are not damaged during transportation, meeting the high-precision requirements of semiconductor manufacturing.

CNC Machine Tools

In small CNC machine tools, the P30B04010PCKST precisely controls the position and speed of cutting tools. By receiving instructions from the controller, the motor quickly and accurately adjusts the tool's movement trajectory, ensuring machining precision and quality for high-precision part processing.

Automatic Packaging Machines

In automatic packaging machines for food, pharmaceuticals, and other industries, this motor controls the conveying of packaging materials and the execution of packaging actions. For example, it precisely controls the feeding length of packaging films to ensure accurate packaging sizes, or drives sealing devices to achieve precise sealing operations, improving packaging efficiency and quality.

Product Tags: P30B04010PCKST , SANYO DENKI , 900-7002-99
