Pioneer Magnetics PM3398B-6P-1-3P-E Power Supply Module

Pioneer Magnetics PM3398B-6P-1-3P-E Power Supply Module photo-1
Pioneer Magnetics PM3398B-6P-1-3P-E Power Supply Module photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Material:
Other, Global universal model
Condition:
Other, Global universal model
Task:
Other, Global universal model
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Material Other, Global universal model
Condition Other, Global universal model
Task Other, Global universal model
Mathematical Model Other, Global universal model
Signal Other, Global universal model
Customized Non-Customized
Structure Other, Global universal model
Output Voltage 56VDC
Operating Temperature -40°C to +85°C
Dimensions 110mm x 60mm x 30mm
Pioneer Magnetics PM3398B-6P-1-3P-E
Overview
The PM3398B-6P-1-3P-E converts three-phase AC input into stable and reliable DC output, providing the required power support for various electronic devices. Its compact design and excellent performance make it stand out in scenarios with limited space and high-efficiency power solutions, suitable for industrial automation, communications, medical care, and other application fields with extremely high requirements for power stability.
Functional Features
  • High Efficiency: Adopts advanced power conversion technology with a conversion efficiency of up to 90%, reducing energy consumption and heat dissipation.

  • High Reliability: Uses high-quality components, complies with international standards such as UL, CSA, and EN, and has obtained CE certification, ensuring stable operation in various harsh industrial environments.

  • Wide Input Voltage Range: Supports an input voltage range of 100-240VAC, adapting to power grid standards and voltage fluctuations in different regions.

  • Multiple Protection Functions: Equipped with overvoltage protection, overcurrent protection, short-circuit protection, and over-temperature protection to effectively protect the power module itself and connected load devices.

  • Modular Design: Facilitates installation and maintenance, as well as integration with other systems.

  • Noise Suppression: Effectively reduces electromagnetic interference, suitable for noise-sensitive environments.

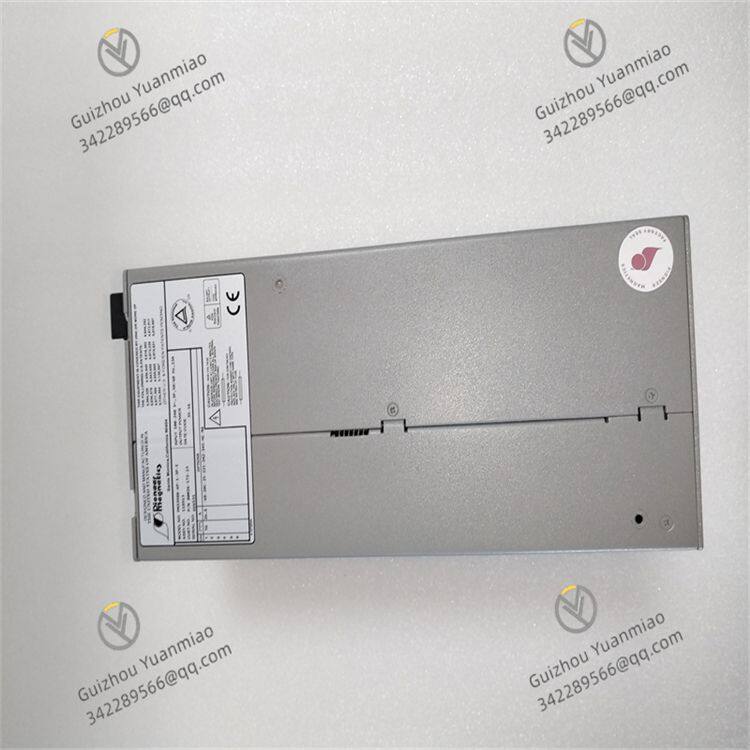

PM3398B-6P-1-3P-E

Technical Parameters
  • Input Voltage: 100-240VAC, 50/60Hz.

  • Output Voltage: 56VDC.

  • Output Current: 26.8A.

  • Output Power: 1500W.

  • Efficiency: Up to 90%.

  • Operating Temperature Range: -40°C to +85°C.

  • Storage Temperature Range: -55°C to +125°C.

  • Protection Level: IP67, with good dustproof and waterproof performance.

  • Connector Type: M12 connector.

  • Communication Interface: Supports RS485 communication.

  • Dimensions: 110mm x 60mm x 30mm.

  • Weight: 3.8kg.

Working Principle1. Input Power Processing Stage
  • AC Input Adaptation: Receives a wide range of 90-264VAC alternating current, and suppresses high-frequency interference in the power grid through a filter circuit (such as an EMI filter) to ensure pure input power.

  • Rectification and Preliminary Filtering: Converts alternating current into pulsating direct current using a bridge rectifier, and then performs preliminary filtering through electrolytic capacitors to smooth the voltage waveform.

2. Power Conversion and Magnetic Energy Regulation
  • High-Frequency Switching Conversion: Drives power switching tubes (such as MOSFET or IGBT) through a PWM (Pulse Width Modulation) controller to convert direct current into high-frequency pulse signals (usually with a frequency of tens to hundreds of kHz).

  • Energy Transfer of Magnetic Components: High-frequency pulse signals undergo energy transfer and voltage transformation through transformers or inductor components (core magnetic components) inside the module. Take the transformer as an example:

    • The primary coil receives high-frequency pulses, generating an alternating magnetic field in the iron core;

    • The secondary coil outputs the target voltage (such as the rated DC voltage in technical parameters) through electromagnetic induction, achieving electrical isolation between input and output (isolation voltage is usually 2kVrms and above).

  • Magnetic Flux Stability Control: Real-time monitoring of output voltage/current through a feedback circuit, adjusting the duty cycle of the PWM signal to control the magnetic flux change of the magnetic components, ensuring stable output voltage (such as ripple and noise <50mVp-p).

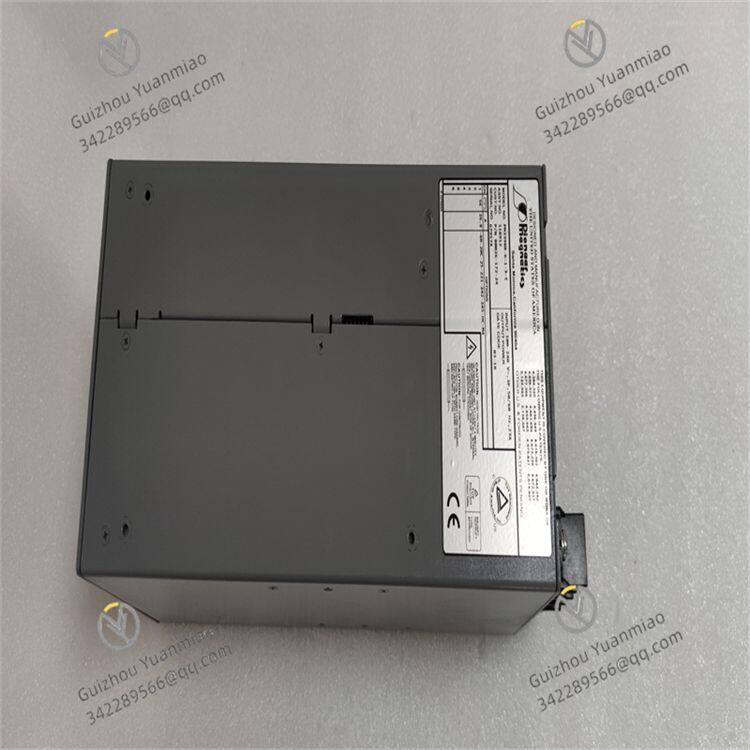

PM3398B-6-1-3-E

3. Output Voltage Stabilization and Protection Mechanisms
  • Secondary Filtering and Voltage Stabilization: The pulse direct current output from the secondary side is further smoothed by a Schottky diode rectification and an LC filter circuit (inductor + capacitor) to form a stable DC voltage (such as 56VDC).

  • Closed-Loop Feedback Control: The sampling resistor at the output end feeds back the voltage/current signal to the control chip, which adjusts the PWM signal after comparing it with the reference voltage to achieve dynamic voltage stabilization (efficiency can reach 90%).

  • Implementation of Protection Functions:

    • Overvoltage Protection (OVP): When the output voltage exceeds the threshold, the control circuit cuts off the drive signal of the switching tube to prevent load damage;

    • Short-Circuit Protection (SCP): When an output short circuit is detected, the power output is immediately turned off to avoid component overheating;

    • Overcurrent/Overload Protection (OCP/OLP): Monitors the load current through a current detection resistor and triggers protection when it exceeds the rated value (such as 17.9A).

4. Heat Dissipation and Environmental Adaptation Design
  • Thermal Management Logic: The module adopts a natural convection cooling method, derives the heat of internal components (such as power tubes and transformers) through a metal shell and heat sink. When the temperature exceeds the set threshold (such as the 70°C operating upper limit), if heat dissipation is not timely, over-temperature protection (OTP) may be triggered.

  • Environmental Compatibility Design: Through moisture-proof and seismic materials (such as potting adhesive for fixing components) and wide-temperature design (-20~70°C operating temperature), it ensures the stability of magnetic components and circuits in harsh environments.
