Scientific Grade Stereo-fluorescence Microscope MZX81

Stereo fluorescence microscope  MZX81 is consist of Olympus SZX7 stereo microscope and epi fluorescent attachment, the epi fluorescent attachment is equipped with high bright LED light source. On the basis of  Olympus SZX7 stereo microscope excellent optical performance and high brightness fluorescent illumination, the MZX81 microscope provides a superior fluorescent observation performance. The microscope can offer blue and green filter groups in one unit, and support high quality GFP requirement.  It's excellent for GFP,  nematode,drosophila,zebrafish and embryo fluorescence research. And widely used in biomedicine, in-vivo research, criminal investigation,mineral research ,etc.

Compatible with main of world famous microscopes:

Superior to meet their optical path offering high quality imaging.

Providing varies of excitation wavelength for users’choice.

Long lifetime LED light source, energy saving and environment friendly.

Dual optical path of fluorescence, dual exciting intensity for bright lighting.

Machine response in nanosecond, high effiencey, easy to use.

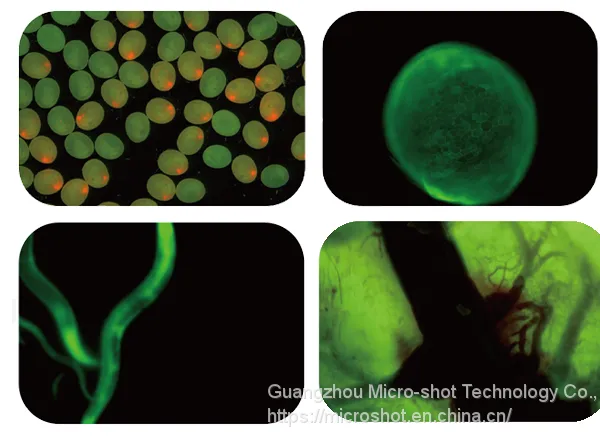

Applications:

Modern oganism such as Zebrafish, C.elagans, Rat, Drosophila, etc.

Zebfrafish eggs, silkworm eggs and larva eggs

Rat brain thrombus & Tissue sections of rat

Transgenic breeding

Chick CAM (Chick Ambryonal Membrane)

Paper document identification

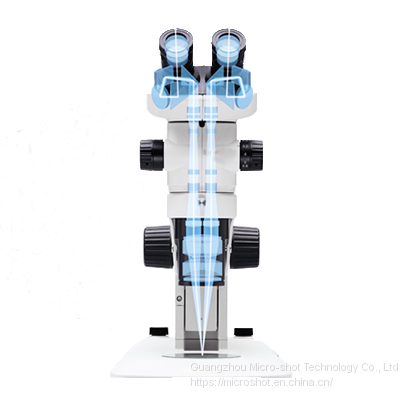

Galileo optical system and coaxial illumination:

Adopt Galileo optical system and lead-free optics providing clear, accurate specimen observation without strain.

Reflected fluorescence unit with coaxial illumination allows clear,bright observation even with weakly emitting specimen.

Zoom radio 7:1 and magnification range 8X-56X, working distance is 90mm.

Observation head:

Light path 2 selections: 100% for eyepiece, 100% for photographing

Lead-free 5°-45°title angle trinocular head

Wide field eyepiece 10X/FN22

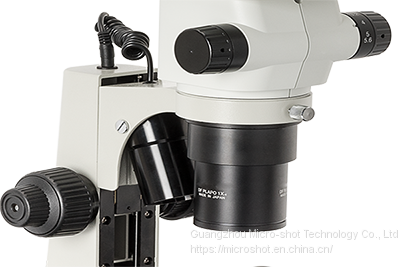

Fluorescence illuminating of LED light:

Modular designed fluorescence attachment eliminates extra lamp house and power supply, easy to use and maintain.

Cold LED lighting greatly reduces the damage of heat conduction to living specimens.

Excitation wavelength 380nm-420nm, 460nm-490nm,510nm-550nm, 540nm-580nm are optional.

High clarity objective:

Infinity plan achromat objective 1X, N.A 0.1, working distance 90mm, field of view 27.5-3.9mm

Optional objective: 2X, working distance 33.5mm,field of view 13.8-1.9mm

SPECIFICATION:
