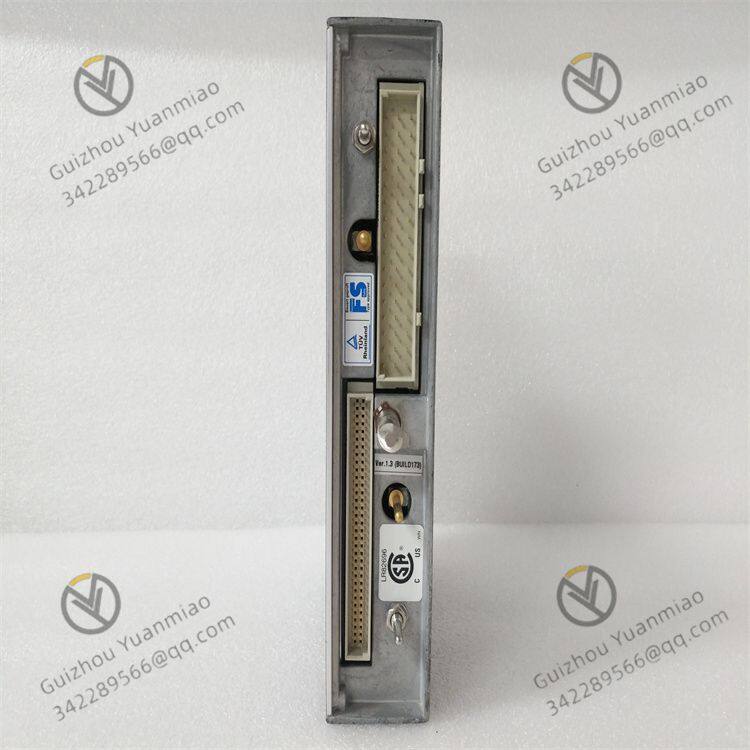

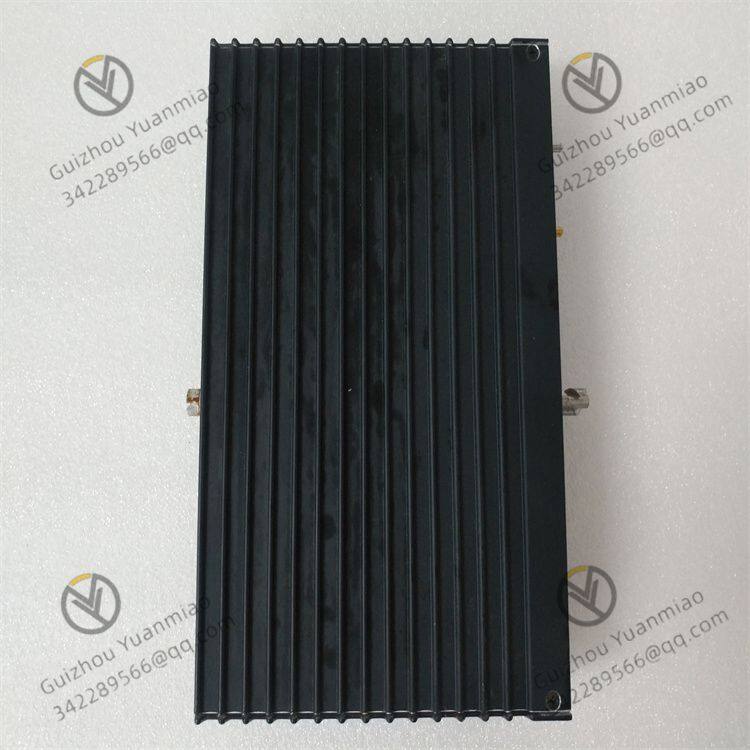

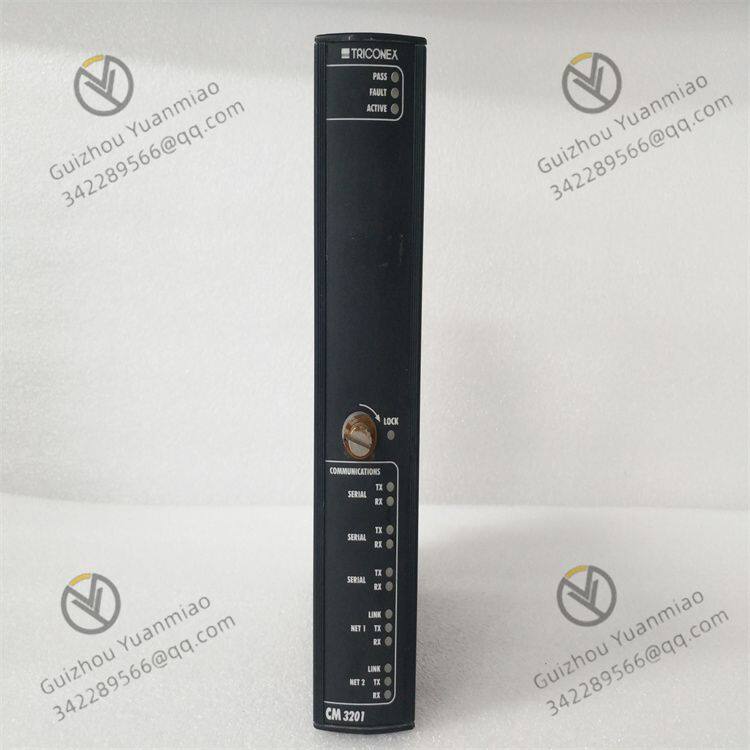

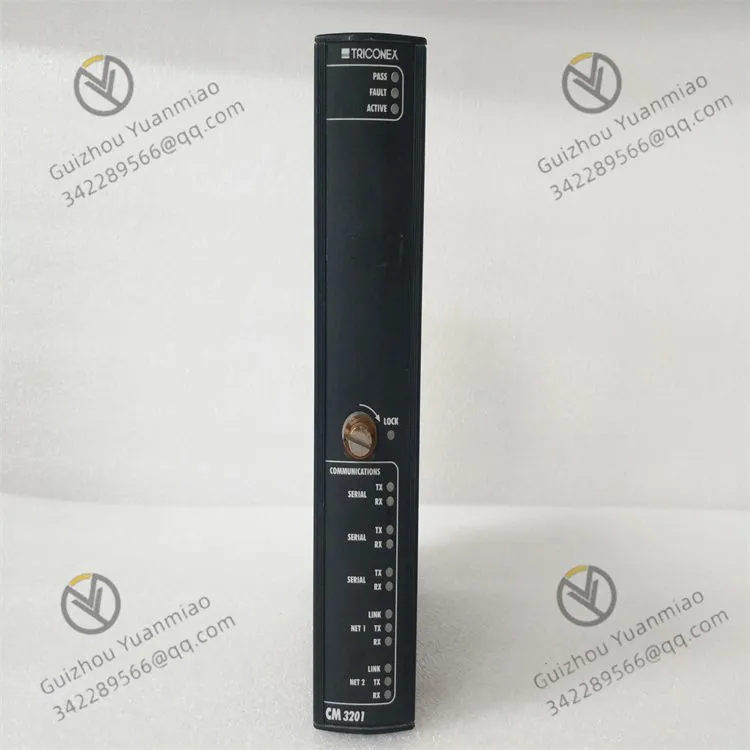

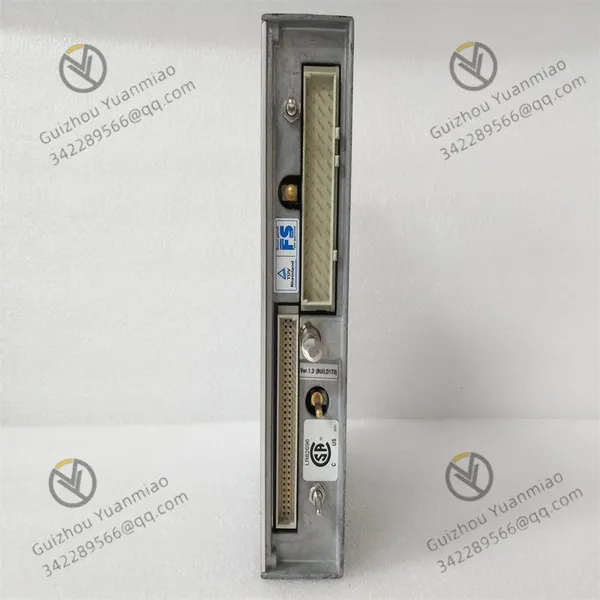

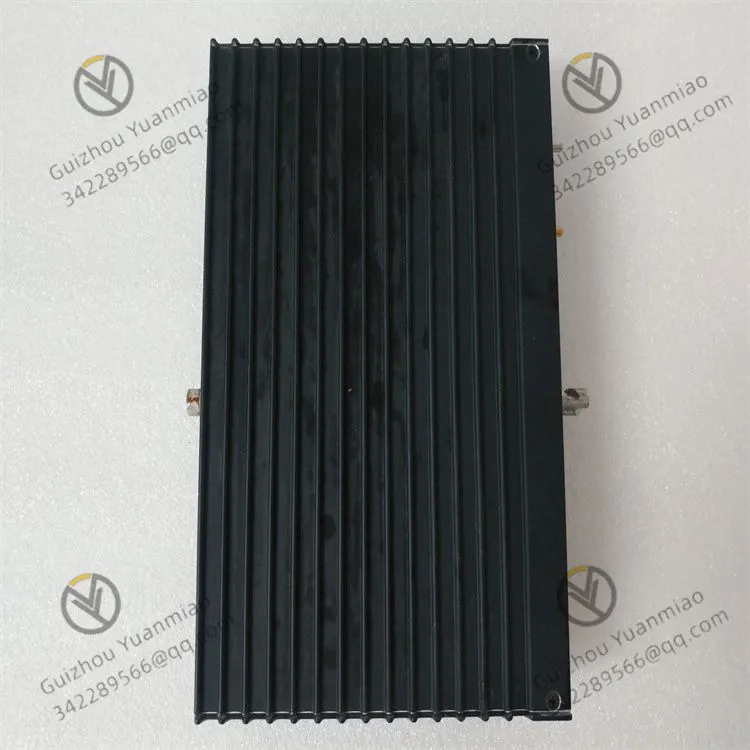

Triconex 3201 Digital Input Module

Basic parameters

Number of channels: Usually, 16 digital input channels are provided, which can simultaneously monitor multiple switch signals.

Input type: Supports dry contact, wet contact or TTL level signals, suitable for different types of sensors and switchgear.

Voltage range: Compatible with 24VDC or 120/230VAC (depending on the model), the wide voltage design enhances adaptability.

Isolation feature: Electrical isolation between channels to prevent signal interference and enhance noise resistance.

Response time: The typical response time is ≤10ms, meeting the monitoring requirements of high-speed state changes.

Diagnostic function: Supports channel-level fault detection (such as short circuit and open circuit), and feeds back the status through LED indicator lights or system communication.

Core characteristics

Triple redundancy architecture

Adopting Triconex's signature Triple Module Redundancy (TMR) technology, each input signal is independently processed by three channels, and data reliability is ensured through a 200.3 (three choose two) voting mechanism.

Even if a single channel fails, the system can still operate normally and give an alarm, avoiding single-point failure.

High-reliability design

Operating temperature range: -40°C to + 75°C, suitable for extreme industrial environments.

It is resistant to vibration (5g, 20-2000Hz) and shock (50g, 11ms), and complies with industrial standards.

The mean Time between failures (MTBF) is greater than 100,000 hours, meeting the requirements of continuous operation.

Security certification

It complies with IEC 61508 SIL3, ISA 84.00.01, ATEX/IECEx explosion-proof certification and is suitable for safety instrumental-system (SIS).

Support the Fail-Safe mode to ensure that the system enters a safe state in case of anomalies.

Application scenarios

Petrochemical industry: Monitor safety-critical signals such as emergency stop buttons, valve position feedback, and level switches.

In the power industry: In the control of generator sets, signals such as the status of circuit breakers and the output of protective relays are collected.

Metallurgy and mining: Used for safety interlocking of furnaces and condition monitoring of material conveying systems.

Rail transit: Scenarios with high reliability requirements such as train door status detection and track signal monitoring.

Configuration and Integration

Software Tools: Configure channel parameters (such as filtering time and logical threshold) through TriStation 1131 or Tricon Configuration Tools.

Communication interface: Supports protocols such as Modbus, Profibus, Ethernet/IP, etc., and can be seamlessly integrated with PLC, DCS or SCADA systems.

Redundant configuration: It can be combined with other Triconex modules (such as 3009 processor, 3604 output module) to form a complete redundant system.

Physical specification

Dimensions: Approximately 114mm×89mm×25mm (height × width × depth), compact design saves cabinet space.

Installation method: Standard DIN rail installation, supports hot plugging (power off operation required).

Power consumption: Typical value <5W, low-power design reduces heat dissipation requirements.

Fault diagnosis and maintenance

LED indication: Each channel is equipped with status indicator lights to visually display the signal status and fault information.

System log: Records detailed fault history and event timestamps for easy traceability and analysis.

Online replacement: Supports module replacement while powered on (safety regulations must be followed) to reduce downtime.

Summary

The Triconex 3201 module, with its triple redundancy architecture, high reliability and safety certification, has become an ideal choice for digital input monitoring in critical industrial control systems. Through the collaborative design of hardware and software, it ensures that it can still provide accurate and stable signal acquisition capabilities in extreme environments, meeting the strict requirements of safety instrument systems.
