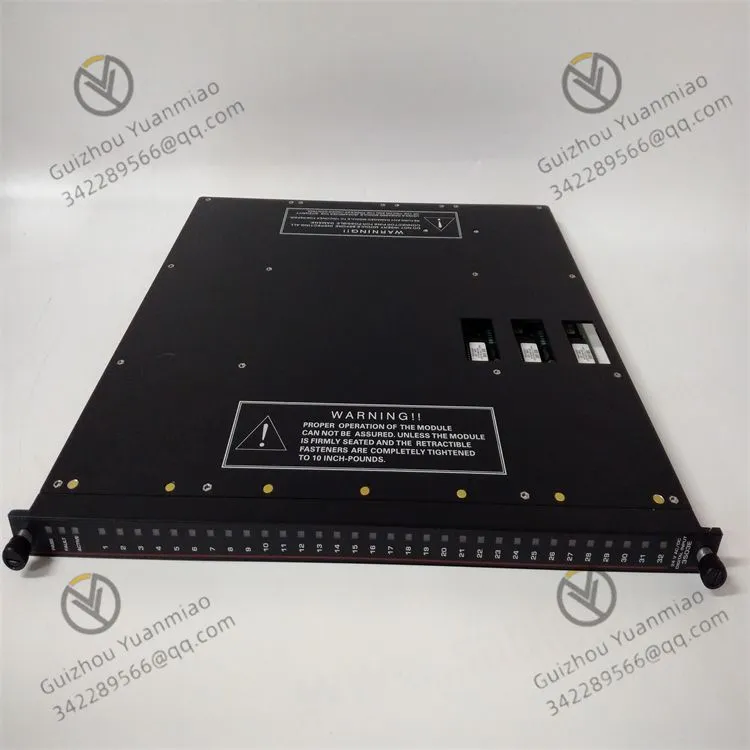

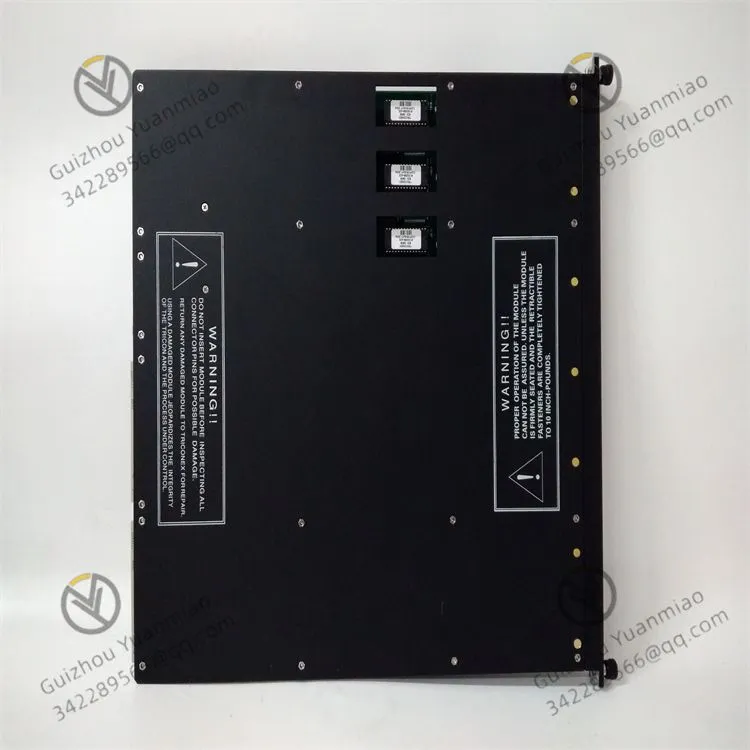

TRICONEX 3503E high-performance analog input module
Functional features:
High-precision analog signal acquisition: It can accurately collect various types of analog signals, such as 4-20mA current signals, 0-10V voltage signals, etc., providing accurate process variable data for control systems. It can be widely applied in monitoring and control scenarios of parameters such as temperature, pressure, and flow.
Three-mode Redundancy (TMR) design: By adopting a three-mode redundancy architecture, three independent circuit channels are integrated into a single module to perform parallel processing and voting on input signals. This design can effectively enhance the reliability and fault tolerance of the module. Even if one of the channels fails, the module can still operate normally, output the correct signal, and reduce the risk of system downtime caused by module failure. It is suitable for industries with extremely high safety requirements such as petrochemicals and natural gas.
Self-diagnosis function for faults: It has a powerful self-diagnosis capability and can monitor the working status of the module itself in real time, including power faults, channel faults, communication faults, etc. Once a fault is detected, an alarm signal will be sent out promptly, facilitating maintenance personnel to quickly locate and eliminate the fault and reducing system maintenance costs.
Technical parameters:
Number of input channels: It usually has multiple input channels and can simultaneously collect multiple analog signals. The specific number of channels varies depending on the model and configuration. Common ones include 8 channels or 16 channels, etc.
Accuracy: The accuracy is relatively high, generally reaching ±0.1% FS (full scale) or higher, which can meet the measurement accuracy requirements of most industrial process controls.
Sampling rate: It features a relatively fast sampling rate, enabling signal sampling of multiple channels within a short period of time. It can promptly reflect changes in process variables and ensure the rapid response of the control system.
Application scenarios:
Petrochemical industry: It is used for monitoring and controlling parameters such as temperature, pressure and liquid level of equipment like oil refining units and chemical reactors to ensure the safe and stable operation of the production process.
In the natural gas industry, in natural gas processing plants, gas transmission pipelines and other places, the flow rate, pressure, composition and other aspects of natural gas can be precisely measured and controlled to achieve efficient transportation and processing.
Power industry: Applicable to thermal power plants, substations and other places, it monitors parameters such as temperature, voltage and current of generators, as well as controls water level and steam pressure of boilers, ensuring the reliability and stability of power production.
