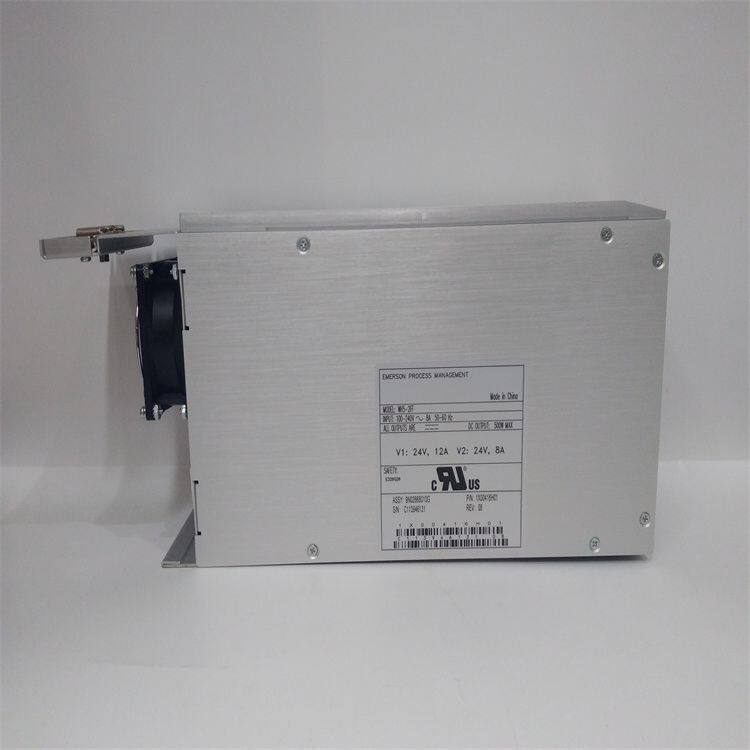

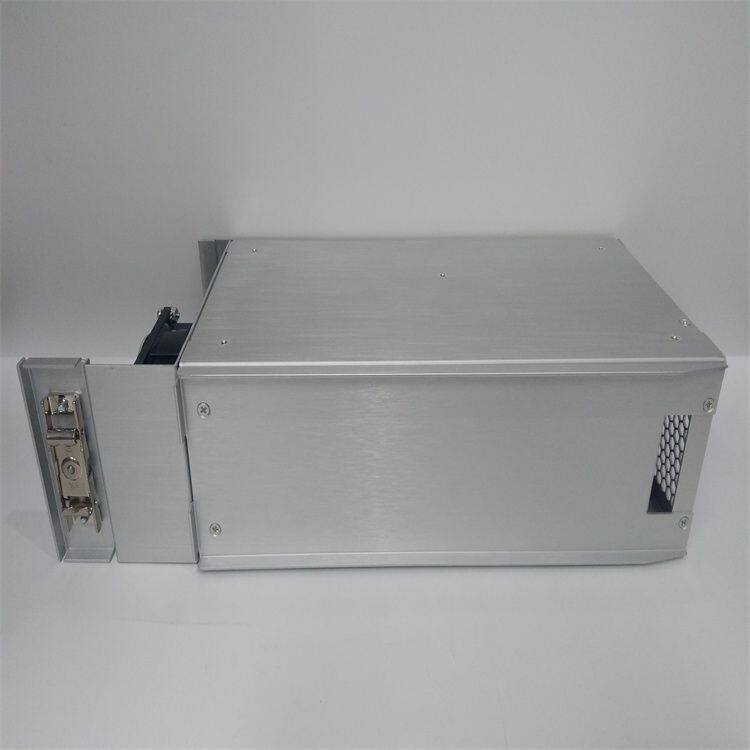

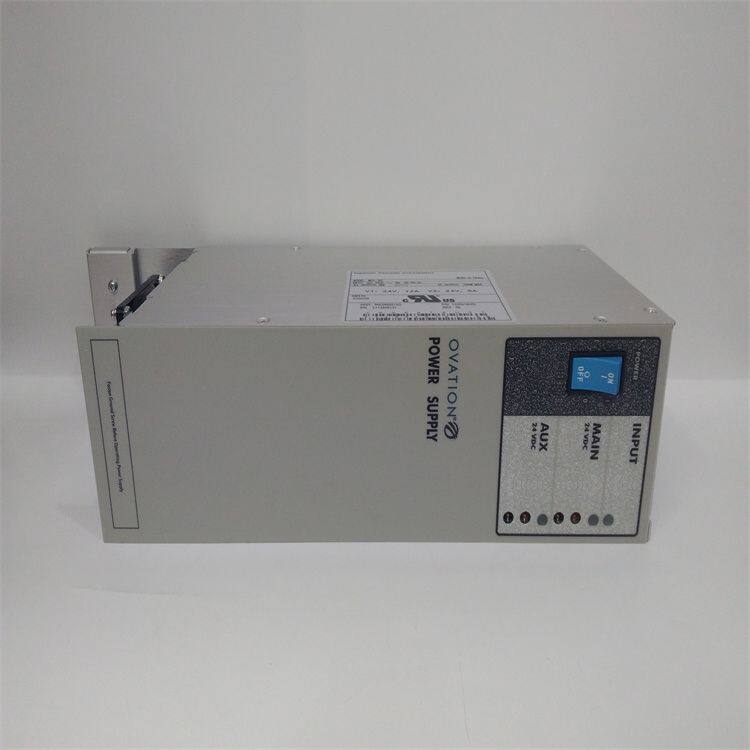

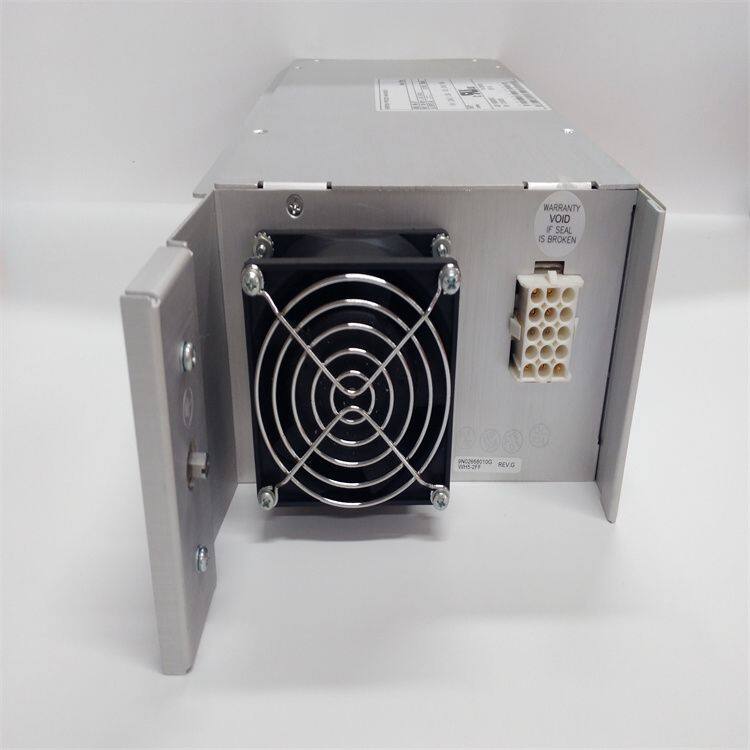

Emerson WH5-2FF 1X00416H01 Power Supply Module

Functional Features: It is a power supply module with two outputs, capable of providing a stable power supply, and is suitable for various industrial automation systems. It has a wide input voltage range and can adapt to voltages from 90 to 264VAC, enabling it to work normally in different power supply environments. It has overvoltage, undervoltage, and short-circuit protection functions, which can effectively protect the module itself and the connected devices, improving the stability and reliability of the system. In addition, this module complies with the RoHS standard and has good environmental sustainability.

Technical Specifications: The output voltage is 24VDC, and the output current is 1A; the input voltage range is 90 to 264VAC; the operating temperature is from -40 to 75°C; the storage temperature is from -40 to 85°C; the size is approximately 2.5x10.2x5.1 inches, and the weight is 2.2 pounds. Application Fields: It is widely used in industrial fields such as industrial automation, process control, and machine control, and can also be used in industries such as medical equipment and telecommunications, providing stable power support for related devices. Appearance Design: It usually adopts a standard industrial module design, making it easy to install in a cabinet or control box. The module may be equipped with indicator lights to display information such as the power status and working status, facilitating users to monitor and troubleshoot faults. Installation and Maintenance: When installing, it is necessary to fix it in an appropriate position and correctly connect the power cable and other relevant cables. In daily use, it is necessary to regularly check the appearance of the module, the status of the indicator lights, and whether the connected cables are loose to ensure the normal operation of the module. At the same time, pay attention to the software updates and patches released by Emerson, and update the firmware and system software of the module in a timely manner to obtain better performance and functions.

Common Faults and Corresponding Solutions:

1. Power Supply Fault Fault Phenomenon: The indicator light of the module does not light up, and it cannot work normally. Possible Causes: Abnormal power input, such as unstable voltage or power outage; loose or damaged power cable connection; fault of the power supply module itself. Solutions: Use a multimeter to measure the power input voltage to confirm whether it is within the voltage range specified by the module. If the voltage is abnormal, check the power supply line and power equipment; check whether the power cable connection is firm and whether there is any damage or breakage. If there is a problem, reconnect or replace the cable; if the power input is normal, try replacing the power supply module to determine whether the fault lies in the module itself.

2. Communication Fault Fault Phenomenon: The module cannot communicate with the system or other devices, and the communication indicator light flashes abnormally or goes out. Possible Causes: Incorrect or loose connection of the communication cable; incorrect communication parameter settings; damaged communication interface; fault of network equipment (such as a switch). Solutions: Check the connection of the communication cable to ensure that it is correct and firm, and re-plug it if necessary; Check whether the communication parameters of the module, such as baud rate, address, and protocol, are consistent with the settings of the system or other devices. If not, reset them; Check whether the communication interface has physical damage, such as bent pins or oxidation. If there is damage, repair or replace it; Check the working status of network equipment, such as a switch, to see if there are problems such as port faults or configuration errors. You can try restarting the switch or changing the port.

3. Input/Output Fault Fault Phenomenon: The analog input/output values are inaccurate, and the digital input/output status is abnormal. Possible Causes: Fault of the sensor or actuator; connection problem of the input/output cable; damage to the module channel; incorrect range setting. Solutions: Use tools such as a multimeter to detect the working status of the sensor or actuator. If there is a fault, repair or replace it; Check the connection of the input/output cable to ensure that it is firm and there is no short circuit or open circuit; Try connecting the input/output signals of the faulty channel to other normal channels to determine whether the channel is damaged. If so, contact a professional to repair or replace the module; Check whether the range setting is correct, such as the range of analog input/output, and adjust it according to the actual situation.

4. Module Overheating Fault Phenomenon: The surface temperature of the module is too high, which may trigger the overheating protection, resulting in a decline in the module's performance or its shutdown. Possible Causes: Poor ventilation in the installation environment; Serious dust accumulation on the module's heat sink; The module operates under high load for a long time. Solutions: Improve the ventilation conditions of the installation environment to ensure that there is enough space around the module for heat dissipation. Install a cooling fan if necessary; Regularly clean the dust on the module's heat sink to maintain good heat dissipation performance; Check the working load of the module and optimize the control program to avoid the module operating under high load for a long time.

5. Software Fault Fault Phenomenon: The module runs unstably, and situations such as program freezing and data loss occur. Possible Causes: The module's firmware version is too low, and there are software vulnerabilities; System software conflicts; Incorrect configuration data. Solutions: Query Emerson's official website to obtain the latest firmware version of the module and update it according to the instructions; Check whether there are any software installed in the system that conflicts with the module, and uninstall or update the relevant software; Back up and restore the module's configuration data, or reconfigure it correctly to ensure the accuracy of the data.
