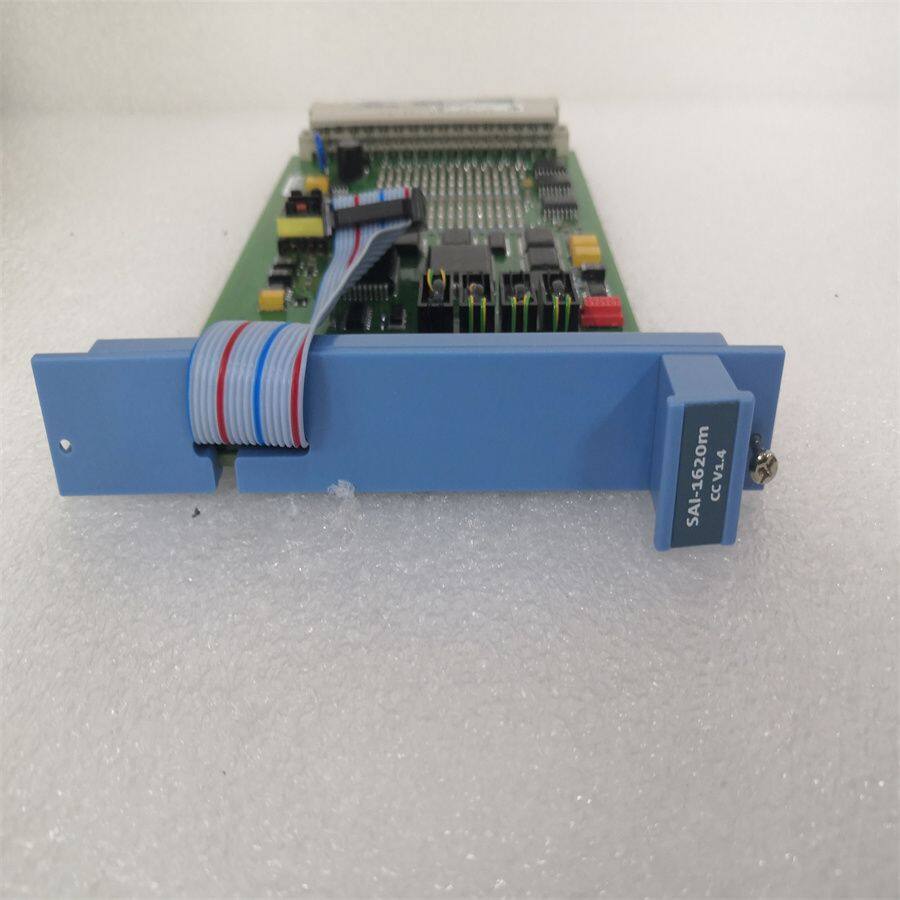

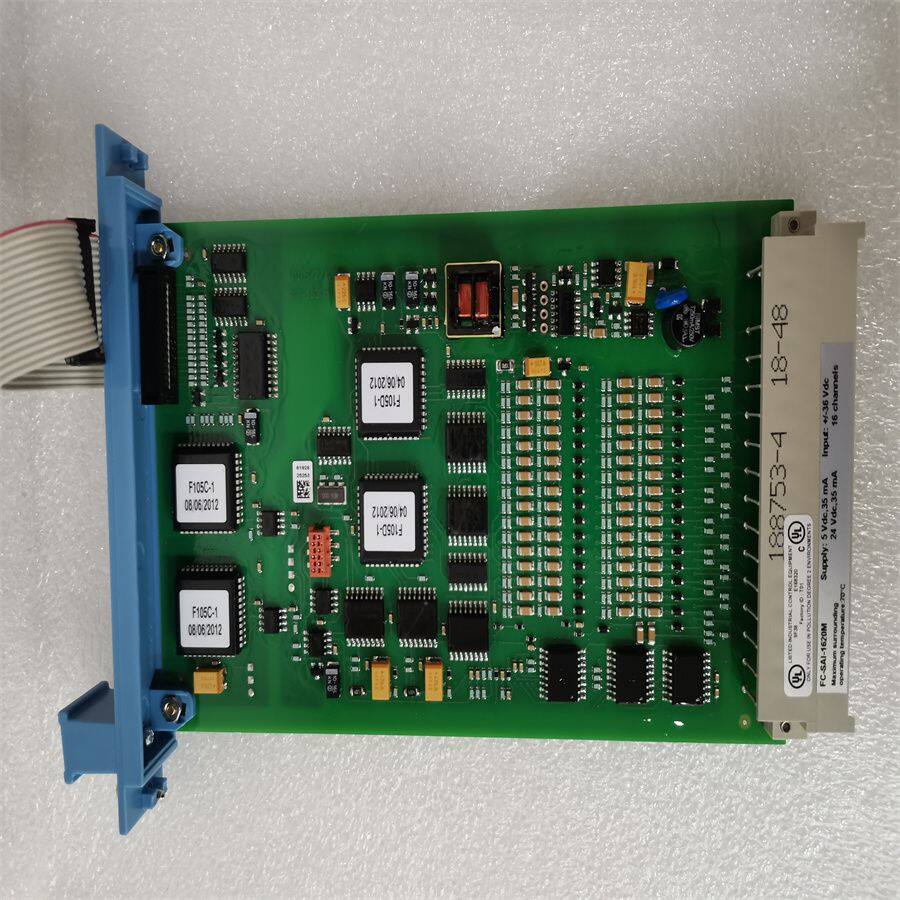

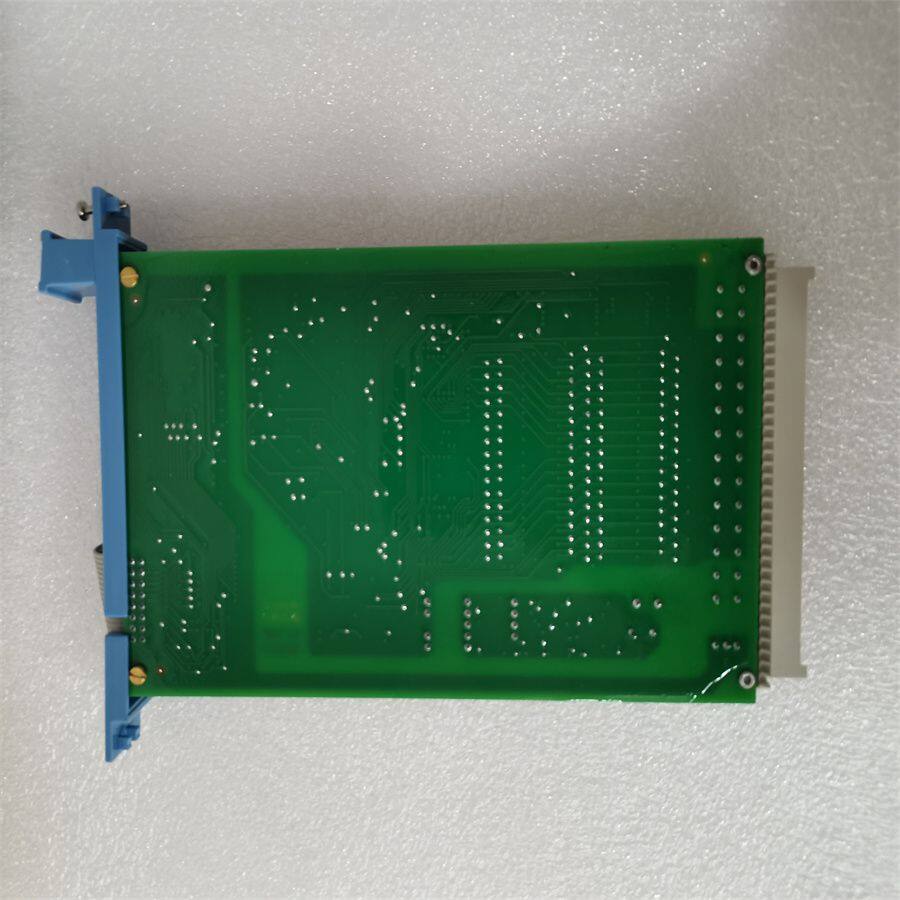

Honeywell FC-SAI-1620M Safety Manager System Module

Functional Features Strong Control Capability: When used as a digital motion control card, it can control 1 to 4 axes of servo or stepper motors, or any combination of the two. By adding Trio's functional daughter board, it can also achieve the control of the 5th axis or expand a communication channel. Analog Input Function: It has 16 analog input channels, and the input signal range is 0 (4)-20mA or 0-4V (varying according to different models). Abundant Digital Input and Output: The main body has 16 built-in 24V digital input ports and 8 built-in output ports. Through expansion, it can achieve the capability of 256 digital input/output points and 32 analog input points. Diverse Communication Interfaces: It is equipped with two built-in RS-232 serial ports and one RS485 port, and reserves a TTL channel, which can be connected to Trio's fiber optic network equipment through an external adapter.

Technical Parameters

Analog Input: 16 analog input channels, supporting high-precision data collection. Advanced analog conversion technology is adopted to ensure the high precision and stability of data collection. Operating Temperature: It has a wide operating temperature range from -40°C to 100°C, adapting to extreme industrial environments. Safety Function: As part of Honeywell's Safety Manager™ system, it supports SIL3 safety level, effectively preventing potential hazards caused by system failures and ensuring the safety of personnel and equipment. Other Parameters: The operating voltage is 360V, the output frequency is up to 20kHz, the loop voltage is 12-30V, which is suitable for high-precision control scenarios such as servo motors.

Application Fields Industrial Automation: In various industrial production lines, it is used for the precise control of motors and the collection and processing of various analog and digital signals to achieve the automated control and optimization of the production process. Process Control: In the process control of industries such as chemical, petroleum, and power, it can monitor and control parameters such as temperature, pressure, flow rate, and liquid level with high precision to ensure the safety and stability of the production process. Robot Control: In the robot control system, as a motion control card, it can precisely control the movement of each axis of the robot to achieve precise actions and operations of the robot.

Application Cases:

Petrochemical Industry: In the petroleum refining process, precise monitoring and control of various process parameters are required. FC-SAI-1620M can collect analog signals such as the temperature, pressure, and liquid level in the reaction kettle, as well as data such as the flow rate and composition of oil products in the pipeline. Through high-precision data collection and conversion, it provides accurate information for the control system, realizing the automated control and optimization of the refining process and ensuring product quality and production safety. For example, in the catalytic cracking unit, this module real-timely monitors the temperature and pressure changes of the reactor. When the parameters exceed the set range, it promptly sends out alarm signals and takes corresponding control measures to prevent accidents. Power Industry: In thermal power plants, FC-SAI-1620M can be used to monitor the operating status of generators, collect electrical parameters such as the voltage, current, and frequency of generators, as well as mechanical parameters such as the temperature, pressure, and rotational speed of steam turbines. Through the real-time monitoring and analysis of these parameters, operation and maintenance personnel can promptly detect potential faults of the equipment, carry out preventive maintenance, and improve the reliability and operating efficiency of the power generation equipment. For example, by monitoring the vibration signals of the steam turbine, potential fault hazards of the equipment can be predicted in advance, avoiding shutdown accidents caused by equipment failures and ensuring the stable supply of electricity. Paper Industry: In the papermaking process, there are high requirements for the control of parameters such as pulp concentration, flow rate, temperature, and the speed and pressure of the paper machine. FC-SAI-1620M can collect these analog signals and convert them into digital signals for processing by the control system. According to the collected data, the control system can real-timely adjust the supply of pulp, the operating speed of the paper machine, etc., to ensure the stable quality of the paper. For example, by precisely controlling the pulp concentration and flow rate, the thickness and strength of the paper can be made uniform, improving the product qualification rate. Biopharmaceutical Industry: The control of environmental parameters in the biopharmaceutical process is very strict. FC-SAI-1620M can be used to monitor and control parameters such as the temperature, humidity, pH value, and dissolved oxygen in the bioreactor. Through high-precision data collection and feedback control, it ensures that the biopharmaceutical process is carried out under stable environmental conditions, guaranteeing the quality and output of drugs. For example, in the vaccine production process, this module precisely controls various parameters of the fermenter, providing a stable environment for vaccine production and ensuring the effectiveness and safety of the vaccine.
