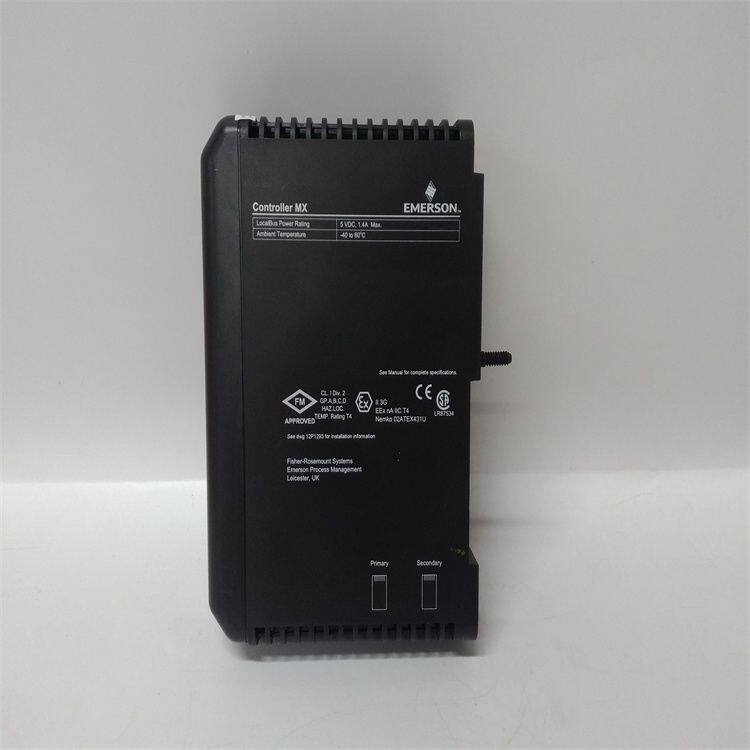

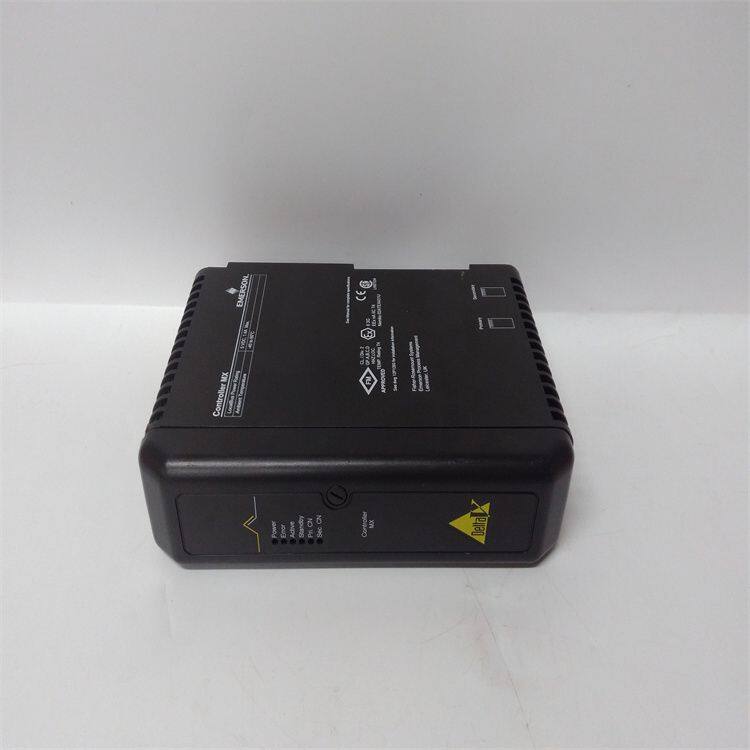

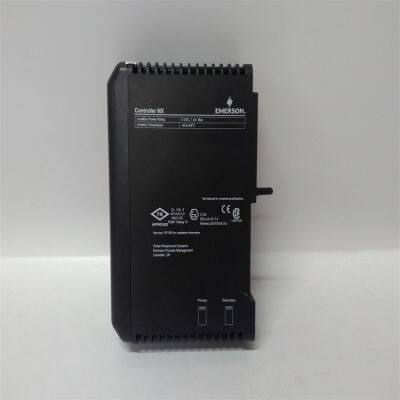

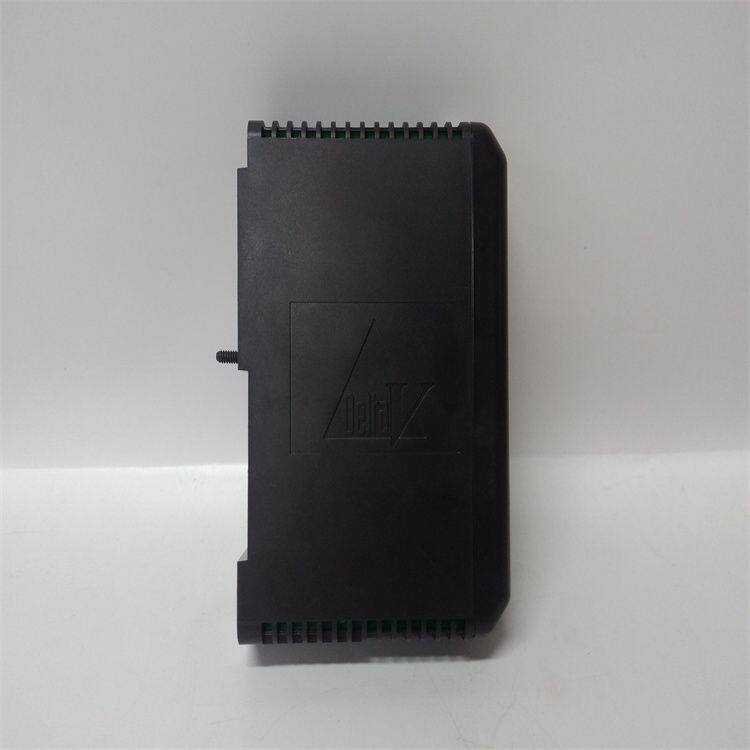

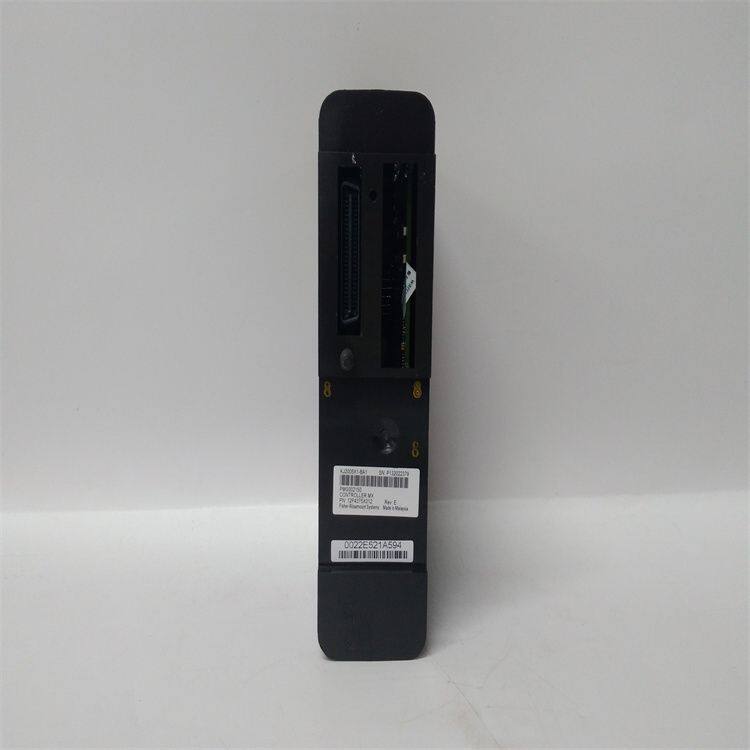

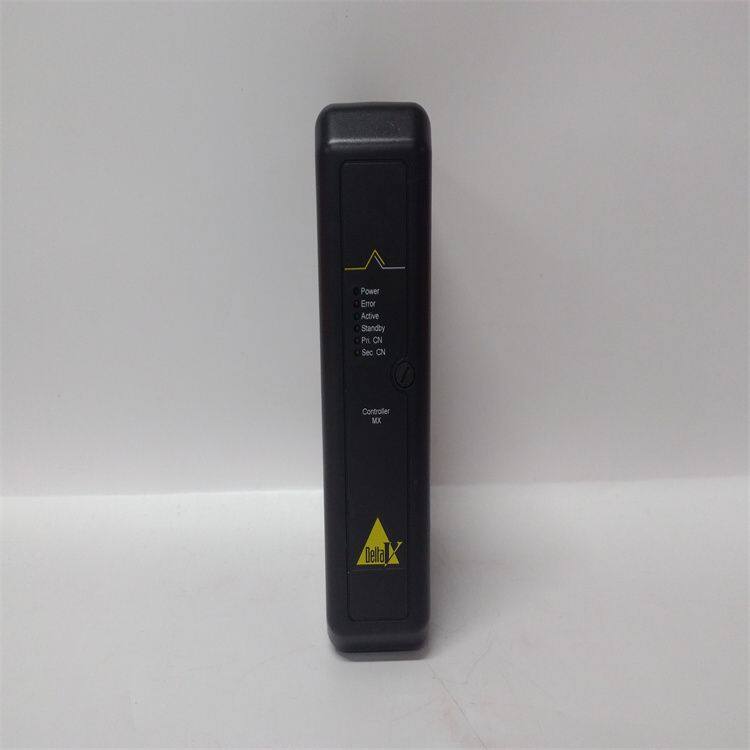

Emerson VE3007 KJ2005X1-BA1 DeltaV MX Controller

The Emerson VE3007 KJ2005X1 - BA1 is an MX controller in the Emerson DeltaV Distributed Control System (DCS).

Features Single-loop Control: Specifically designed for controlling a single process variable or loop, it is suitable for various industrial control applications. Universal Input/Output: It supports a variety of analog and digital input signals, providing flexible output formats for effective process control. Communication Interface: It can be seamlessly connected to the DeltaV system, enabling efficient data exchange and control integration. Reliable Performance: Designed to operate reliably in challenging industrial environments, ensuring stable performance.

Technical Specifications Input/Output: 4 analog inputs, 2 analog outputs, 8 digital inputs, 4 digital outputs. Communication: DeltaV fieldbus. Power Supply: 24VDC. Power Consumption: 25W. Operating Conditions: The operating temperature ranges from - 40°C to 70°C; the storage temperature ranges from - 40°C to 85°C; the humidity is 5% to 95% non-condensing. Dimensions: 230mm×130mm×67mm (9.06 inches×5.12 inches×2.64 inches). Weight: 2.5kg (5.51 pounds). Applications: It is suitable for a series of industrial applications such as process control systems, discrete control applications, industrial process regulation, and sequential control tasks.

The following are usually the steps for connecting the MX controller of Emerson VE3007 KJ2005X1 - BA1 to the DeltaV system: Hardware Installation: Install the MX controller in the electronic rack of the DeltaV system. Ensure that the rack provides appropriate slots and power supply, and carry out correct mechanical installation and electrical connection according to the instructions in the equipment manual to ensure physical stability and reliable electrical connection. Network Connection: Connect the MX controller to other components of the DeltaV system (such as operator stations, engineer stations, other controllers, etc.) through the DeltaV fieldbus. This is the key path for data transmission and communication. Ensure that the connection of the fieldbus is correct, including the selection, laying of cables and the connection of interfaces. Software Configuration: Configure the software of the MX controller in the engineer station of the DeltaV system or relevant configuration tools. This includes setting the parameters of the controller, such as communication parameters, input-output mapping, control strategies, etc., to make it match the overall architecture and control requirements of the DeltaV system. At the same time, add the MX controller to the system configuration, define its role and function in the system, as well as its interaction relationship with other devices.

Channel Allocation: If the system uses CHARM I/O cards (CIOC), the channels of the MX controller need to be allocated and associated with the corresponding CHARMs. Through electronic wiring technology, connect the signals of field devices to the corresponding CHARM channels, and then allocate the CHARM channels to the MX controller to achieve the input-output control of field devices. System Testing: After completing the hardware installation and software configuration, conduct an overall system test. Check whether the communication between the MX controller and other parts of the DeltaV system is normal, verify whether the control strategies can be correctly executed, and whether the input-output signals can be accurately transmitted and processed. By simulating various working conditions and operations, ensure the stability and reliability of the system.
