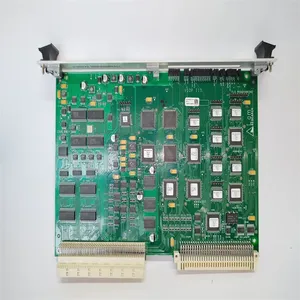

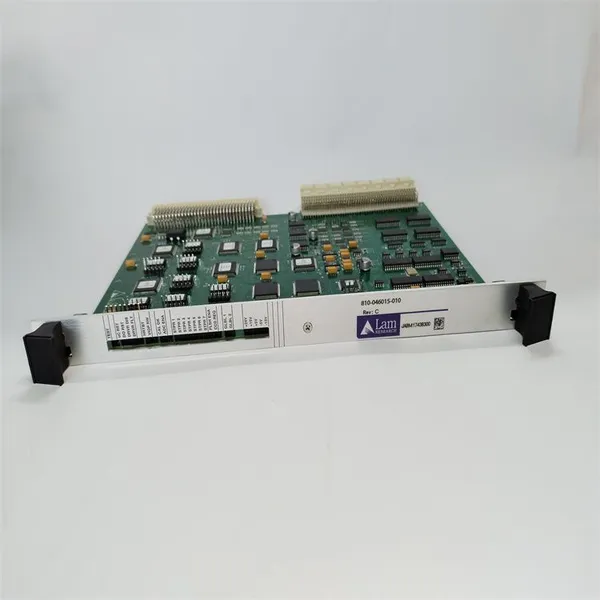

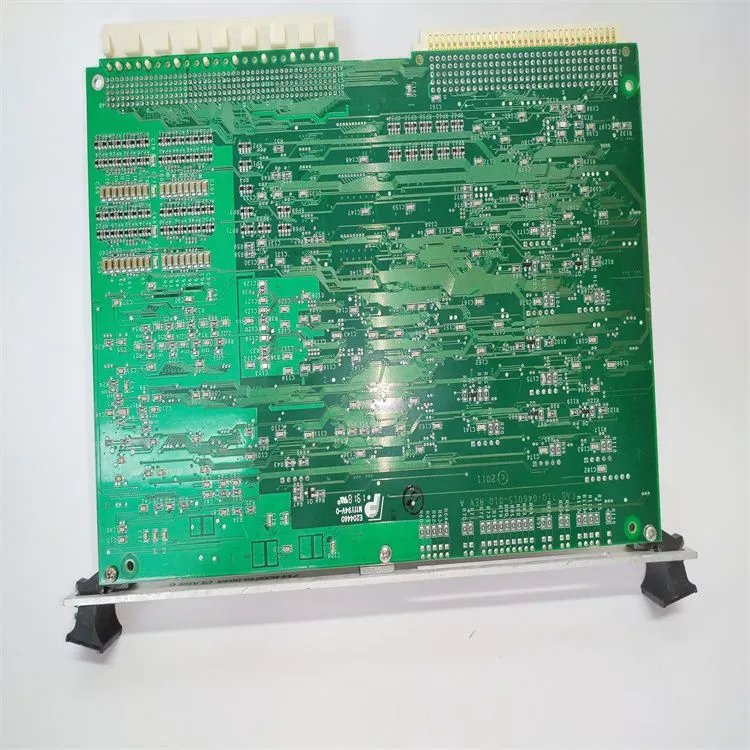

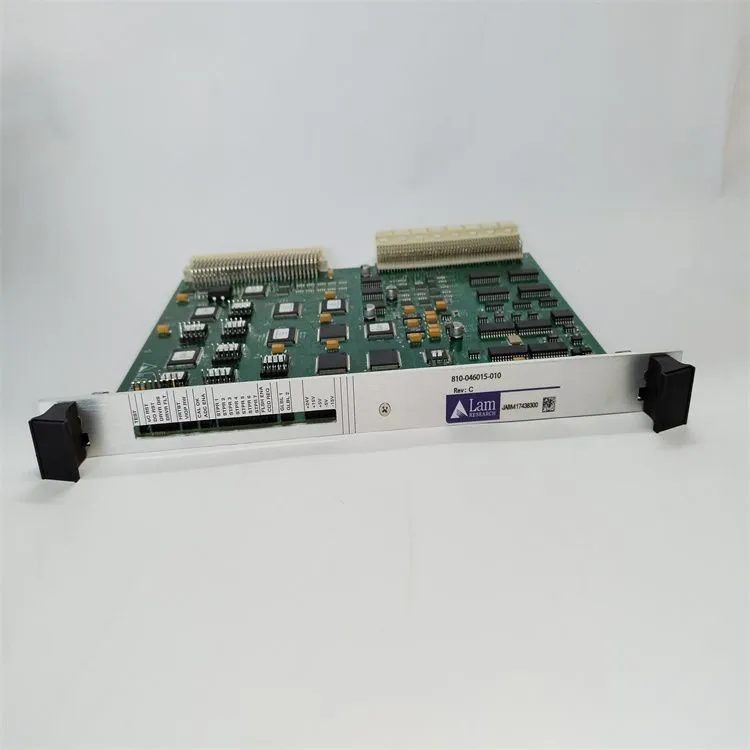

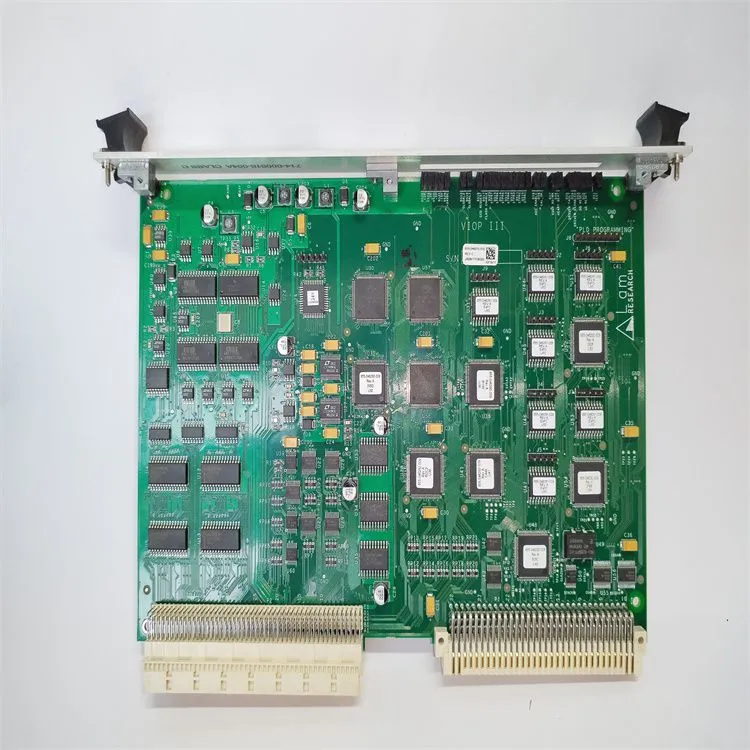

Help CenterLAM 810-046015-010 Circuit Board
Related Products
-
Schneider 140CPU67160C Unity Hot Standby ProcessoUS$ 260 - 1720MOQ: 1 Unit -
Kollmorgen S20330-SRS Digital AC Servo DriverUS$ 200 - 1800MOQ: 1 Unit
-
ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H Diagnostic ModuleUS$ 300 - 1500MOQ: 1 Unit
-
National Instruments PXIE-8840QC Embedded ControllerUS$ 300 - 1600MOQ: 1 Unit
-
National Instruments PXI-4071 Digital MultimeterUS$ 400 - 1600MOQ: 1 Unit
LAM 810-046015-010 is a PCB board with ESEC control function, which has a wide range of applications in the following fields: Automobile Manufacturing: On the automobile production line, it is used for automated control equipment, such as the control of robotic arms and the control of automobile parts processing equipment. Through precise control functions, it ensures the processing accuracy and production efficiency of automobile parts, and guarantees the quality of automobile products. Food and Beverage Industry: It is applied to the production, packaging and other links of food and beverages. For example, it controls the operation of food processing equipment to achieve automated operations such as ingredient batching, mixing, and filling; it controls packaging equipment to ensure the packaging quality and efficiency of products, while meeting the strict hygiene and safety requirements of the food industry. Pulp and Paper Industry: It can be used for the automated control of pulp production equipment, paper machines, etc. It precisely controls parameters such as the thickness, humidity, and tension of paper, improves the quality and production efficiency of paper, and optimizes the papermaking process. Water Industry and Sewage Treatment: It plays a role in water treatment equipment and sewage treatment systems. It controls the operation of equipment such as water pumps, valves, and filters to achieve automated management of water purification, transportation, and distribution, improving the utilization efficiency of water resources and the treatment effect. Petrochemical Industry: It is used in various automated control scenarios in the petrochemical production process, such as the control of oil refining equipment and chemical reactors. It monitors and controls parameters such as temperature, pressure, and flow rate in the production process in real time to ensure the safety and stability of petrochemical production, and improve production efficiency and product quality. Electronic Manufacturing: In the production process of electronic products, such as chip manufacturing and circuit board assembly, it is used to control automated equipment, ensuring the production accuracy and quality of electronic products, improving production efficiency, and meeting the requirements of rapid development and high precision in the electronics industry.
Common Faults and Solutions 1. Power Supply Fault Fault Phenomenon: The board cannot start normally, the indicator light does not light up, or abnormal power supply error messages appear. Possible Causes: Unstable input voltage, exceeding the working voltage range (110 - 240V), loose or damaged power supply interface, damage to internal power supply circuit components, etc. Solutions: First, check whether the input power supply is within the specified range and measure the power supply voltage with a voltmeter. If the voltage is normal, check whether the power supply interface is firmly connected, and whether there are any looseness, oxidation, etc. If so, re-plug or clean the interface. If the above are all normal, it may be that the internal power supply circuit components are damaged, and professional personnel are required to check and replace the damaged components, such as power chips, capacitors, resistors, etc.
2. Abnormal Control Function Fault Phenomenon: The ESEC control function cannot work properly, such as being unable to edit configuration files, change parameters, or the equipment cannot operate according to the set parameters. Possible Causes: Software program errors, damaged configuration files, control chip failures, problems with the communication interface with other devices, etc. Solutions: First, try restarting the board to see if it can return to normal. If not, check whether the configuration file is correct, and try re-importing the correct configuration file. If it is a software program problem, it may be necessary to update or reinstall the relevant control software. If a control chip failure is suspected, professional personnel are required to detect and replace it. Check the communication interface with other devices to ensure that the connection is normal and the communication protocol is set correctly. If necessary, replace the communication interface or related cables.
3. Overheating Problem Fault Phenomenon: The temperature of the board is too high after running for a period of time, which may lead to a decrease in performance or unstable conditions. Possible Causes: The working environment temperature is too high, exceeding its normal working temperature range; the heat dissipation components on the board (such as heat sinks) are improperly installed or damaged; the aging or failure of internal components leads to increased power consumption and excessive heat generation. Solutions: Improve the working environment to ensure that the ambient temperature is within an appropriate range. Check the installation of heat dissipation components, such as whether the heat sink is closely attached to the heat-generating components. If there is looseness or damage, reinstall or replace the heat sink. For overheating caused by the aging or failure of internal components, professional personnel are required to detect and replace the problematic components.
4. Short Circuit Problem Fault Phenomenon: The power supply is short-circuited, causing the circuit protection device to trip, or some components on the board are burned out. Possible Causes: Damage to components on the circuit board, short circuits of pins, damage or short circuits of external connection cables, short circuits at soldering points, etc. Solutions: Disconnect the power supply and check whether there are obvious signs of damage to the components on the circuit board, such as charring or deformation. Use a multimeter to detect the resistance value of the components to determine whether there is a short circuit. Check whether there are any damaged or short-circuited parts of the external connection cables, and replace the cables if necessary. For soldering points, check whether there are any virtual soldering or short circuit conditions, and re-solder if necessary.
Main Products： Covering world-renowned brands: Bently Nevada、Triconex、Woodward、Foxboro、Westinghouse、Reliance、Schneider Modicon、ABB、Allen-Bradley、Motorola、GE Fanuc、Yaskawa、ACSO、YOKOGAWA、Rexroth、NI、Bosch Rexroth、ICS Triplex、Kollmorgen、Mitsubishi、MOOG、Emerson、B&R、SST、ALSTOM、EPRO、HIMA、HONEYWELL、prosoft、AMAT 、SIEMENS、KUKA、LAM Product categories include: DCS system parts, robot system spare parts, large-scale servo system components, widely applied in power, chemical, metallurgy, smart manufacturing, and other industries. Service Advantages： ✅ Original imports with quality assurance ✅ Ample stock for rapid delivery ✅ Professional team for technical support ✅ Global logistics for worry-free coverage
