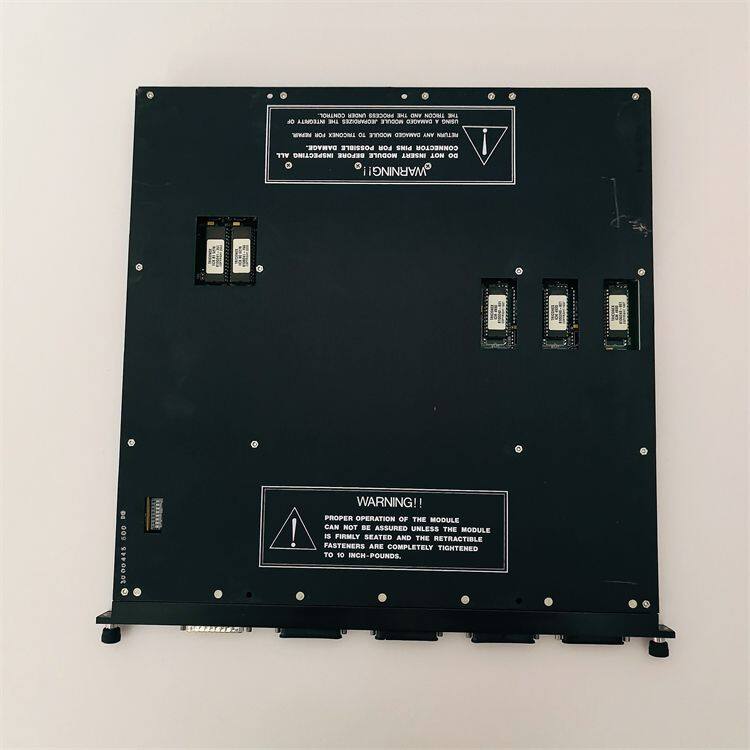

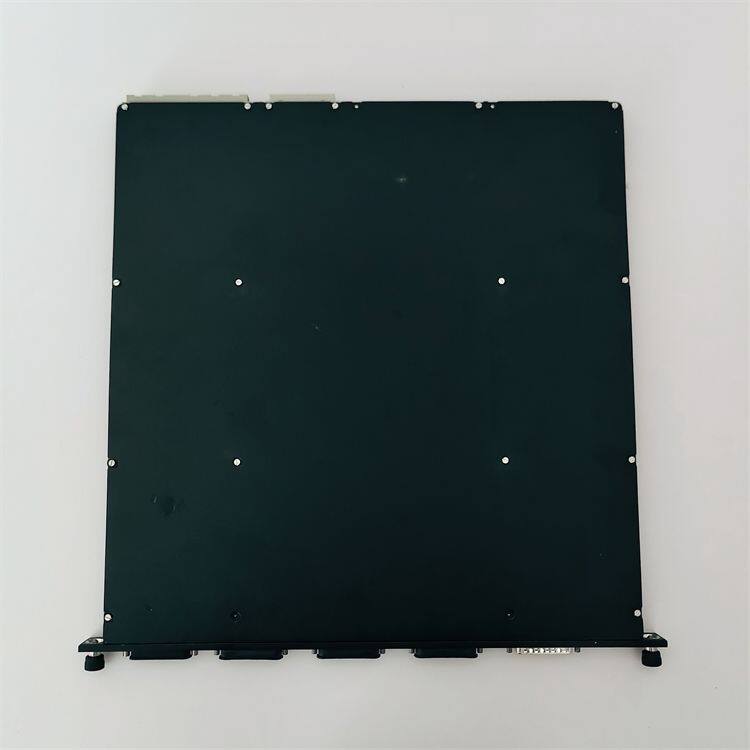

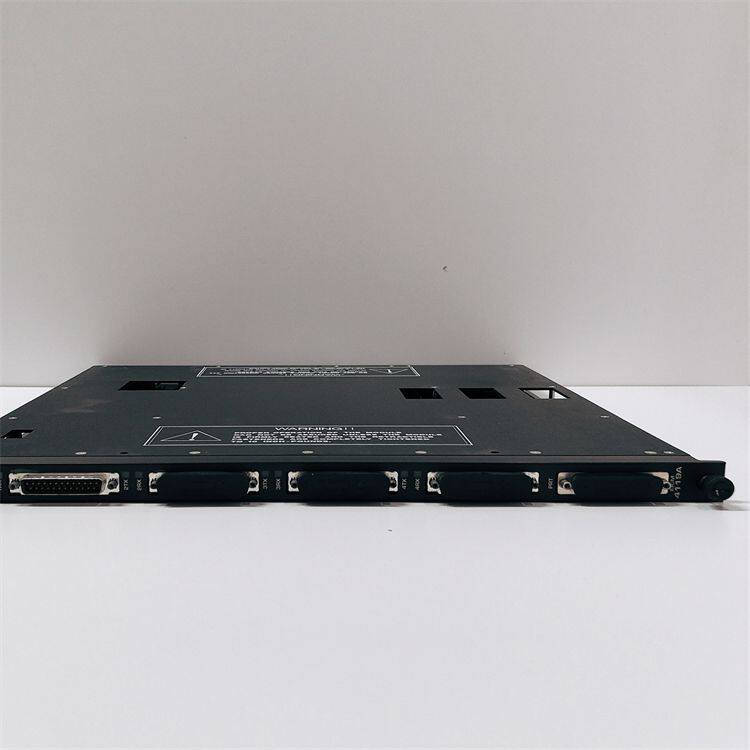

The Triconex 4119A is an enhanced intelligent module, which is commonly used in industrial automation systems to monitor and control field devices, so as to achieve the monitoring and control of the production process. Product Features Highly Integrated: It usually has a highly integrated hardware design, integrating various functions and interfaces, including digital input/output (DI/DO), analog input/output (AI/AO), communication interfaces, etc. Multiple Input and Output Types: It supports multiple different types of input and output signals, such as digital input (DI), digital output (DO), analog input (AI), analog output (AO), etc., to meet the interface requirements of different devices. Intelligent Control: It has an intelligent control function, which can process and judge the input signals according to the set logical conditions and algorithms, and realize intelligent control strategies. Rich Communication Interfaces: It usually has multiple communication interfaces, such as Ethernet, serial communication, Modbus, etc., which is convenient for data exchange and communication with other devices or systems. Programmability: It has a programmable control function, and users can program and configure it according to their needs to achieve customized control logic and functions. Redundant Design: It adopts a redundant design and has redundant input and output channels to ensure that the system can still continue to operate when a single channel fails.
Application Scenarios Real-time Acquisition and Control: It can acquire external signals in real time and control external devices, and accurately control the operation status of the industrial process according to the control logic and algorithms of the system. Industrial Safety System: It is specifically designed for industrial safety systems, used to acquire external signals and control external devices to ensure the safety and reliability of the industrial system. Integration with Other Systems: It supports the integration with other industrial automation systems or control systems to achieve data sharing and joint control.
Fault Cases of the Triconex 4119A Module: 1. Communication Faults Case: The module cannot establish a communication connection with the host computer or other devices. The possible reasons include damage to the communication interface, such as problems like bent pins or short circuits in the physical interface; incorrect setting of communication parameters, such as the mismatch of settings like baud rate, data bits, stop bits, etc. with other devices; incorrect configuration or malfunction of the communication protocol, resulting in the inability to correctly parse and transmit data. Case: The data transmission is unstable during the communication process, with phenomena such as data loss, errors, or delays. It may be that the communication line is affected by electromagnetic interference. For example, large motors, frequency converters and other devices nearby generate a strong electromagnetic field; it may also be that the network load is too high, resulting in data transmission congestion, or problems such as overflow of the communication buffer of the module occur.
2. Input and Output Faults Case: The data collected by the analog input channel has a large deviation from the actual value or is unstable. It may be a sensor failure, such as the sensor being damaged, aging, or affected by environmental factors resulting in inaccurate output; it may also be that there are problems with the input signal conditioning circuit of the module, such as damage to the filter capacitor, malfunction of the amplifier, etc., which affects the processing and conversion of the signal. Case: The digital output channel cannot output signals normally or the output status is incorrect. It may be that the output relay is damaged, resulting in the inability to connect or disconnect the circuit; or it is a malfunction of the output driver chip of the module, which cannot control the action of the relay; in addition, errors in the output logic of the software program may also lead to abnormal output.
3. Power Supply Faults Case: The module shows no response after being powered on, and the indicator light does not light up. It may be that the power input line is open-circuited, short-circuited or has poor contact, resulting in the module being unable to obtain the normal operating voltage; it may also be that there is a fault in the power conversion circuit inside the module, such as damage to the power chip, blown fuse, etc., which makes it unable to convert the input voltage into a suitable operating voltage for the module to use. Case: The module freezes, restarts or operates unstably during the operation process. It may be that the power supply voltage fluctuates too much and exceeds the allowable operating range of the module; or the power supply ripple is too large, which interferes with the digital circuit of the module, resulting in abnormal operation of the module.
