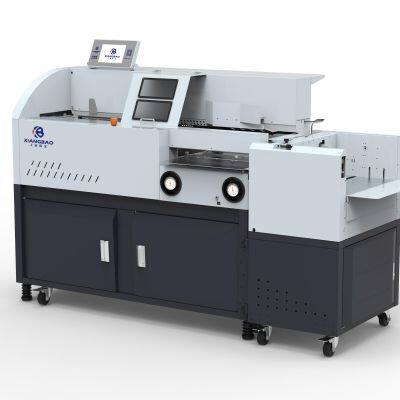

Shanghai Horizon XB-AR1000H flagship version glue automatic binding machine

Introduction to the machine features:

 1. Servo frequency conversion technology: According to the different thickness characteristics of the book, during work, the rubber wheel rotates (frequency conversion), automatic speed adjustment helps the glue to be fuller, and the cover of the wall walking is more accurate and stable.

2. Design of the book clipping disk device: quick clamping with one click, automatic detection of books with different thicknesses, and automatic distance change of indentation.

3. Quick adjustment design for front and back position of the book core: When binding the book, you can quickly adjust the front and back position according to your needs (not only: the book core is on the inside of the cover or flush with the cover).

4. Book unilateral pouring design: Avoid one-side rolling when binding a book. It's easier to pick up a book.

5.  Redundant glue break design: effectively reduces glue dripping and cutting convenience of the clamping table, and improves work efficiency. In addition, the distance between the glue breaking can be adjusted according to the thickness of the binding book (the head of the book does not overflow glue) .

6. Alloy steel cutter plate + tungsten steel groove cutter design: Ensure that every piece of the book will be woven and grooved, and there will be no leakage and milling, so that the glueing effect will be better. The middle of the cutter plate is equipped with wind wheel blades and an external confetti collection device makes cleaning the confetti easier. The system is equipped with a reminder function for regular cleaning of confetti.

7.  Back ridge adjustment technology; rapid adjustment of groove depth (requires for firm binding of different milling back noise, paper dust and different papers).

8.  Integrated glue groove design: The integrated aluminum glue groove is larger, the heat is evenly affected, and the glue capacity is relatively large, which reduces the frequency of glue addition during work. Improved work efficiency.

9.  Independent glue box design: improve work efficiency, add glue while installing (the glue does not stop the machine).

10. The fine-tuning design of grinding wheel: independent temperature control, making the glue control easier, and the height can be adjusted.

11. Automatic side glue design: The glue is equipped with different thicknesses of books to automatically adapt to the application of glue measurement, without adjustment and parameters.

12. Square spine adjusting design: The angle can be fine-tuned according to the thickness of the book in the binding book, which is simple and convenient.

13. Intelligent smoke exhausting design: control smoke exhaust (on or close) according to real-time glue temperature changes (on or close) is more environmentally friendly and safer to use, and the glue can be directly discharged to the outdoors.

14. Shelving desk design: no need to assist the desk to place the book core, cover, finished product, does not take up space, and is ergonomic.

15. Vacuum CNC paper feeding design: choose a vacuum air pump to save costs instead of external air pumps. Multiple suction nozzles firmly absorb the paper and enter the cover stably.

16.  Anti-double-feeding design: Use electronic control technology to shake multiple times to avoid the occurrence of double-shot situation.

17. Cover size CNC technology: simple operation and only need to design within the screen to complete positioning.

18.  Front blowing design: Blow the cover away before entering the cover effectively prevent double sheets.

19.  Forward and reverse indentation design: Two spine indentation lines and two leaf turning indentation lines, making sure the glue binding effect is more beautiful and square.

Technical parameters:

glue length (mm) 110-320

glue thickness (mm) 1-55

book core height (mm) 135-210

manual maximum cover (mm) L660xW320

automatic maximum cover (mm) L480xW320

glue binding minimum cover (mm) L270xW135

cover thickness (g) 120-300

cover stacking height 88mm

Cover method lifting and lowering

cover indentation CNC rolling cover

side gauge CNC adjusting

glue speed about 300-420 (this/hour)

Gluing time (min) About 35 minutes

Heating power 1.1KW

Pre-adhesive box for tri-gluing wheels: ✔

Gluing roller height adjustment ✔

Self-reset side rubber wheel ✔

Milling cutter method 20-tooth alloy steel cutter plate + tungsten steel

grooved cutter pre-restoring book platform ✔

Automatic measurement of book thickness ✔

Book shelving platform (back side of the screen) ✔

Adaptive adjustment of the clamp surface height and low (handwheel)

Voltage/power 220V / 3.4KW

CNC fast book clip ✔

Quick book pickup mode ✔

Milling cutter motor power 1.3KW CNC left and right secondary positioning ✔

Set this console ✔

Display mode 7-inch touch screen (resistive screen)

Net weight (kg) 410

Gross weight (kg) 488.5 (the weight is about 600 kg by volume, and the logistics and shipment shall prevail)

Whole machine size (mm) 1980X775X1395

Package size (mm) 2198*1035*1550
