The 59T and 66T series controls from Therm-O-Disc are designed to meet the high electrical capacity requirements of electric water heaters. Both use a temperature sensitive bimetal disc to deliver snap-action to the contacts. The speed and force of contact separation provides long-dependable control life at high electrical loads.

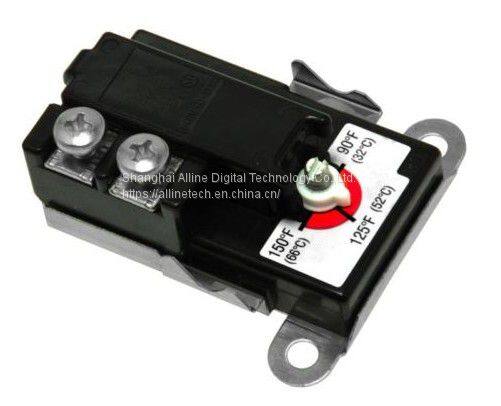

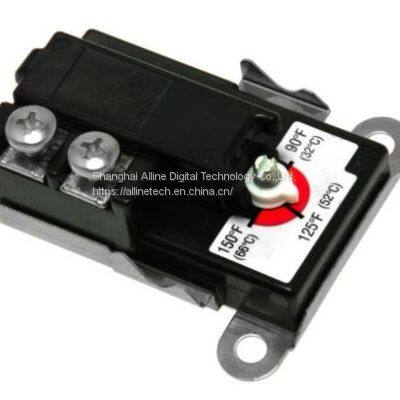

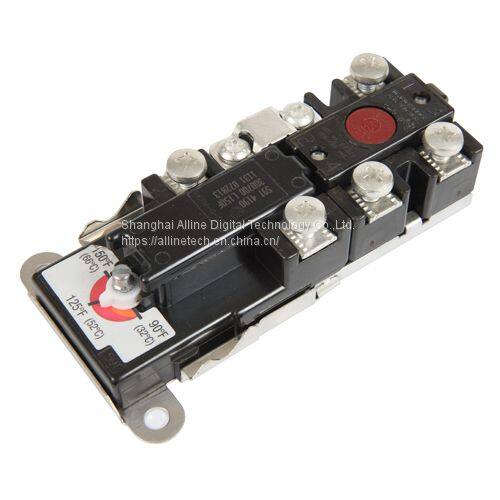

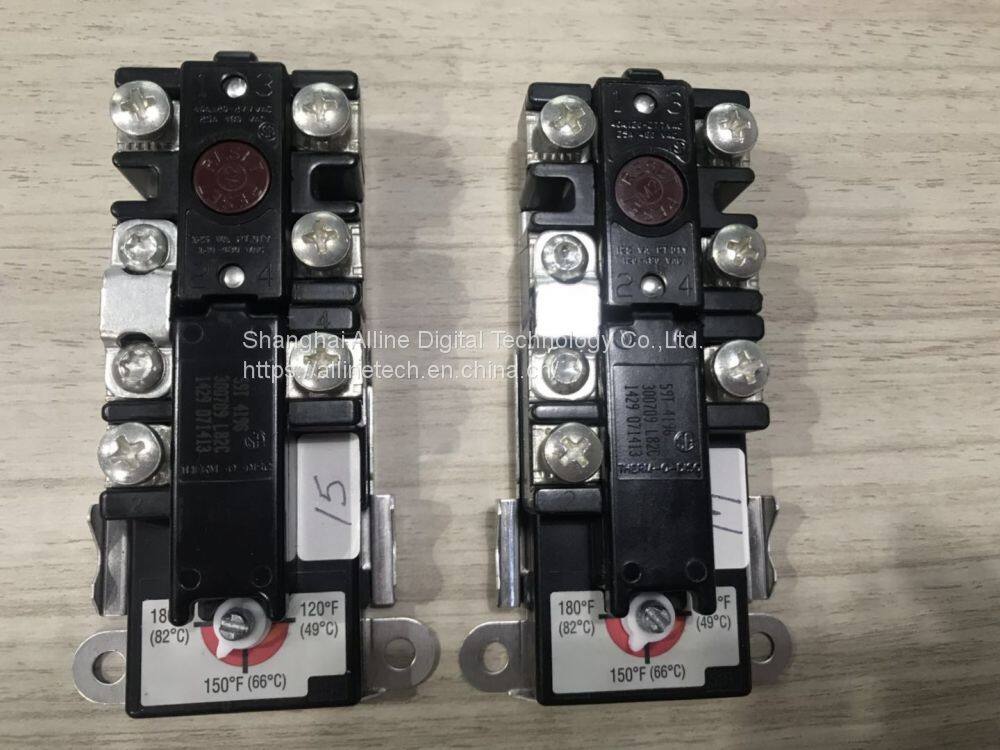

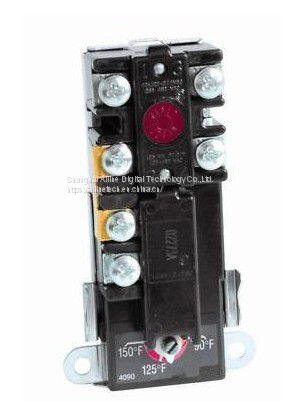

The 59T series of adjustable, automatic reset thermostats is designed to meet the high electrical capacity requirements of electric water heaters. It’s design uses a snap action, temperature sensitive bimetal disc to provide long dependable control life at electric loads up to 30 amps at 250VAC. The 59T can be supplied in combination with our 66T manual reset limit as an industry standard electric water heater temperature control/limit.
Features:
Single pole, single throw or single pole, double throw, open on temperature rise construction
59T mounting tabs snap into industry standard mounting brackets to mount to surface of water heater tank.
Welded construction used on all internal current carrying components for greater electrical integrity
10-32 tin plated terminal screws for electrical connections
Temperature Calibration:
The 59T is adjustable over a range of 60°F. The lowest available calibration is 90°F (32°C) and the highest is 200°F (93°C)
Standard temperature differentials available :
Single pole, single throw = 5-15°F ( 3-8°C)
Single pole, double throw = 17 - 27°F ( 9-15°C)
See data sheet (Product Download Tab) for detailed temperature calibration information
Applications
Water Heater
Agency Ratings: UL /CSA-----250VAC / 30 amps / 100,000 cycles,277VAC / 25 amps / 100,000 cycles
See data sheet (Product Download Tab) for detailed ratings information including maximum calibration temperatures for Agency electrical ratings.
Model:
59T 4000 300529 L80C , 59T 4000 300400 L170F , 59T 4062 300490 L93C , 59T 4090 300500 L150F , 59T 4190 300700 L150F , 59T 4196 300711 L82C , 59T 4196 300709 L82C , 59T 4200 300887 L82C , 59T 4200 300888 L82C , 59T 4300 301000 L180F , 59T 300800 L180F , 59T 300801 L95C , 59T 300825 L80F , 59T 300826 L85C , 59T 300842 L75C , 59T 300846 L95C , 59T 300851 L90C , 59T 301006 L95C , 59T 301011 L180F
66T Manual Reset Bimetal Limit

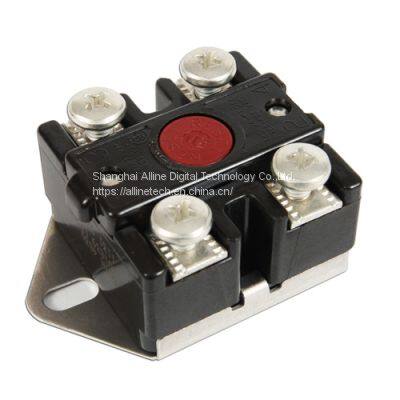

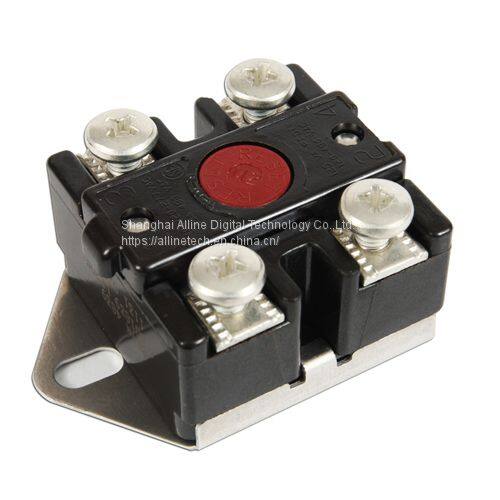

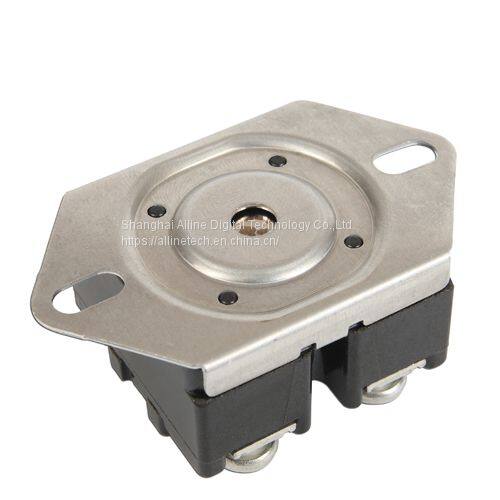

The 66T manual reset temperature limit from Therm-O-Disc? offers proven reliability in a compact, versatile, cost-effective design. The snap action of the bimetal disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 40 amps at 277 VAC. The 66T can be supplied in combination with with our 59T adjustable water heater control as an industry standard electric water heater temperature control/limit.
Features:
Double pole, single throw (“M2 Trip Free” construction)
Welded construction used on all internal current carrying components for greater electrical integrity
10-32 tin plated terminal screws for electrical connections
66T standard mounting plate designed to interface with our 59T adjustable temperature control
66TM available with surface mount tabs ( when not used with our 59T )
Temperature Calibration:
Max / Min available calibrations:
235°F ( 113°) maximum calibration
160°F ( 71°C) minimum calibration
See data sheet (Product Download Tab) for detailed temperature calibration information
Applications
Cooking
Heating
Laundry
Agency Ratings: UL /CSA -----277 VAC / 40 amps/ 6,000 cycles
See data sheet (Product Download Tab) for detailed ratings information including maximum calibration temperatures for Agency electrical ratings
Model：
66T 301204 ，301254 ，301202，301247 ，301204 ，301243 ，301202 ，301246 ，301236 ，301204，301300 ，301690 ，301666
