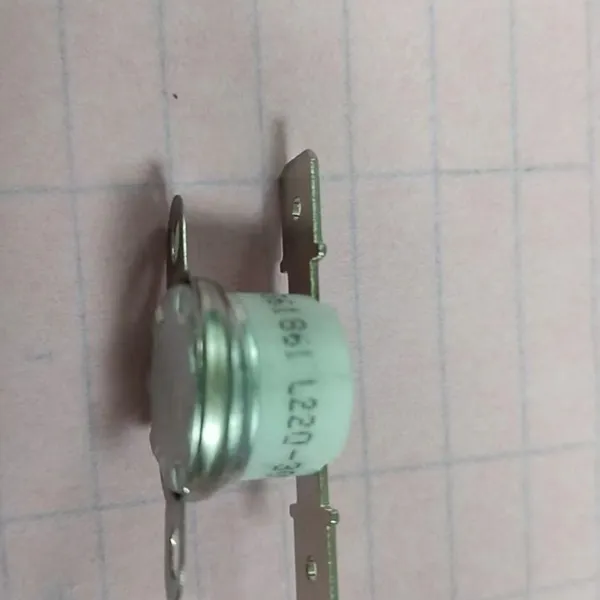

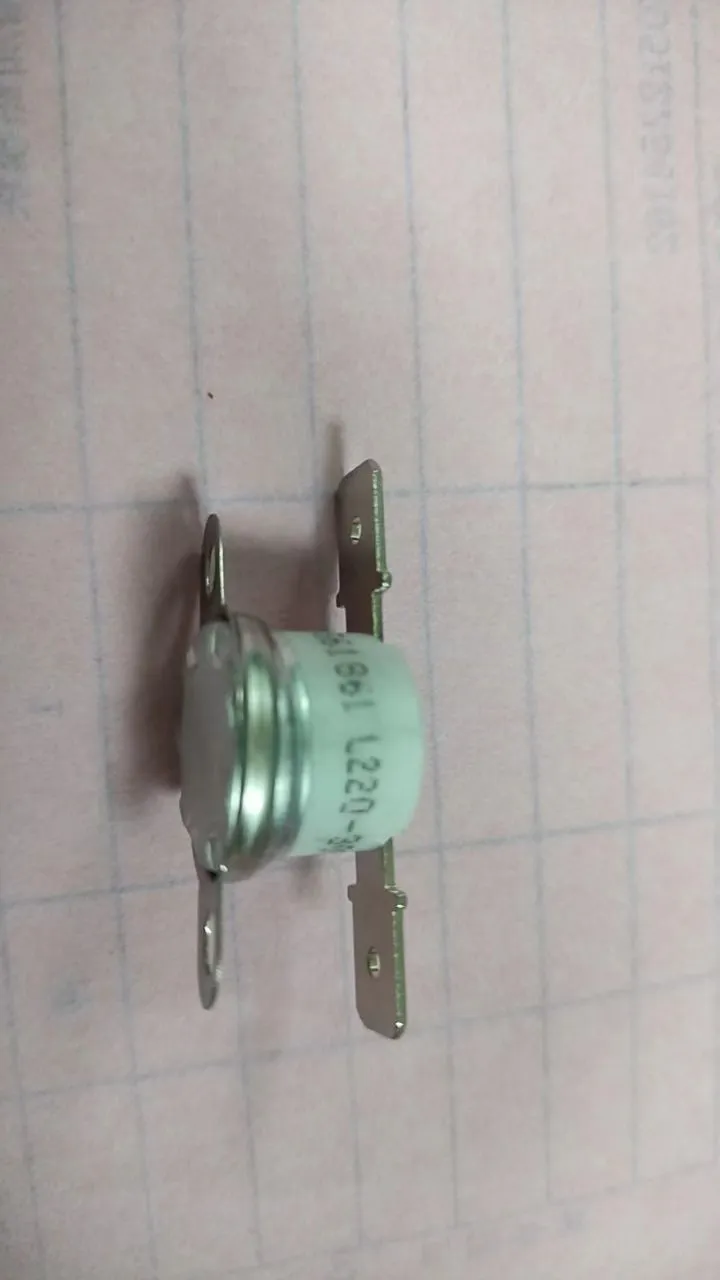

ESKA Auto Reset Temperature-Switches 36TXE21/36TXH21/36TXE22
The performance of temperature switches is based on an integral bimetallic element that will open or close the circuit according to defined ratings. Temperature switches can be used to reliably control heating and cooling processes. They can also be applied for the protection against excessive temperatures, unless an electric circuit needs to be interrupted permanently.
Rated current: 10 A / 15 A / 16 A
Rated voltage: AC 120 V / AC 250 V
Mounting options: Docking flange
Approvals: UL CSA VDE CE RoHS
Switching cycles: 100.000 - 10 A & 250V / 15 A & 120 V ; 30.000 - 16 A & 250V
Terminal Terminal Terminal
Art. No. Vertical Horizonta Solder Topen (± 3°C) Tclose (± 4°C)
36TXE21 5 -10
36TXE21 8 -5
36TXE21 611896 611922 10 0
36TXE21 611898 611924 20 10
36TXE21 611899 611925 25 15
36TXE21 611900 611926 Auf 30 20
36TXE21 611901 611927 Anfrage 35 25
36TXE21 611808 611928 40 25
36TXE21 611902 611929 / 45 30
36TXE21 611810 611930 50 35
36TXE21 611903 611931 On 55 40
36TXE21 611812 611932 request 60 45
36TXE21 611904 611933 65 50
36TXE21 611814 611934 70 55
36TXE21 611905 611935 75 60
36TXE21 611816 611936 80 65
36TXE21 611906 611937 85 70
36TXE21 611818 611938 90 75
36TXE21 611907 611939 95 80
36TXE21 611819 611940 100 85
36TXE21 611908 611941 105 90
36TXE21 611820 611942 110 95
36TXE21 611910 611943 120 90
36TXE21 611911 611944 130 100
36TXE21 611912 611945 140 110
36TXE21 611913 611946 150 120
36TXH21 611914 611918 160 120
36TXH21 611915 611919 170 130
36TXH21 611916 611920 180 140
36TXH21 611917 611921 200 160
36TXE22 -10 5
36TXE22 -5 8
36TXE22 611966 611967 25 35
36TXE22 611807 611954 30 45
36TXE22 611948 611955 Auf 35 50
36TXE22 611909 611956 Anfrage 40 55
36TXE22 611949 611957 45 60
36TXE22 611811 611958 / 50 65
36TXE22 611950 611959 55 70
36TXE22 611813 611960 On 60 75
36TXE22 611951 611961 request 65 80
36TXE22 611815 611962 70 85
36TXE22 611952 611963 75 90
36TXE22 611817 611964 80 95
36TXE22 611993 611994 85 100
36TXE22 90 105
36TXE22 95 110
