PCC PBR380V/PBR380VP Thermostats for Silicone Heater & Heating Jacket

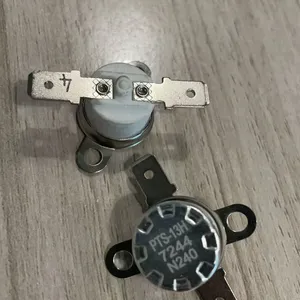

PCC PBR380V/PBR380VP Thermostats for Silicone Heater & Heating Jacket photo-1
PCC PBR380V/PBR380VP Thermostats for Silicone Heater & Heating Jacket photo-2

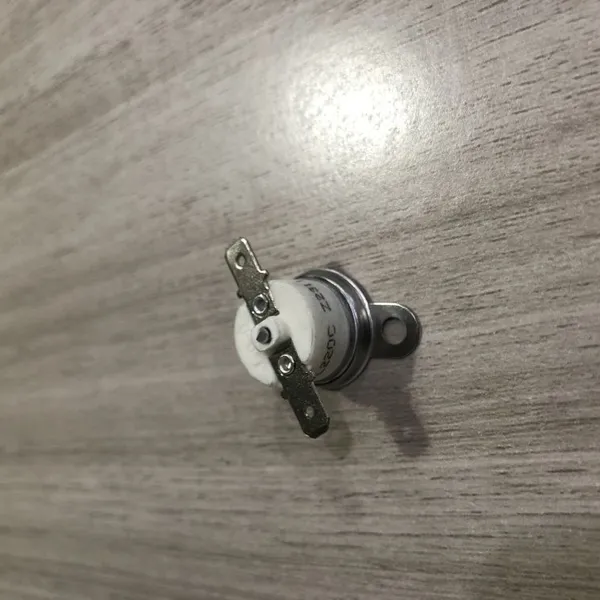

PCC PBR380V/PBR380VP Thermostats for Silicone Heater & Heating Jacket photo-3

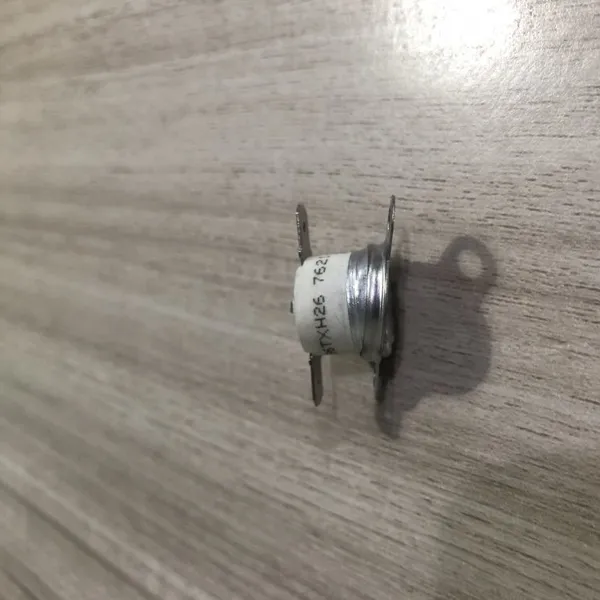

PCC PBR380V/PBR380VP Thermostats for Silicone Heater & Heating Jacket photo-4
PCC PBR380V/PBR380VP Thermostats for Silicone Heater & Heating Jacket photo-5
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
ROHS, Other, UL TUV
Display Type:
Other, Non
Brand:
Other, PCC
Payment & Shipping
Payment Methods:
Port of Shipment:
Shang Hai
Delivery Detail:
3 days
Certification ROHS, Other, UL TUV
Display Type Other, Non
Brand Other, PCC
Customized Customized
Transport Package express
Specification PBR380V PTS-13H
Trademark PCC
Origin China

In semiconductor manufacturing, pipeline temperature stability directly impacts process accuracy and yield. Traditional electric heating tapes rely on electronic temperature control systems, which carry risks of sensorfailure or controller malfunction leading to overheating.Gas delivery system heating systems and heating jackets, specifically designed for semiconductor vacuum pipelines and gas delivery systems, ensuring precise temperature control and absolute overheat protection.

Parameters

PTS-13H N220 Manual Reset Thermostat/Temperature Limiter/Circuit Breaker

Type: PTS-13H, SPST, Normally Closed, Manual Reset Type

Rating: AC125V/15A, 250V/10A, 50/60Hz

Operating Temp. -35~250

Dielectric Withstand: AC2900V/sec

Insulation Resistance: More Than 100MΩ

Circuit Resistance: Less Than 100mΩ

Life: 6000 Cycles

Open Temp: 220 ±10

UL, TUV & KTL Certificate

BrandPCC


PRB380V N120 Manual Reset Thermostat/Temperature Limiter/Circuit Breaker

Type: PBR380V, SPST, Normally Closed, Manual Reset Type

Rating: AC125V/16A, 250V/16A, 50/60Hz

Operating Temp. -30~150

Dielectric Withstand: AC2900V/sec

Insulation Resistance: More Than 100MΩ

Circuit Resistance: Less Than 100mΩ

Life: 1000 Cycles

Open Temp: 120 ±

UL, TUV & KTL Certificate

BrandPCC


PRB380V N150 Manual Reset Thermostat/Temperature Limiter/Circuit Breaker

Type: PBR380V, SPST, Normally Closed, Manual Reset Type

Rating: AC125V/16A, 250V/16A, 50/60Hz

Operating Temp. -30~150

Dielectric Withstand: AC2900V/sec

Insulation Resistance: More Than 100MΩ

Circuit Resistance: Less Than 100mΩ

Life: 1000 Cycles

Open Temp: 150 ±

UL, TUV & KTL Certificate

BrandPCC


PRB380VP N160 Manual Reset Thermostat/Temperature Limiter/Circuit Breaker

Type: PBR380V, SPST, Normally Closed, Manual Reset Type

Rating: AC125V/16A, 250V/16A, 50/60Hz

Operating Temp. -30~200

Dielectric Withstand: AC2900V/sec

Insulation Resistance: More Than 100MΩ

Circuit Resistance: Less Than 100mΩ

Life: 1000 Cycles

Open Temp: 160 ±

UL, TUV & KTL Certificate

BrandPCC


PRB380VP N180 Manual Reset Thermostat/ Temperature Limiter/Circuit Breaker

Type: PBR380VP, SPST, Normally Closed, Manual Reset Type

Rating: AC125V/16A, 250V/16A, 50/60Hz

Operating Temp. -30~200

Dielectric Withstand: AC2900V/sec

Insulation Resistance: More Than 100MΩ

Circuit Resistance: Less Than 100mΩ

Life: 1000 Cycles

Open Temp: 180 ±

UL,T UV & KTL Certificate

BrandPCC


PRB380VP N200 Manual Reset Thermostat/ Temperature Limiter/Circuit Breaker

Type: PBR380V, SPST, Normally Closed, Manual Reset Type

Rating: AC125V/16A, 250V/16A, 50/60Hz

Operating Temp. -30~200

Dielectric Withstand: AC2900V/sec

Insulation Resistance: More Than 100MΩ

Circuit Resistance: Less Than 100mΩ

Life: 1000 Cycles

Open Temp: 200 ±

UL, TUV & KTL Certificate

BrandPCC


PTS-12H N240 One-Shot Fuse Thermostat/ Temperature Limiter/Circuit Breaker

Type: PTS-12H, SPST, Normally Closed, One Shot Type

Rating: AC125V/15A, 250V/10A, 50/60Hz

Dielectric Withstand: AC2900V/sec

Insulation Resistance: More Than 100MΩ

Circuit Resistance: Less Than 100mΩ

Life: 1 Cycles

Open Temp: 240 ±10

UL Certificate

BrandPCC

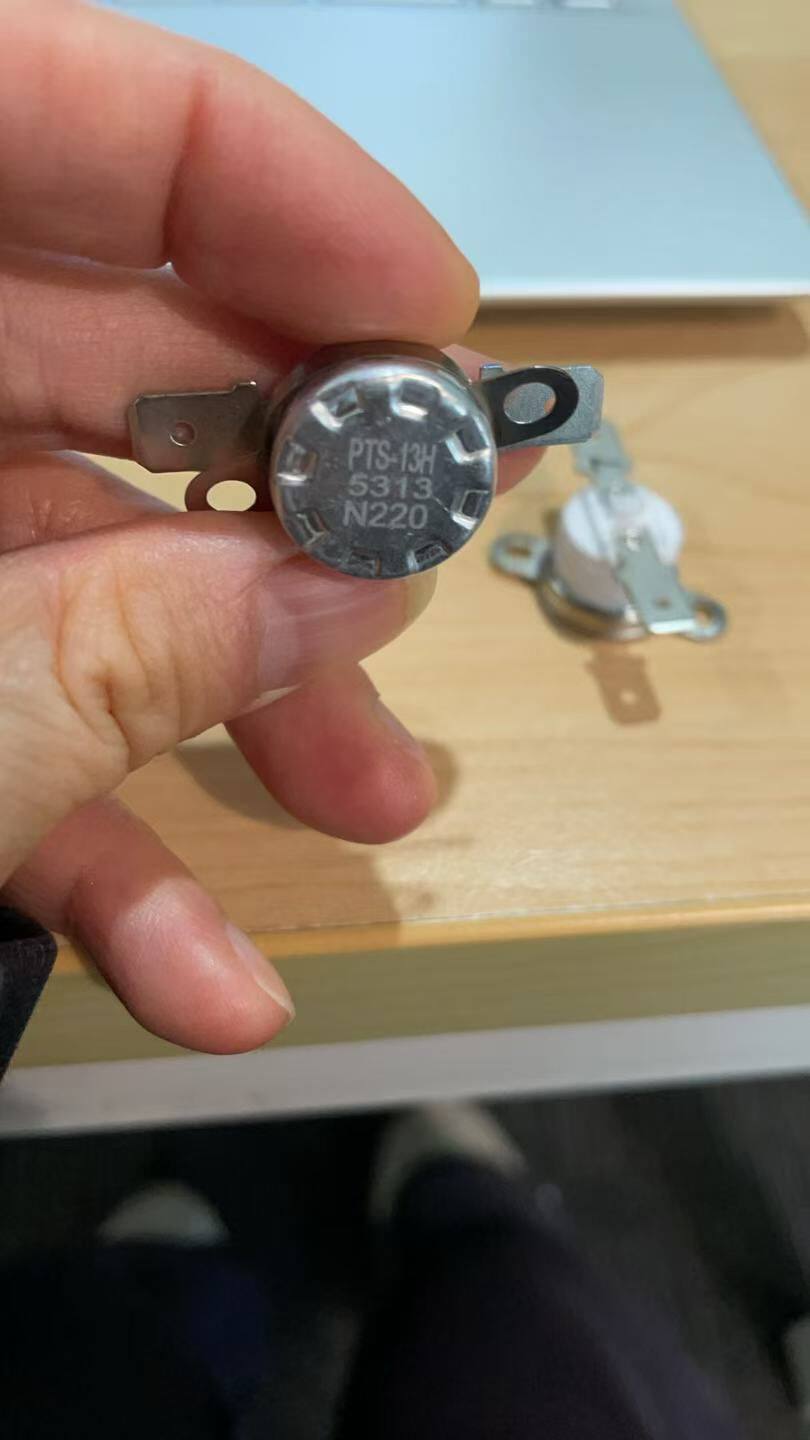

PTS-13H-LY001 N220 (1).jpg

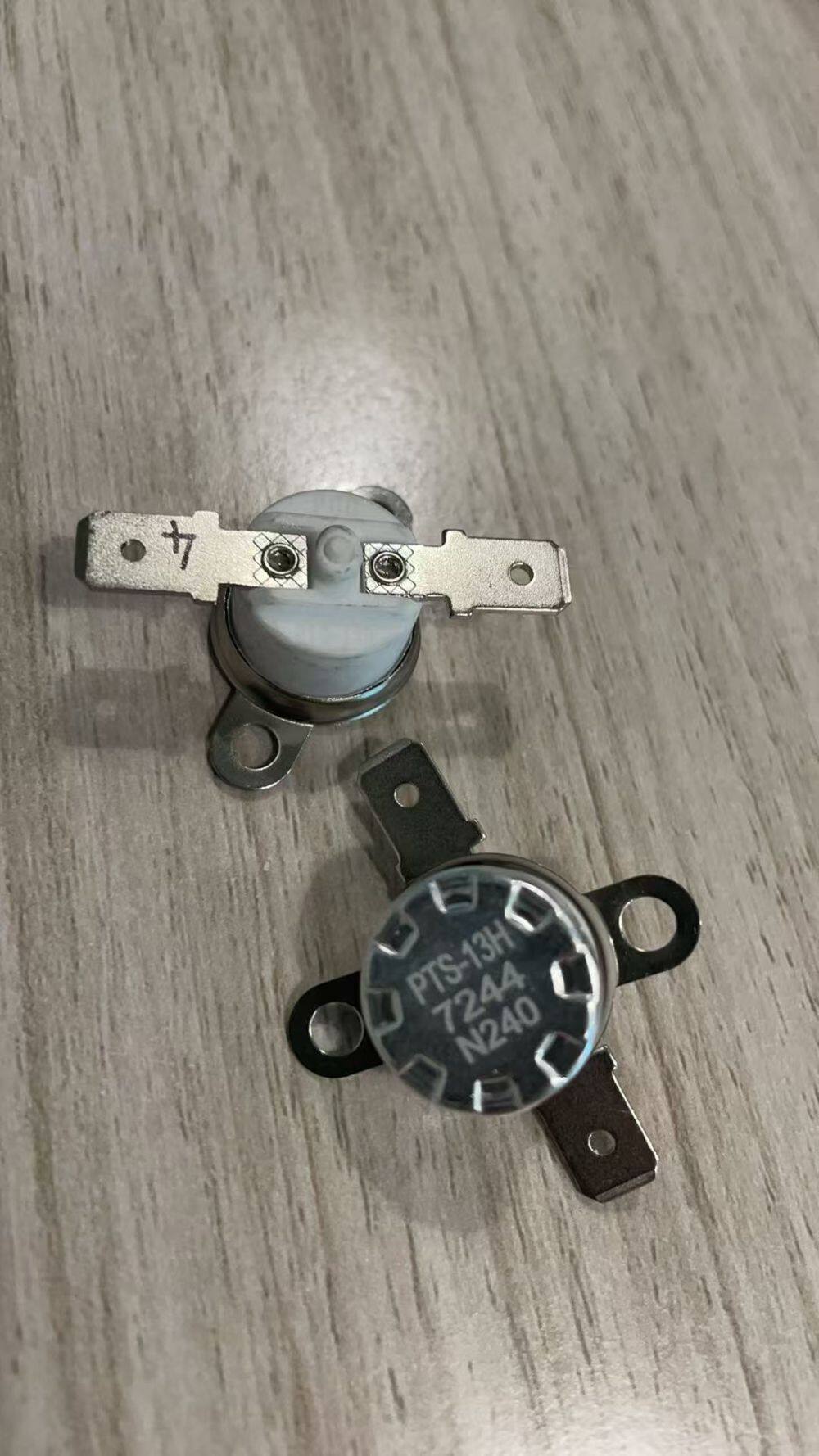

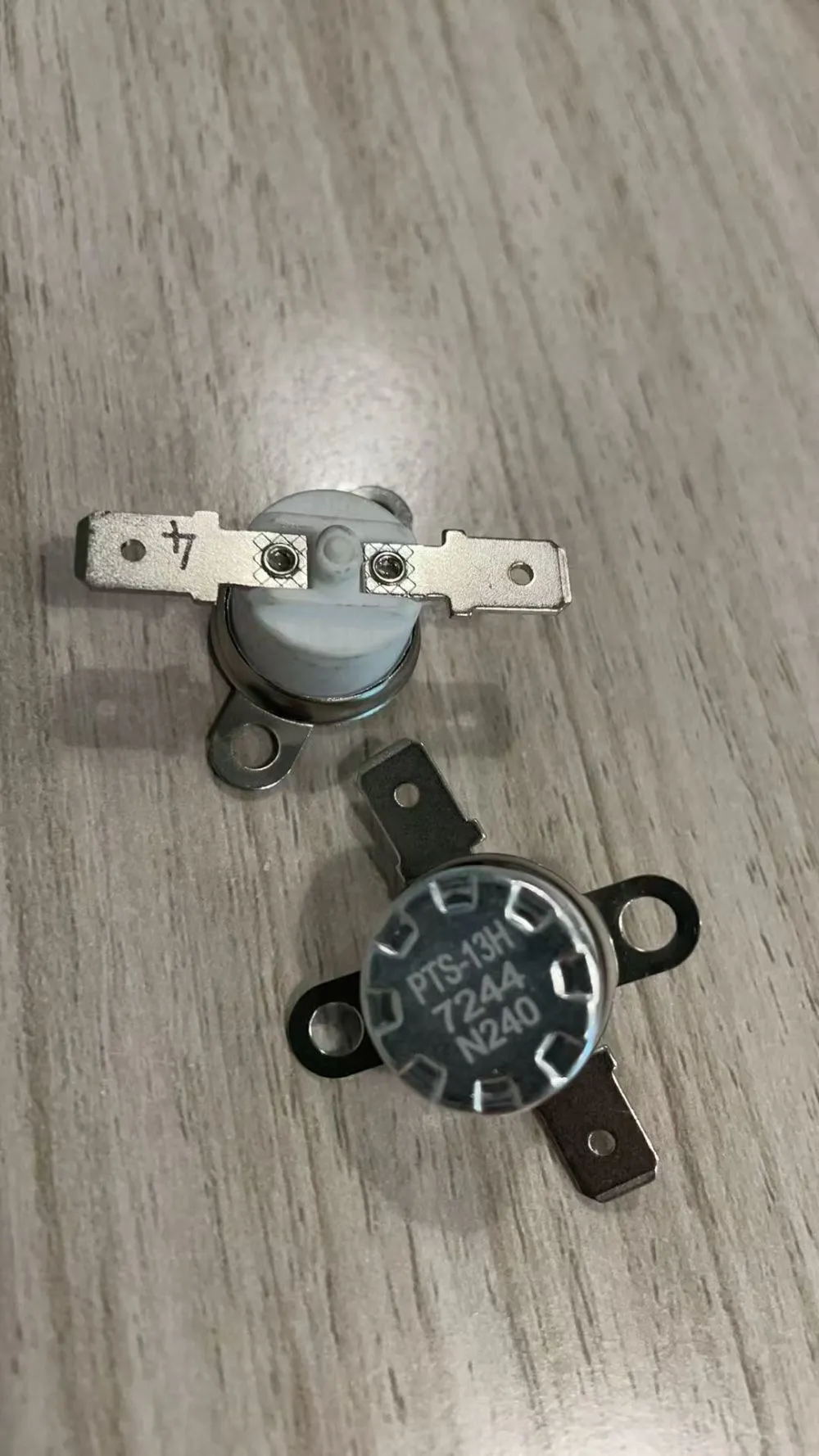

PCC陶瓷温控.jpgPTS-13H N240.jpg
