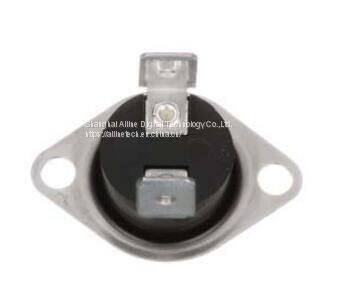

The performance of ESKA Auto Reset Temperature-Switches 36TXE01/36TXE02/36TXE11/36TXE12 is based on an integral bimetallic element that will open or close the circuit according to defined ratings. Temperature switches can be used to reliably control heating and cooling processes.
Rated current: 10 A / 15 A / 16 A
Rated voltage: AC 120 V / AC 250 V
Mounting options: No flange (36TXE01) / Pot flange (36TXE11) / Docking flange (36TXE21)
Approvals: UL CSA VDE CE RoHS
Switching cycles: 100.000 - 10 A & 250V / 15 A & 120 V ; 30.000 - 16 A & 250V
Art. No. Vertical Horizonta Solder Topen (± 3°C) Tclose (± 4°C)
36TXE01 24562 14784 12.5 4
36TXE01 14545 15 5
36TXE01 22677 25 15
36TXE01 12066 29 7
36TXE01 14952 40 30
36TXE02 Auf 4 12.5
36TXE02 Anfrage 5 15
36TXE02 / 15 25
36TXE02 On 7 29
36TXE02 request 30 40
36TXE11 611828 40 25
36TXE11 611830 50 35
36TXE11 611832 Auf 60 45
36TXE11 611834 Anfrage 70 55
36TXE11 611836 80 65
36TXE11 611838 / 90 75
36TXE11 611839 100 85
36TXE11 611840 On 110 95
36TXE11 611841 request 120 105
36TXE11 611842 130 115
36TXE11 611843 140 125
36TXE11 611844 150 115
36TXE11 611845 160 125
36TXE11 611846 170 135
36TXE12 611827 45 60
36TXE12 611829 Auf 55 70
36TXE12 611831 Anfrage 65 80
36TXE12 611833 / 75 90
36TXE12 611835 On 85 100
36TXE12 611837 request 95 110
