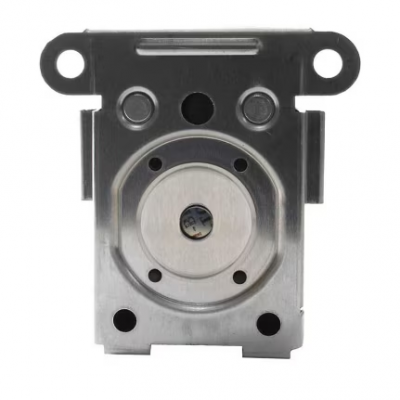

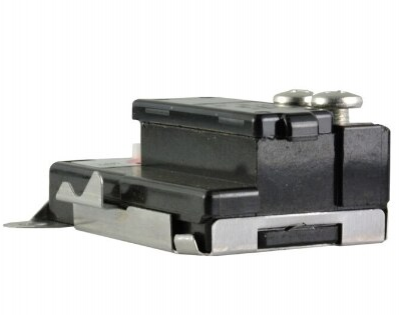

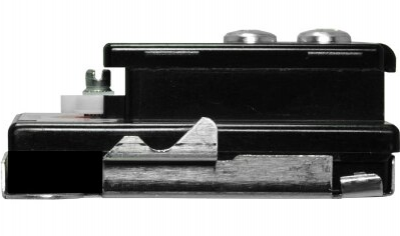

Help CenterTHERM-O-DISC 59T Temperature Controller in Electric Water Heater,240VAC,120VAC ,Certified by UL & VDE
Related Products
-
White-Rodgers 3L11/3F11 Series Bimetal Disc Thermostats for Appliance and HVACNegotiableMOQ: 1000 Pieces -
Therm-O-Disc 59T66T, Include Upper & Lower Element Thermostat, Terminal Protective Covers, Interchangeable With APCOM WH10NegotiableMOQ: 500 Pieces
-
Therm-O-Disc 59T Electric Water Heater Thermostat for Lower Heating Element Interchangeable With APCOM WH9NegotiableMOQ: 500 Pieces
-
Electric Water Heater Thermostat Kit for Double Element System, Includes1* Upper & 1*Lower ThermostatsNegotiableMOQ: 500 Combos
-
THERM-O-DISC 10H14 Thermal Control Normally Closed NC 168 Degrees 250V High Current 25A for SaunasNegotiableMOQ: 200 Pieces
The 59T series THERM-O-DISC thermostat employs snap-action bimetallic strip technology, specifically designed for storage water heaters (e.g., residential/commercial tank-type water heaters) and compatible with solar water heaters, air-source heat pump water heaters, and instant electric water heaters. It delivers high-speed contact response and precise temperature control to maintain stable water temperatures and prevent overheating risks. Engineered for high reliability in demanding environments, the 59T series THERM-O-DISC thermostat is compatible with mainstream models from brands such as Rheem and OSO, ensuring seamless integration and robust performance.
Features:
Temperature range: 90°F( 32°C） to 200°F(93°C) (adjustable over a range of 60°F).
Automatic reset function with SPST/SPDT configurations.
International certifications (UL, CSA, VDE) for safety.
Supports 250V voltage and 25A overload current.
Standard temperature differentials available :
Single pole, single throw = 5-15°F ( 3-8°C)
Single pole, double throw = 17 - 27°F ( 9-15°C)
Applications: Water Heater
Agency Ratings:
UL /CSA (Certificate No. E19279)-----250VAC / 30 amps / 100,000 cycles,277VAC / 25 amps / 100,000 cycles
VDE (Certificate No. 121213)----- 250VAC / 30 amps / 30,000 cycles
Part Numbers:
59T 4000 300529 L80C
59T 4000 300400 L170F
59T 4062 300490 L93C
59T 4090 300500 L150F
59T 4190 300700 L150F
59T 4196 300711 L82C
59T 4196 300709 L82C
59T 4200 300887 L82C
59T 4200 300888 L82C
59T 4235 300842 L90C
59T 4300 301000 L180F
59T 4037 300458 L170C
59T 300484 L70C
59T 300800 L180F
59T 300801 L95C
59T 300825 L80F
59T 300826 L85C
59T 300842 L75C
59T 300846 L95C
59T 300851 L90C
59T 301006 L95C
59T 301011 L180F
Type:
59T 4000 300529 L80C THERM-O-DISC / Thermostat Adjustment Range:80℃-70℃-60℃-50℃
59T 4000 300400 L170F THERM-O-DISC / Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)；
59T 4056 300484 L70C THERM-O-DISC / Thermostat Adjustment Range: 70℃-60℃-50℃-40℃
59T 4062 300490 L93C THERM-O-DISC / Thermostat Adjustment Range:200℉(93℃)-170℉(77℃)-140℉(60℃);
59T 4090 300500 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);
59T 4090 300517 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);
59T 4091 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);
59T 4100 300600 L170F THERM-O-DISC / Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)；
59T 4100 300640 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃)
59T 4190 300700 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);
59T 4196 300711 L82C THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4196 300709 L82C THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);

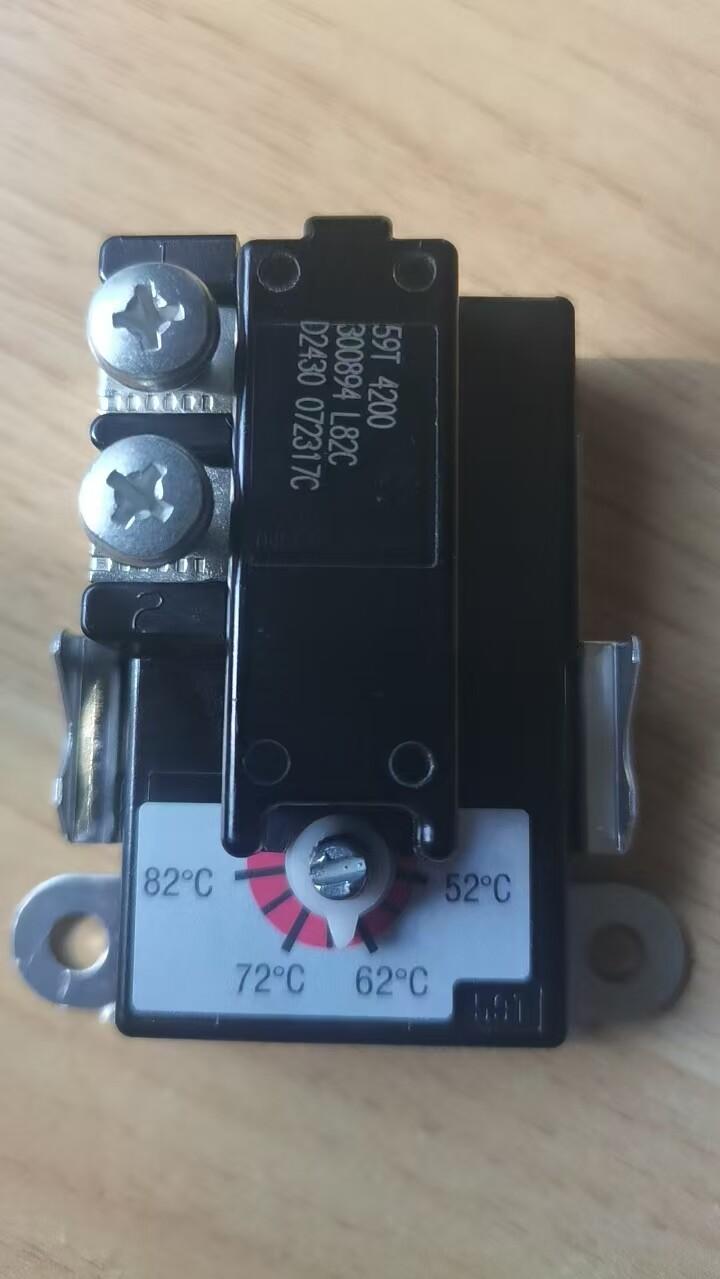

59T 4200 300887 L82C THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4200 300888 L82C THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4224 THERM-O-DISC / Thermostat Adjustment Range:180℉-150℉-120℉;
59T 4235 300842 L90C THERM-O-DISC / Thermostat Adjustment Range:90℃-80℃-70℃-60℃
59T 4300 301000 L180F THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4037 300458 L170F THERM-O-DISC / Thermostat Adjustment Range:HIGH-MED-LOW
59T 300800 L180F THERM-O-DISC / Thermostat Adjustment Range:120℉-180℉;
59T 300801 L95C THERM-O-DISC / Thermostat Adjustment Range:65℃-95℃;
59T 300825 L80F THERM-O-DISC / Thermostat Adjustment Range:50℃-80℃;
59T 300826 L85C THERM-O-DISC / Thermostat Adjustment Range:55℃-85℃;
59T 300842 L75C THERM-O-DISC / Thermostat Adjustment Range:60℃-75℃;
59T 300846 L95C THERM-O-DISC / Thermostat Adjustment Range:65℃-95℃;
59T 300851 L90C THERM-O-DISC / Thermostat Adjustment Range:60℃-90℃;
59T 301006 L95C THERM-O-DISC / Thermostat Adjustment Range:65℃-95℃;
59T 301011 L180F THERM-O-DISC / Thermostat Adjustment Range:120℉-180℉;
59T L170F THERM-O-DISC / Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)
