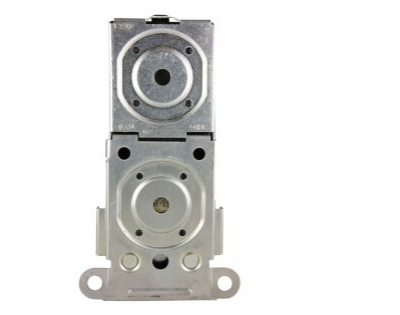

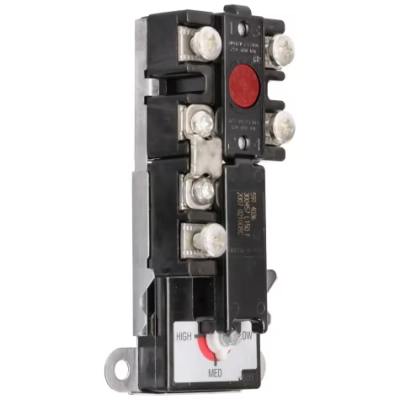

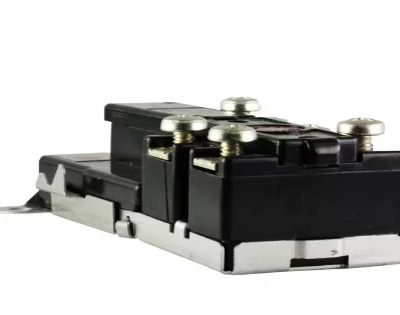

Therm-O-Disc(TOD) 59T66T Electric Water Heater ThermostatsT, include Upper and lower element thermosatat, terminal protective covers, interchangeable with APCOM style, designed to fit most brands of water heaters: Such As Whirlpool, BRADFORD WHITE; CRAFTMASTER; GENERAL ELECTRIC; GS WOOD; KENMORE; LOCHINVAR; A O SMITH; RELIANCE; RHEEM; RICHMOND; RUUD; STATE; MOR-FLO; APCOM
Lower Water Heater Thermostat
The 59T series of adjustable, automatic reset thermostats from THERM-O-DISC is designed to meet the high electrical capacity requirements of electric water heaters. It’s design uses a snap action, temperature sensitive bimetal disc to provide long dependable control life at electric loads up to 30 amps at 250VAC. The 59T can be supplied in combination with our 66T manual reset limit as an industry standard electric water heater temperature control/limit.
Features:
Single pole, single throw or single pole, double throw, open on temperature rise construction
59T mounting tabs snap into industry standard mounting brackets to mount to surface of water heater tank.
Welded construction used on all internal current carrying components for greater electrical integrity10-32 tin plated terminal screws for electrical connections
Temperature Calibration:
The 59T is adjustable over a range of 60°F. The lowest available calibration is 90°F (32°C) and the highest is 200°F (93°C)
Standard temperature differentials available :
Single pole, single throw = 5-15°F ( 3-8°C)
Single pole, double throw = 17 - 27°F ( 9-15°C)
Applications: Water Heater
Agency Ratings:
UL /CSA (Certificate No. E19279)-----250VAC / 30 amps / 100,000 cycles,277VAC / 25 amps / 100,000 cycles
VDE (Certificate No. 121213)----- 250VAC / 30 amps / 30,000 cycles
Model:
59T 4000 300529 L80C THERM-O-DISC / Thermostat Adjustment Range:80℃-70℃-60℃-50℃
59T 4000 300400 L170F THERM-O-DISC / Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)；
59T 4056 300484 L70C THERM-O-DISC / Thermostat Adjustment Range: 70℃-60℃-50℃-40℃
59T 4062 300490 L93C THERM-O-DISC / Thermostat Adjustment Range:200℉(93℃)-170℉(77℃)-140℉(60℃);
59T 4090 300500 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);
59T 4090 300517 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);
59T 4091 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);
59T 4100 300600 L170F THERM-O-DISC / Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)；
59T 4100 300640 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃)
59T 4190 300700 L150F THERM-O-DISC / Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);
59T 4196 300711 L82C THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4196 300709 L82C THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4200 300887 L82C THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4200 300888 L82C THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4224 THERM-O-DISC / Thermostat Adjustment Range:180℉-150℉-120℉;
59T 4235 300842 L90C THERM-O-DISC / Thermostat Adjustment Range:90℃-80℃-70℃-60℃
59T 4300 301000 L180F THERM-O-DISC / Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);
59T 4037 300458 L170F THERM-O-DISC / Thermostat Adjustment Range:HIGH-MED-LOW
59T 300800 L180F THERM-O-DISC / Thermostat Adjustment Range:120℉-180℉;
59T 300801 L95C THERM-O-DISC / Thermostat Adjustment Range:65℃-95℃;
59T 300825 L80F THERM-O-DISC / Thermostat Adjustment Range:50℃-80℃;
59T 300826 L85C THERM-O-DISC / Thermostat Adjustment Range:55℃-85℃;
59T 300842 L75C THERM-O-DISC / Thermostat Adjustment Range:60℃-75℃;
59T 300846 L95C THERM-O-DISC / Thermostat Adjustment Range:65℃-95℃;
59T 300851 L90C THERM-O-DISC / Thermostat Adjustment Range:60℃-90℃;
59T 301006 L95C THERM-O-DISC / Thermostat Adjustment Range:65℃-95℃;
59T 301011 L180F THERM-O-DISC / Thermostat Adjustment Range:120℉-180℉;
59T L170F THERM-O-DISC / Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)
Upper Water Heater Circuit Breaker
The 66T manual reset temperature limiter from Therm-O-Disc offers proven reliability in a compact, versatile, cost-effective design. The snap action of the bimetal disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 40 amps at 277 VAC. The 66T can be supplied in combination with our 59T adjustable water heater control as an industry standard electric water heater temperature control/limit.
Features:
Double pole, single throw (“M2 Trip Free” construction)
Welded construction used on all internal current carrying components for greater electrical integrity
10-32 tin plated terminal screws for electrical connections
66T standard mounting plate designed to interface with our 59T adjustable temperature control
Temperature Calibration:
Max / Min available calibrations:
235°F ( 113°) maximum calibration
160°F ( 71°C) minimum calibration
Applications：Cooking,Heating,Laundry,Coffee Machine,Water Boiler,Electric Water Heater,Electric Boiler
Approvals: UL /CSA -----277 VAC / 40 amps/ 6,000 cycles
VDE----- 400VAC / 30 amps / 30 cycles
250VAC / 40 amps / 30 cycles
480VAC / 16 amps / 100 cycles
250VAC / 30 amps / 100 cycles
Model：
66T 4400 301273 L86C
66T 4400 301200 L190F
66T 4401 301202 L200F
66T 4425 301235 L85C
66T 4435 301247 L98C
66T 4444 301266 L93C
66T 4490 301300 L170F
66T 301204 L103C
66T 301236 L97C
66T 301243 L100C
66T 301246 L100C
66T 301254 L200F

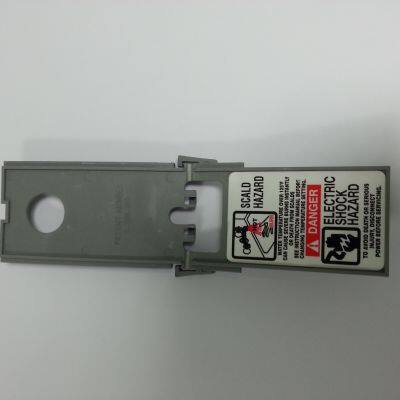

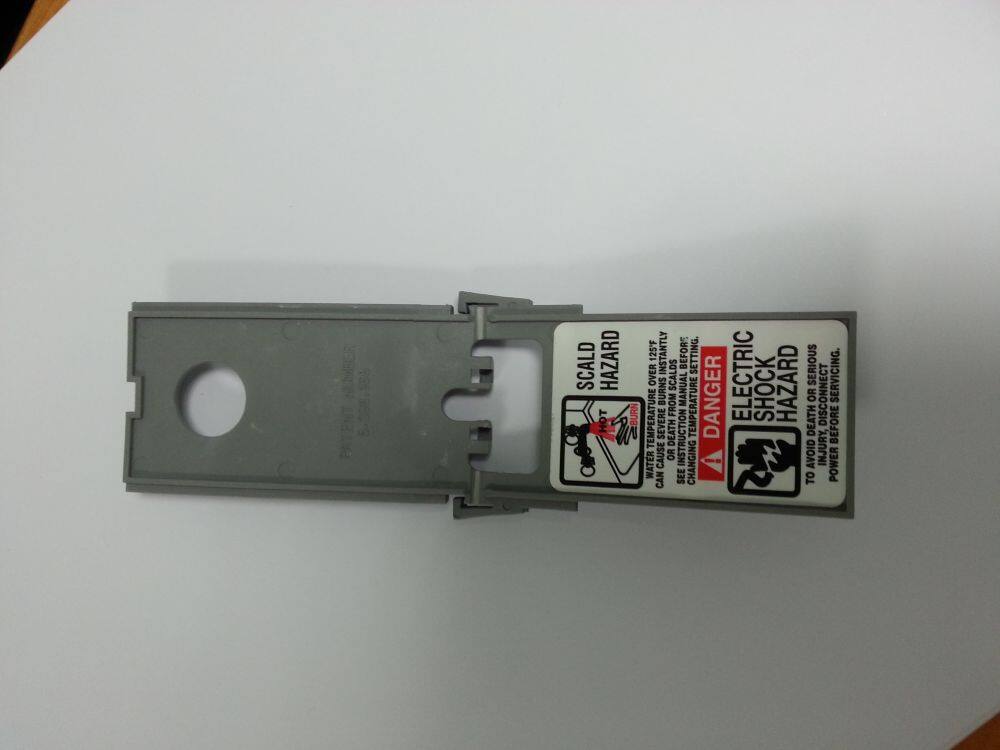

Protective Terminal Covers
