To prevent dust accumulation in gas delivery pipelines during semiconductor manufacturing processes, avoid wafer process delays and equipment downtime, and extend the service life of process waste gas treatment equipment and vacuum pumps, heating jackets equipped with over-temperature protection temperature control switches are used throughout the entire semiconductor manufacturing process.
Models such as PTS-13H N220 and PBR380V(P) are all commonly used over-temperature protection temperature control switches for TSMC's semiconductor process heating jackets.
The specifications of each model are as follows:

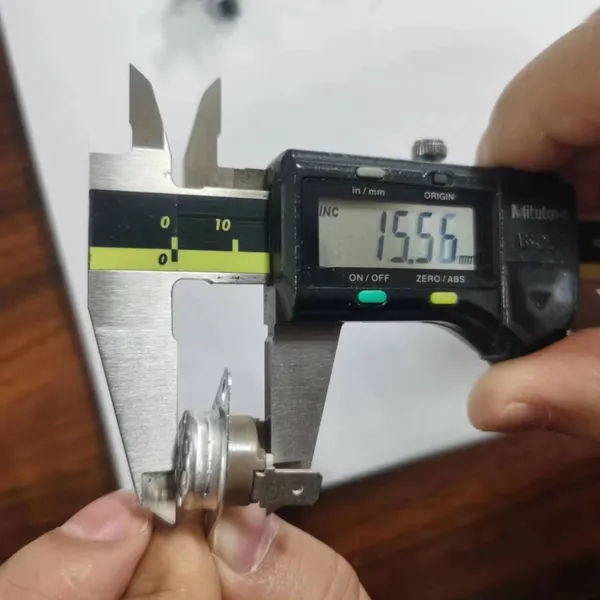

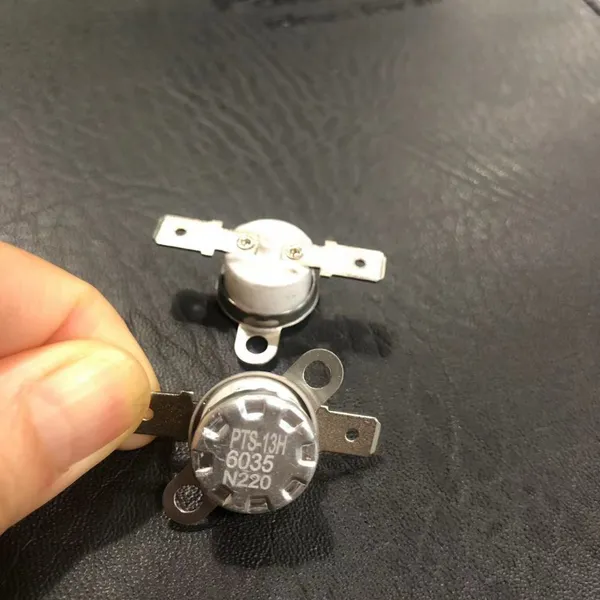

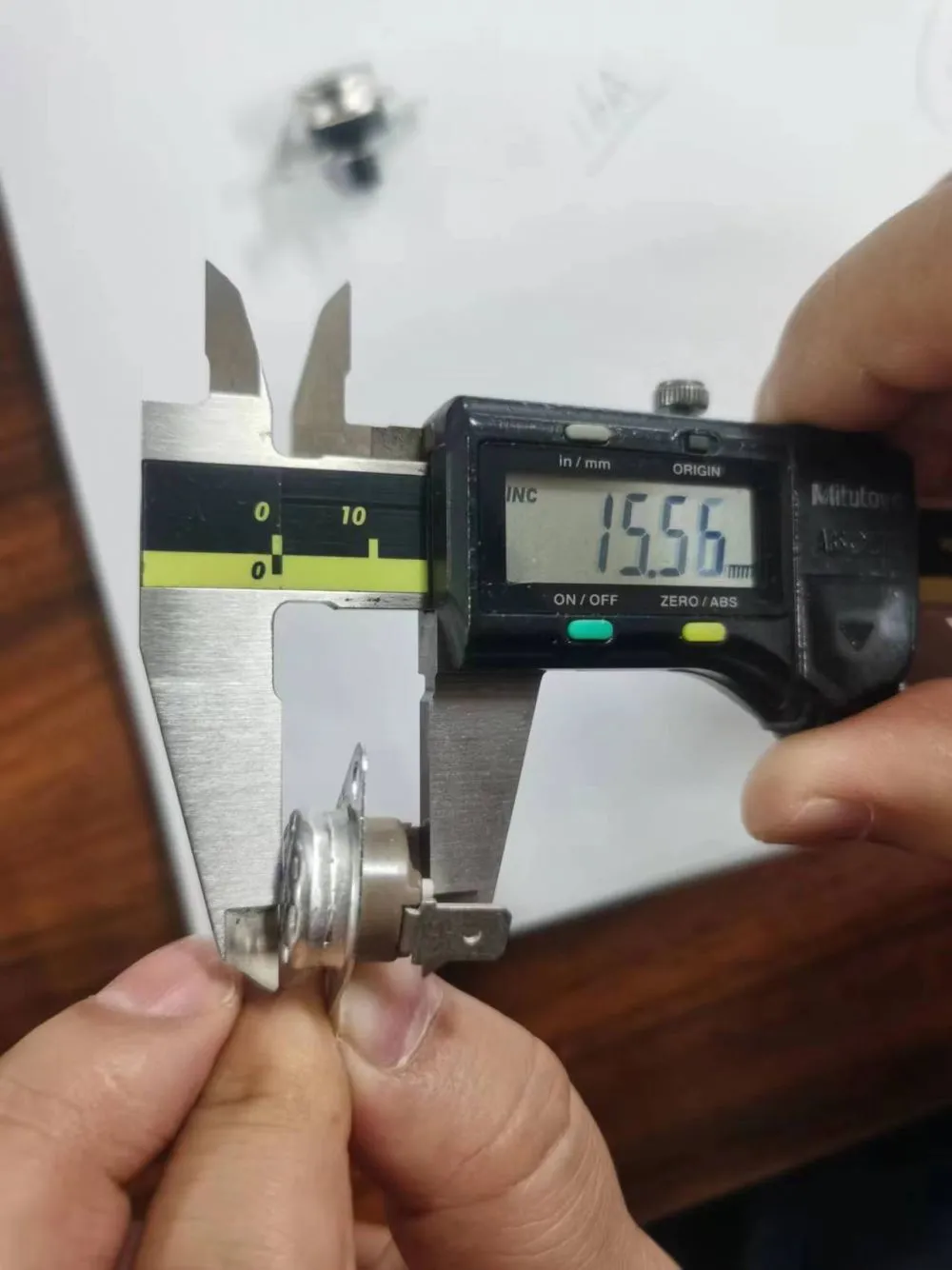

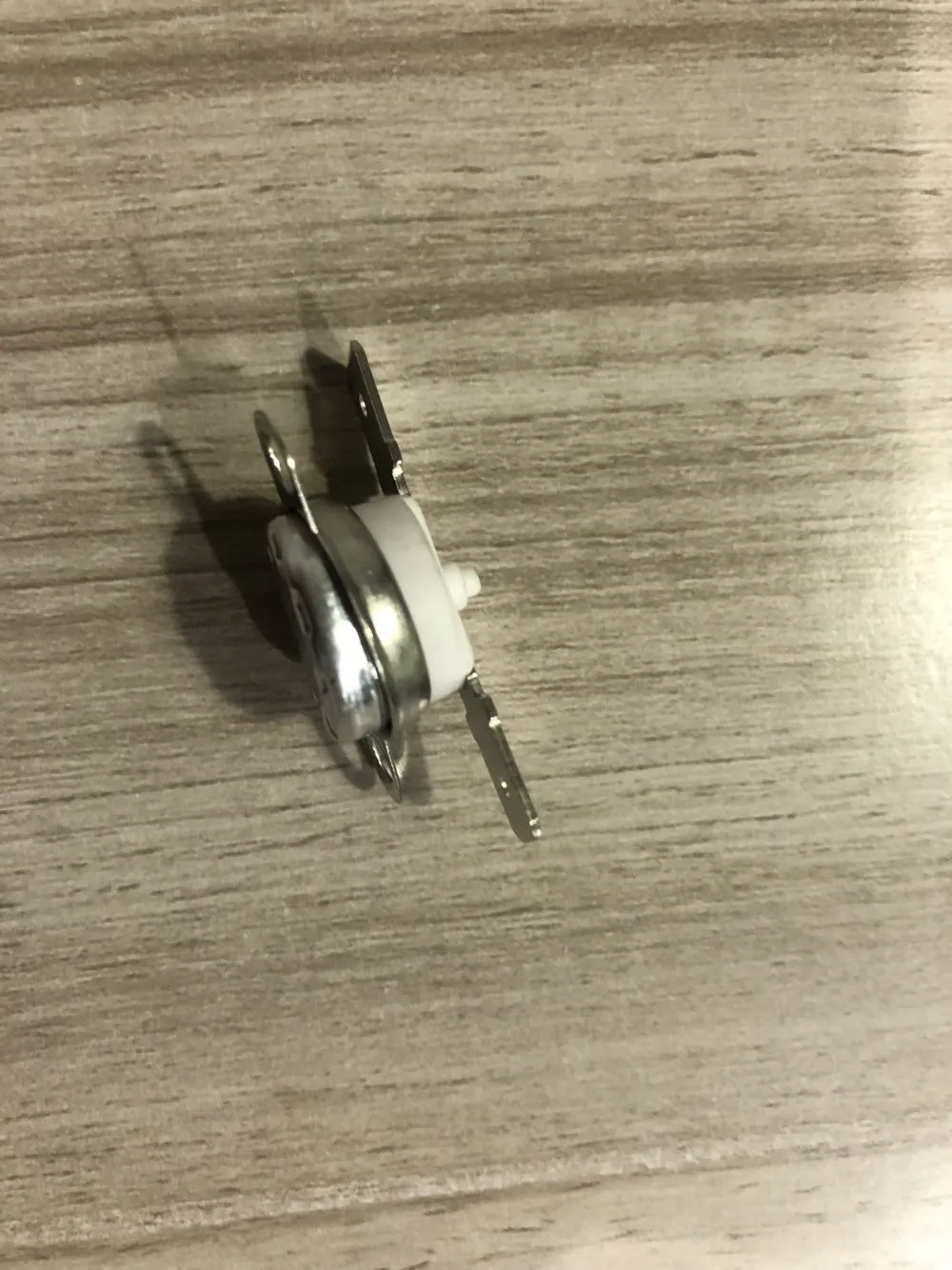

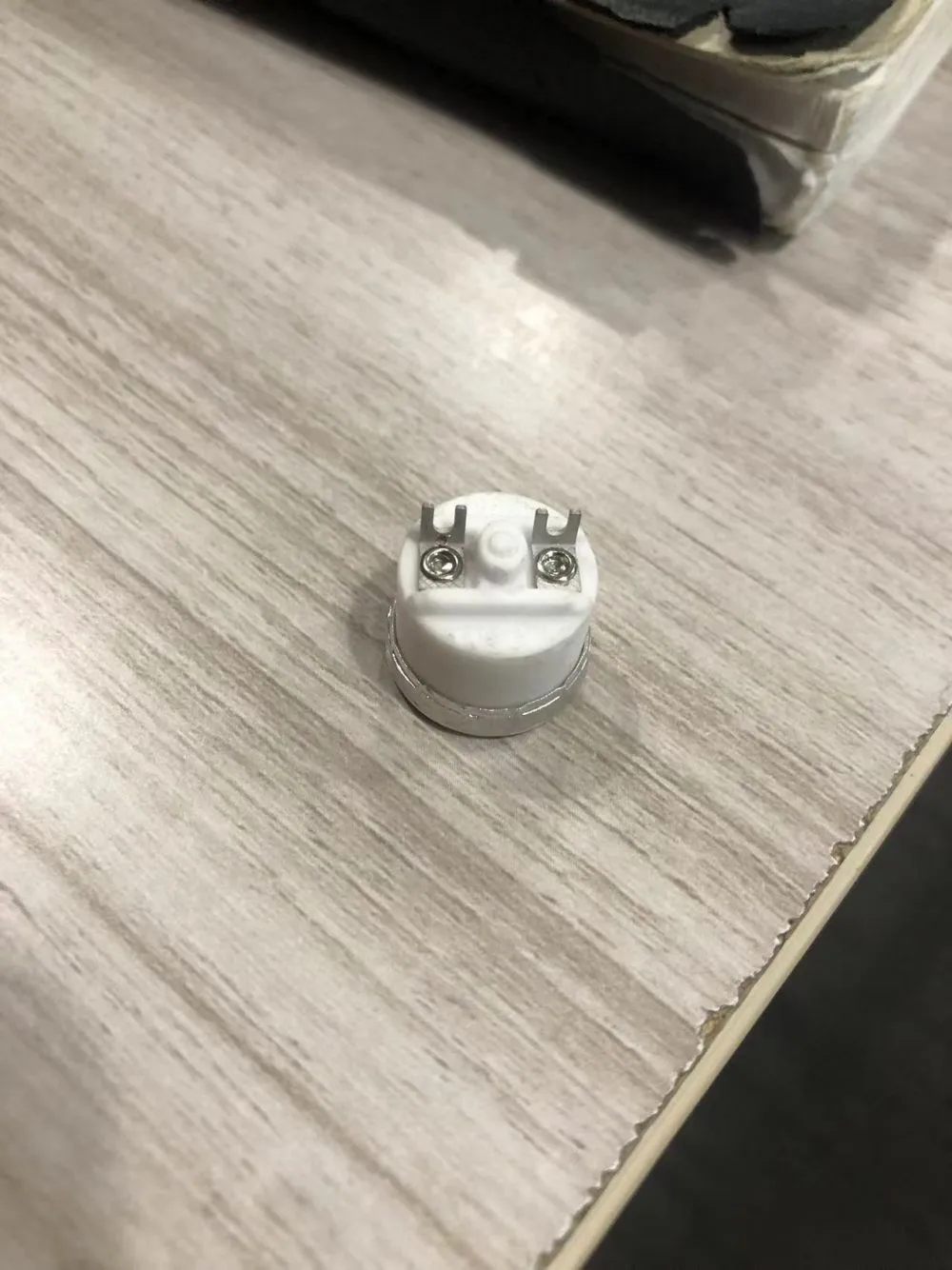

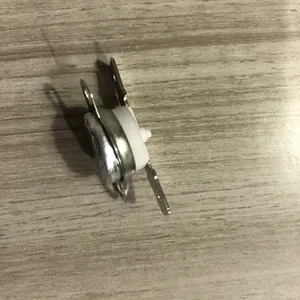

PTS-13H N220 Manual Reset Temperature Limiter/Circuit Breaker/Thermal Limiting
Type: PTS-13H, SPST, Normally Closed, Manual Reset Type
Rating: AC125V/15A, 250V/10A, 50/60Hz
Operating Temp. -35~250℃
Dielectric Withstand: AC2900V/sec
Insulation Resistance: More Than 100MΩ
Circuit Resistance: Less Than 100mΩ
Life: 6000 Cycles
Open Temp: 220 ±10℃
UL, TUV & KTL Certificate
Brand：PCC

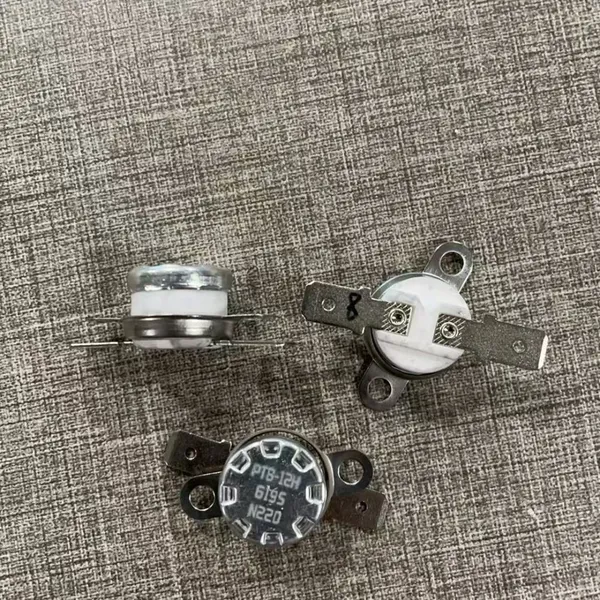

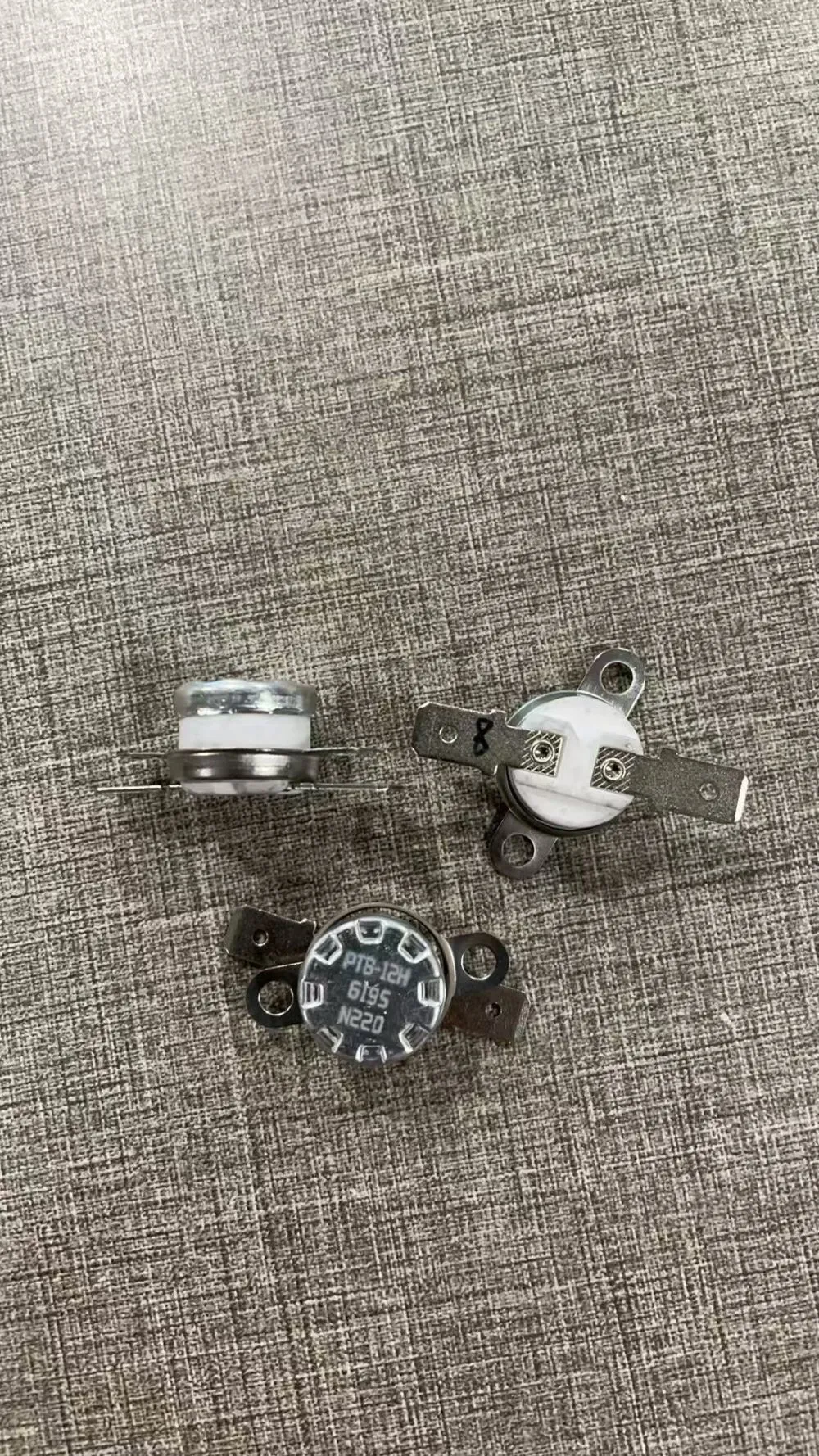

PTS-12H N240 One-Shot Fuse Thermostat/ Temperature Limiter/Circuit Breaker/Thermal Limiting
Type: PTS-12H, SPST, Normally Closed, One Shot Type
Rating: AC125V/15A, 250V/10A, 50/60Hz
Dielectric Withstand: AC2900V/sec
Insulation Resistance: More Than 100MΩ
Circuit Resistance: Less Than 100mΩ
Life: 1 Cycles
Open Temp: 240 ±10 ℃
UL Certificate
Brand：PCC
PRB380V N120 Manual Reset Temperature Limiter/Circuit Breaker/Thermal Limiting
Type: PBR380V, SPST, Normally Closed, Manual Reset Type
Rating: AC125V/16A, 250V/16A, 50/60Hz
Operating Temp. -30~150℃
Dielectric Withstand: AC2900V/sec
Insulation Resistance: More Than 100MΩ
Circuit Resistance: Less Than 100mΩ
Life: 1000 Cycles
Open Temp: 120 ±5 ℃
UL, TUV & KTL Certificate
Brand：PCC
PRB380V N150 Manual Reset Temperature Limiter/Circuit Breaker/Thermal Limiting
Type: PBR380V, SPST, Normally Closed, Manual Reset Type
Rating: AC125V/16A, 250V/16A, 50/60Hz
Operating Temp. -30~150℃
Dielectric Withstand: AC2900V/sec
Insulation Resistance: More Than 100MΩ
Circuit Resistance: Less Than 100mΩ
Life: 1000 Cycles
Open Temp: 150 ±5 ℃
UL, TUV & KTL Certificate
Brand：PCC
PRB380VP N160 Manual Reset Temperature Limiter/Circuit Breaker/Thermal Limiting
Type: PBR380V, SPST, Normally Closed, Manual Reset Type
Rating: AC125V/16A, 250V/16A, 50/60Hz
Operating Temp. -30~200℃
Dielectric Withstand: AC2900V/sec
Insulation Resistance: More Than 100MΩ
Circuit Resistance: Less Than 100mΩ
Life: 1000 Cycles
Open Temp: 160 ±5 ℃
UL, TUV & KTL Certificate
Brand：PCC
PRB380VP N180 Manual Reset Temperature Limiter/Circuit Breaker/Thermal Limiting
Type: PBR380VP, SPST, Normally Closed, Manual Reset Type
Rating: AC125V/16A, 250V/16A, 50/60Hz
Operating Temp. -30~200℃
Dielectric Withstand: AC2900V/sec
Insulation Resistance: More Than 100MΩ
Circuit Resistance: Less Than 100mΩ
Life: 1000 Cycles
Open Temp: 180 ±5 ℃
UL,T UV & KTL Certificate
Brand：PCC
PRB380VP N200 Manual Reset Temperature Limiter/Circuit Breaker/Thermal Limiting
Type: PBR380V, SPST, Normally Closed, Manual Reset Type
Rating: AC125V/16A, 250V/16A, 50/60Hz
Operating Temp. -30~200℃
Dielectric Withstand: AC2900V/sec
Insulation Resistance: More Than 100MΩ
Circuit Resistance: Less Than 100mΩ
Life: 1000 Cycles
Open Temp: 200 ±7 ℃
UL, TUV & KTL Certificate
Brand：PCC
