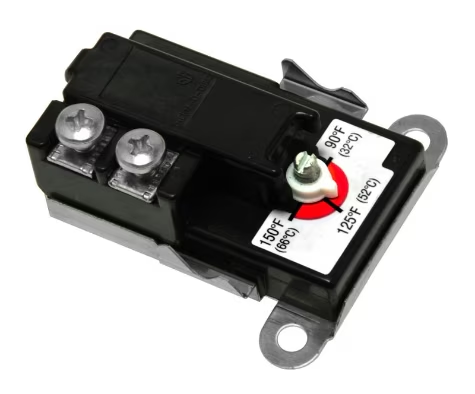

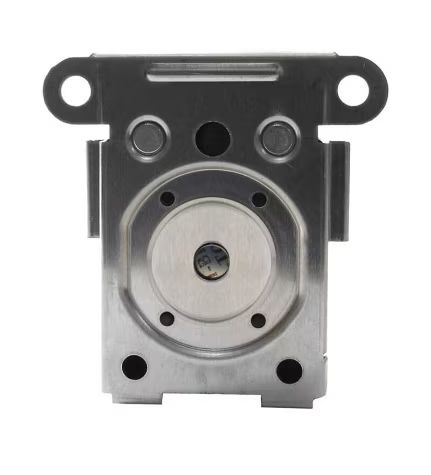

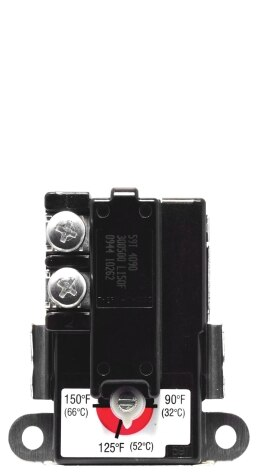

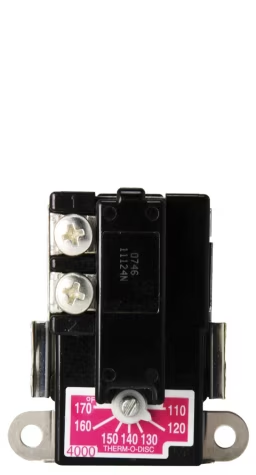

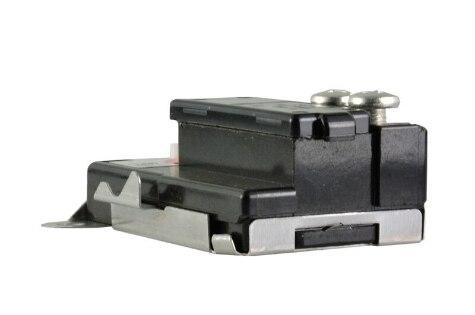

Therm-O-Disc 59T Electric Water Heater Thermostat for Lower Heating Element Interchangeable With APCOM WH9

Therm-O-Disc 59T Electric Water Heater Thermostat for Lower Heating Element Interchangeable with APCOM WH9

Features

Electric loads：

UL /CSA（Certificate No.E19279）-----250VAC / 30 amps / 100,000 cycles；277VAC / 25 amps / 100,000 cycles

VDE（Certificate No.121213）----- 250VAC / 30 amps / 30,000 cycles

Temperature range: 90°F (32°C) To 200°F (93°C) with adjustable slotted knob

Standard temperature differentials available: single pole, single throw: 5-15°F ( 3-8°C)

Product Dimensions: 2.5*2.67*1.02 inches

59T mounting tabs snap into industry standard mounting brackets to mount to surface of water heater tank.

Type

59T 4000 300529 L80C THERM-O-DISC  /  Thermostat Adjustment Range:80℃-70℃-60℃-50℃

59T 4000 300400 L170F THERM-O-DISC /  Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)；

59T 4056 300484  L70C  THERM-O-DISC /  Thermostat Adjustment Range: 70℃-60℃-50℃-40℃

59T 4062 300490 L93C THERM-O-DISC  /  Thermostat Adjustment Range:200℉(93℃)-170℉(77℃)-140℉(60℃);

59T 4090 300500 L150F THERM-O-DISC /  Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);

59T 4090 300517 L150F THERM-O-DISC /  Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);

59T 4091 L150F THERM-O-DISC /  Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);

59T 4100 300600 L170F THERM-O-DISC /  Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)；

59T 4100 300640 L150F THERM-O-DISC /  Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃)

59T 4190 300700 L150F THERM-O-DISC /  Thermostat Adjustment Range:150℉(66℃)-125℉(52℃)-90℉(32℃);

59T 4196 300711 L82C THERM-O-DISC  /  Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);

59T 4196 300709 L82C THERM-O-DISC  /  Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);

59T 4200 300887 L82C THERM-O-DISC  /  Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);

59T 4200 300888 L82C THERM-O-DISC  /  Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);

59T 4224 THERM-O-DISC  /  Thermostat Adjustment Range:180℉-150℉-120℉;

59T 4235 300842 L90C  THERM-O-DISC  /  Thermostat Adjustment Range:90℃-80℃-70℃-60℃

59T 4300 301000 L180F THERM-O-DISC  /  Thermostat Adjustment Range:180℉(82℃)-150℉(66℃)-120℉(49℃);

59T 4037 300458 L170F THERM-O-DISC  /  Thermostat Adjustment Range:HIGH-MED-LOW

59T 300800 L180F THERM-O-DISC  /  Thermostat Adjustment Range:120℉-180℉;

59T 300801 L95C THERM-O-DISC   /  Thermostat Adjustment Range:65℃-95℃;

59T 300825 L80F THERM-O-DISC   /  Thermostat Adjustment Range:50℃-80℃;

59T 300826 L85C THERM-O-DISC   /  Thermostat Adjustment Range:55℃-85℃;

59T 300842 L75C THERM-O-DISC   /  Thermostat Adjustment Range:60℃-75℃;

59T 300846 L95C THERM-O-DISC   /  Thermostat Adjustment Range:65℃-95℃;

59T 300851 L90C THERM-O-DISC   /  Thermostat Adjustment Range:60℃-90℃;

59T 301006 L95C THERM-O-DISC   /  Thermostat Adjustment Range:65℃-95℃;

59T 301011 L180F THERM-O-DISC  /  Thermostat Adjustment Range:120℉-180℉;

59T        L170F THERM-O-DISC  /  Thermostat Adjustment Range:170℉(77℃)-140℉(60℃)-110℉(43℃)
