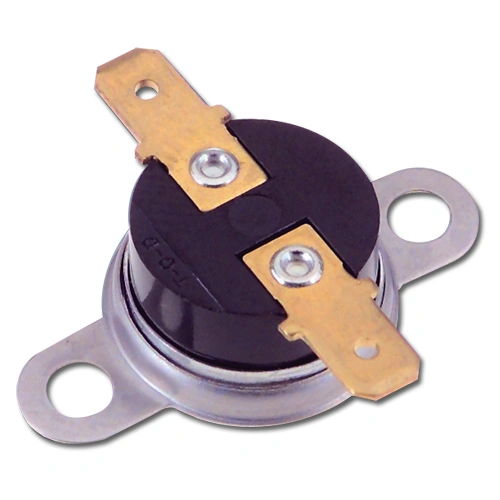

36T Auto Reset Bi-metal Thermostat From Therm-O-Disc/Sensience
Specifications--
Function: Auto Reset
Max Calibration: 177°C / 350°F(Plastic Construction) or 220°C / 428°F( Ceramic Construction)
Max Electrical Amperage: 15A
Electrical Loads: 15A at 120VAC,10A at 250VAC
Plastic or Ceramic Construction
CTI 250 Construction Available
Technology: Safety limits and Controls
Brand: Therm-O-Disc / Sensience
Application: Appliance, HVAC
Approvals (Global Agency Recognition):
UL (File E19279)------ 120VAC 15A (100,000cycles) / 240VAC 10A (100,000cycles)
CSA (File LR77886/LR109556)------ 120VAC 15A (100,000cycles) / 240VAC 10A (100,000cycles)
VDE License 118631------ 250VAC 10A (100,000cycles) / 250VAC 16A (30,000cycles) / 400VAC 10A (10,000cycles)
MITI (Japan)------ 250VAC 15A (10000cycles)
Switch Actions
The 36T is available in three single pole, single throw (SPST) switch actions:
Automatic Reset – Can be built to either open or close its contacts on temperature rise.
Mounting Configurations:
No Mounting Bracket
Surface Mount Bracket
Airstream Mount
M4*0.7mm Stud Mount
Types:
T-O-D 36T01,T-O-D 36T02, T-O-D 36T11,T-O-D 36T12,T-O-D 36T21,T-O-D 36T22,T-O-D 36T31,T-O-D 36T32
T-O-D 36TE01,T-O-D 36TE02,T-O-D 36TE11,T-O-D 36TE12,T-O-D 36TE21,T-O-D 36TE22,T-O-D 36TE31,T-O-D 36TE32
T-O-D 36TH01,T-O-D 36TH02,T-O-D 36TH11,T-O-D 36TH12,T-O-D 36TH21,T-O-D 36TH22,T-O-D 36TH31,T-O-D 36TH32,
T-O-D 36TX01,T-O-D 36TX02,T-O-D 36TX11,T-O-D 36TX12,T-O-D 36TX21,T-O-D 36TX22,T-O-D 36TX31,T-O-D 36TX32,
T-O-D 36TXH01,T-O-D 36TXH02,T-O-D 36TXH11,T-O-D 36TXH12,T-O-D 36TXH21,T-O-D 36TXH22,T-O-D 36TXH31,T-O-D 36TXH32,
T-O-D 36TXE01,T-O-D 36TXE02,T-O-D 36TXE11,T-O-D 36TXE12,T-O-D 36TXE21,T-O-D 36TXE22T-O-D 36TXE31,T-O-D 36TXE32,
T-O-D 36THE01,T-O-D 36THE02,T-O-D 36THE11,T-O-D 36THE12,T-O-D 36THE21,T-O-D 36THE22,T-O-D 36THE31,T-O-D 36THE32,
T-O-D 36THXE01,T-O-D 36THXE02,T-O-D 36THXE11,T-O-D 36THXE12,T-O-D 36THXE21,T-O-D 36THXE22,T-O-D 36THXE31,T-O-D 36THXE32,
T-O-D 36TM01,T-O-D 36TM02,T-O-D 36TM11,T-O-D 36TM12,T-O-D 36TM21,T-O-D 36TM22,T-O-D 36TM31,T-O-D 36TM32,
T-O-D 36TME01,T-O-D 36TME02,T-O-D 36TME11,T-O-D 36TME12,T-O-D 36TME21,T-O-D 36TME22,T-O-D 36TME31,T-O-D 36TME32,
T-O-D 36TMH01,T-O-D 36TMH02,T-O-D 36TMH11,T-O-D 36TMH12,T-O-D 36TMH21,T-O-D 36TMH22,T-O-D 36TMH31,T-O-D 36TMH32,
T-O-D 36TMHE01,T-O-D 36TMHE02,T-O-D 36TMHE11,T-O-D 36TMHE12,T-O-D 36TMHE21,T-O-D 36TMHE22,T-O-D 36TMHE31,T-O-D 36TMHE32,
For Examples:
36T22 11816 F30-15C
36TX02 21861 F180-40F 29-017031-A
36T01 566548 L-4-11C
36T02 566549 F-4-11C
36T11 L70-20C
36THE21 566281 L70-20C
36TMH21 L70-20C
36TMH21 L65-15C
36TXHE21 566099 L85-10C
36TMH01 566400 L105-20C
36T****6 Manual Reset Thermostat From Therm–O–Disc/Sensience
Specifications--
Function: Manual Reset
Max Calibration: 177°C / 350°F(Plastic Construction) or 220°C / 428°F( Ceramic Construction)
Max Electrical Amperage: 15A
Electrical Loads: 15A at 120VAC,10A at 250VAC
Minimum Manual Reset -31°F (-35°C)
Plastic or Ceramic Construction
Technology: Safety limits and Controls
Brand: Therm-O-Disc / Sensience
Application: Appliance, HVAC
Mounting Configurations:
No Mounting Bracket
Surface Mount Bracket
Airstream Mount
M4*0.7mm Stud Mount
Approvals (Global Agency Recognition):
UL(File E19279)------ 120VAC 15A (6000cycles) / 240VAC 10A (6000cycles)
VDE License 118631------ 250VAC 16A (300cycles) / 400VAC 10A (300cycles)
MITI (Japan)------ 250VAC 10A (5000cycles) / 250VAC 5A (10000cycles) / 120VAC 10A (10000cycles)
Types:
T-O-D 36T06 , T-O-D 36T16 , T-O-D 36T26 , T-O-D 36T36 ,
T-O-D 36TE06 , T-O-D 36TE16 , T-O-D 36TE26 , T-O-D 36TE36 ,
T-O-D 36TH06 , T-O-D 36TH16 , T-O-D 36TH26 , T-O-D 36TH36 ,
T-O-D 36TX06 , T-O-D 36TX16 , T-O-D 36TX26 , T-O-D 36TX36 ,
T-O-D 36TXH06 , T-O-D 36TXH16 , T-O-D 36TXH26 , T-O-D 36TXH36 ,
T-O-D 36TXE06 , T-O-D 36TXE16 , T-O-D 36TXE26 , T-O-D 36TXE36 ,
T-O-D 36THE06 , T-O-D 36THE16 , T-O-D 36THE26 , T-O-D 36THE36 ,
T-O-D 36THXE06 , T-O-D 36THXE16 , T-O-D 36THXE26 , T-O-D 36THXE36 ,
T-O-D 36TM06 , T-O-D 36TM16 , T-O-D 36TM26 , T-O-D 36TM36 ,
T-O-D 36TME06 , T-O-D 36TME16 , T-O-D 36TME26 , T-O-D 36TME36 ,
T-O-D 36TMH06 , T-O-D 36TMH16 , T-O-D 36TMH26 , T-O-D 36TMH36 ,
T-O-D 36TMHE06 , T-O-D 36TMHE16 , T-O-D 36TMHE26 , T-O-D 36TMHE36 ,
T-O-D 36F06 , T-O-D 36F16 , T-O-D 36F26 , T-O-D 36F36 ,
T-O-D 36FE06 , T-O-D 36FE16 , T-O-D 36FE26 , T-O-D 36FE36 ,
T-O-D 36FH06 , T-O-D 36FH16 , T-O-D 36FH26 , T-O-D 36FH36 ,
T-O-D 36FX06 , T-O-D 36FX16 , T-O-D 36FX26 , T-O-D 36FX36 ,
T-O-D 36FXH06 , T-O-D 36FXH16 , T-O-D 36FXH26 , T-O-D 36FXH36 ,
T-O-D 36FXE06 , T-O-D 36FXE16 , T-O-D 36FXE26 , T-O-D 36FXE36 ,
T-O-D 36FHE06 , T-O-D 36FHE16 , T-O-D 36FHE26 , T-O-D 36FHE36 ,
T-O-D 36FHXE06 , T-O-D 36FHXE16 , T-O-D 36FHXE26 , T-O-D 36FHXE36 ,
T-O-D 36FTM06 , T-O-D 36FM16 , T-O-D 36FM26 , T-O-D 36FM36 ,
T-O-D 36FME06 , T-O-D 36FME16 , T-O-D 36FME26 , T-O-D 36FME36 ,
T-O-D 36FMH06 , T-O-D 36FMH16 , T-O-D 36FMH26 , T-O-D 36FMH36 ,
T-O-D 36FMHE06 , T-O-D 36FMHE16 , T-O-D 36FMHE26 , T-O-D 36FMHE36
For Examples:

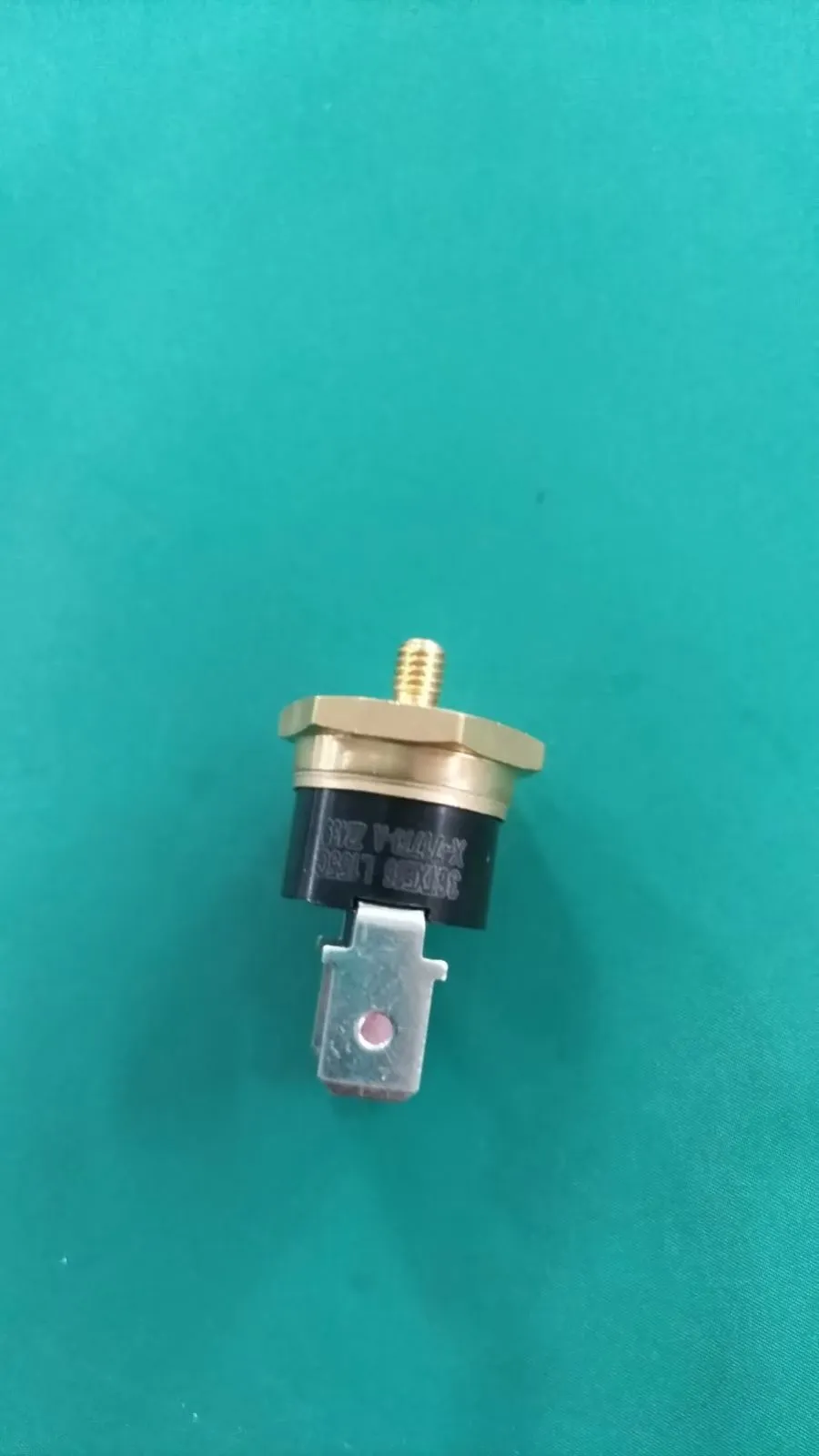

36TXE26 561521 L110C
36TXE26 611853 L160C
36TXE36 561569 L110C
36TXHE06 623-00064 L95C
36TXHE16 561561 L210C
36F Fuse Thermostat From Therm–O–Disc/Sensience
The 36F fuse thermostat is a single operation version of the 36T. Once the electrical contacts have opened, they will not reclose unless the ambient temperature drops below +32°F (0°C), or below -31°F (-35°C).
Specifications--
Function: One-Shot Fuse
Max Calibration: 177°C / 350°F(Plastic Construction) or 220°C / 428°F( Ceramic Construction)
Max Electrical Amperage: 15A
Electrical Loads: 15A at 120VAC,10A at 250VAC
Plastic or Ceramic Construction
Technology: Safety limits and Controls
Brand: Therm-O-Disc / Sensience
Application: Appliance, HVAC，Smart Toilet
Approvals:
UL(File E19279)------ 120VAC 15A (1 cycle) / 240VAC 10A (1 cycle)
VDE License 118631------ 250VAC 16A (1 cycle) / 400VAC 10A (1 cycle)
Mounting Configurations:
No Mounting Bracket
Surface Mount Bracket
Airstream Mount
M4*0.7mm Stud Mount
Types:
T-O-D 36F01,T-O-D 36F04,T-O-D 36F11,T-O-D 36F14,T-O-D 36F21,T-O-D 36F24,,T-O-D 36F31,T-O-D 36F34,
T-O-D 36FE01,T-O-D 36FE04,,T-O-D 36FE11,T-O-D 36FE14,T-O-D 36FE21,T-O-D 36FE24,T-O-D 36FE31,T-O-D 36FE34,
T-O-D 36FH01,T-O-D 36FH04,T-O-D 36FH11,T-O-D 36FH14,T-O-D 36FH21,T-O-D 36FH24,T-O-D 36FH31,T-O-D 36FH34,
T-O-D 36FX01,T-O-D 36FX04,T-O-D 36FX11,T-O-D 36FX14,T-O-D 36FX21,T-O-D 36FX24,T-O-D 36FX31,T-O-D 36FX34,
T-O-D 36FXH01,T-O-D 36FXH04,T-O-D 36FXH11,T-O-D 36FXH14,T-O-D 36FXH21,T-O-D 36FXH24,T-O-D 36FXH31,T-O-D 36FXH34,
T-O-D 36FXE01,T-O-D 36FXE04,T-O-D 36FXE11,T-O-D 36FXE14,T-O-D 36FXE21,T-O-D 36FXE24,T-O-D 36FXE31,T-O-D 36FXE34,
T-O-D 36FHE01,T-O-D 36FHE04T-O-D 36FHE11,T-O-D 36FHE14,T-O-D 36FHE21,T-O-D 36FHE24,T-O-D 36FHE31,T-O-D 36FHE34,
T-O-D 36FHXE01,T-O-D 36FHXE04,TT-O-D 36FHXE11,T-O-D 36FHXE14,T-O-D 36FHXE21,T-O-D 36FHXE24,T-O-D 36FTHXE31,T-O-D 36FHXE34,
T-O-D 36FM01,T-O-D 36FM04,T-O-D 36FM11,T-O-D 36FM14,T-O-D 36FM21,T-O-D 36FM24,T-O-D 36FM31,T-O-D 36FM34,
T-O-D 36FME01,T-O-D 36FME04,T-O-D 36FME11,T-O-D 36FME14,T-O-D 36FME21,T-O-D 36FME24,T-O-D 36FME31,T-O-D 36FME34,
T-O-D 36FMH01,T-O-D 36FMH04,T-O-D 36FMH11,T-O-D 36FMH14,T-O-D 36FMH21,T-O-D 36FMH24,,T-O-D 36FMH31,T-O-D 36FMH34,
T-O-D 36FMHE01,T-O-D 36FMHE04,T-O-D 36FMHE11,T-O-D 36FMHE14,,T-O-D 36FMHE21,T-O-D 36FMHE24,T-O-D 36FMHE31,T-O-D 36FMHE34
For Examples:
36FX24 20268 L290F 241D1317P008
36FME04 20205 L70C
36FMH06 560970 L115C

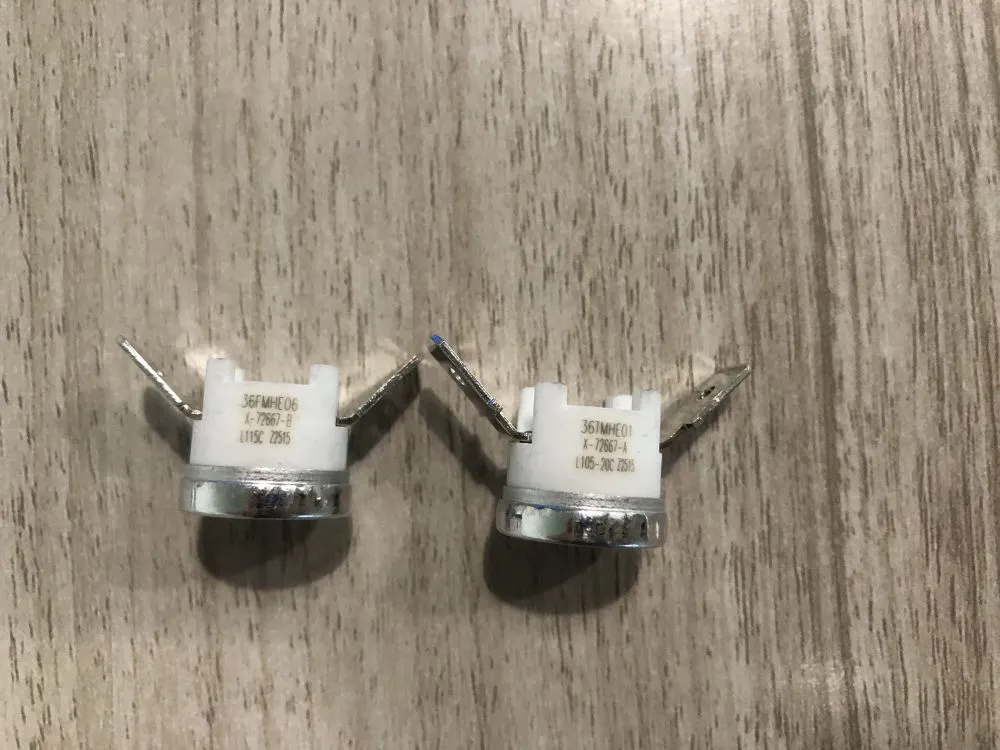

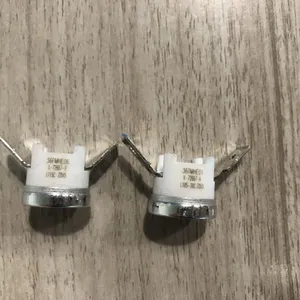

36FMHE06 620-00021 L165C
