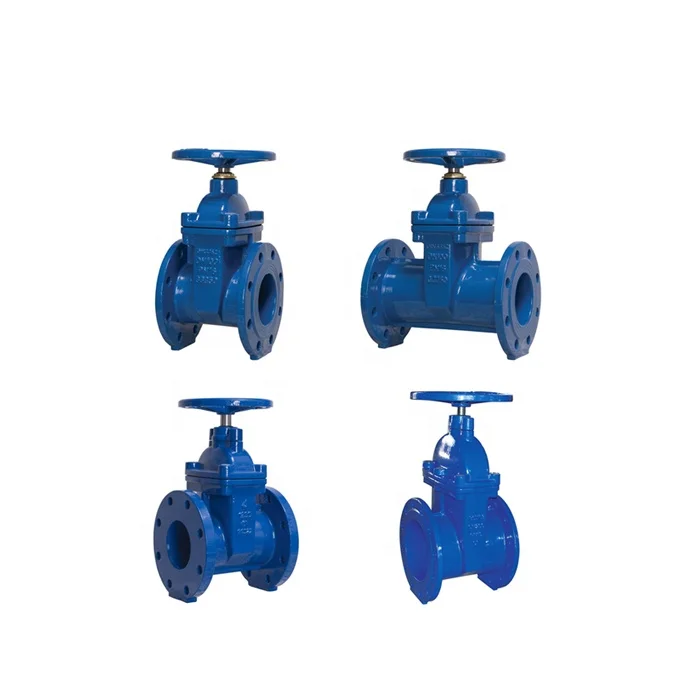

Help CenterDIN PN10 PN16 Ductile Cast Iron GGG50 Hand Wheel Resilient Seated Water Seal Gate Valve
Related Products
-
DIN 3352 F4 4 Inch Ductile Cast Iron Resilient Seat or Brass Seat Gate Valve Flanged Gate ValveNegotiableMOQ: 50 Pieces -
High Quality Ductile Iron Body PN16 DN50-DN1600 Slurry Knife Sluice Gate ValveNegotiableMOQ: 50 Pieces
-
AWWA C509, C515 Ductile Iron Non- Rising Stem Resilient Seated Sluice Gate ValveNegotiableMOQ: 50 Pieces
-
Ductile Iron Resilient Seated NRS Plain End Gate Valve For PVC,PE,Ductile Iron PipeNegotiableMOQ: 50 Pieces
-
DIN/BS/AWWA Double Flange Ductile Iron Sluice Valve With Resilient SeatNegotiableMOQ: 50 Pieces
Standard | DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509 ,AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10,PN16,PN25 |
Type | Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem |
Material | Body: Ductile iron GGG40/50 or Cast IronGG25 Wedge : Ductile iron GGG40/50+EPDM/NBR or metal seated Stem: stainless steel 2Cr13 , SS304,SS316 Bolt and Nuts : Carbon Steel with zinc plated or SS304,316 |
Coating | Internal and external with fusion bonded epoxy coating min250μm |
Applications
This valve widely applied in the liquid pipes for opening or closing fixing in such water, sewage disposal, electric power, energetics pipe , chemical, shipping, energy sources etc.
Applicable Standards
a.American Standard
Design to ANSI/AWWA C509
Face to face dimension to ASME B16.10-2000(ISO 3 series)
Flange and drilling To SME/ANSI B16.42-1998
b.British Standard
Design to BS5163,BS5150
Face to face dimension to BS5163(ISO 3series,ISO19 series)
Flange and drilling To BS4504 part1(EN1092)
c.Germany Standard
Design to DIN3352
Face to face dimension to DIN3202(F4:ISO 14 series;F5: ISO 15 series)
Flange and drilling to BS EN1092
| DN | L | D | D1 | D2 | b | f | n-d | H | W |
|---|---|---|---|---|---|---|---|---|---|
| 50 | 178 | 150 | 114 | 90 | 18 | 3 | 4-18 | 270 | 180 |
| 65 | 190 | 165 | 127 | 103 | 18 | 3 | 4-18 | 280 | 180 |
| 80 | 203 | 185 | 146 | 122 | 18 | 3 | 4-18 | 290 | 200 |
| 100 | 229 | 215 | 178 | 154 | 20 | 3 | 4-18 | 315 | 200 |
| 150 | 267 | 280 | 235 | 211 | 23 | 3 | 8-18 | 410 | 280 |
| 200 | 292 | 335 | 292 | 268 | 23 | 3 | 8-18 | 515 | 320 |
| 225 | 330 | 405 | 324 | 300 | 24 | 3 | 8-18 | 560 | 320 |
| 250 | 330 | 405 | 356 | 328 | 24 | 3 | 8-22 | 605 | 320 |
| 300 | 356 | 455 | 406 | 378 | 30 | 4 | 12-22 | 695 | 450 |
| 350 | 381 | 525 | 470 | 438 | 33 | 4 | 12-26 | 790 | 450 |
| 375 | 406 | 580 | 795 | 463 | 33 | 4 | 12-26 | 880 | 450 |
| 400 | 406 | 580 | 521 | 489 | 33 | 4 | 12-26 | 970 | 560 |
| 450 | 432 | 640 | 584 | 552 | 33 | 4 | 12-26 | 1045 | 560 |
| 500 | 457 | 705 | 641 | 609 | 35 | 4 | 16-26 | 1120 | 800 |
| 600 | 508 | 825 | 756 | 720 | 42 | 5 | 16-30 | 1320 | 800 |
